66 Options Guide RX200 S6
Expansion cards and iBBU
Connecting iBBU cable to RAID controller in riser card #2

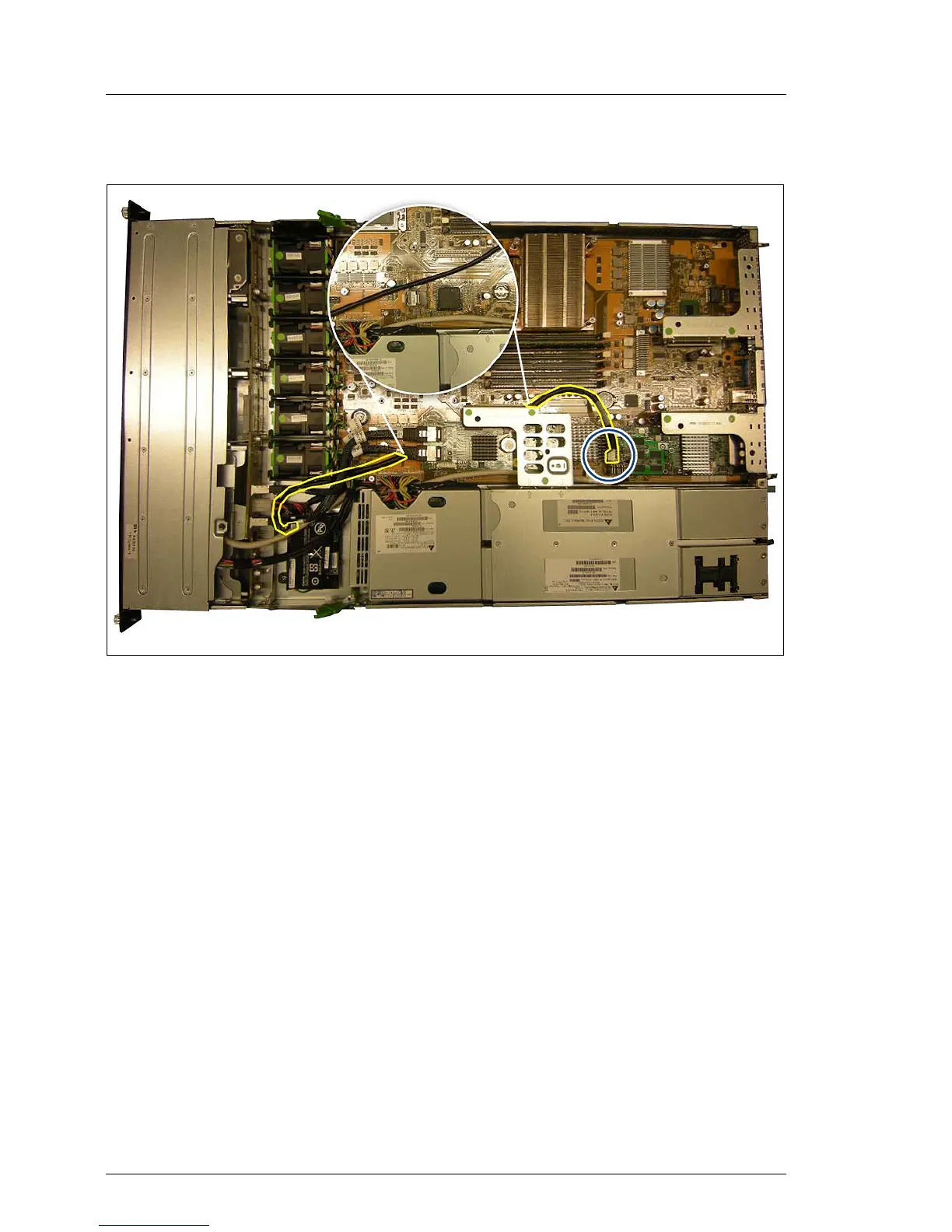

Figure 37: Routing the iBBU cable to RAID controller in riser card #2
Ê Route the iBBU cable as shown.
I The iBBU cable must pass under the riser card holder with riser card
#3 (see cabling plan on page 81).
Ê Connect the free connector of the iBBU cable to the corresponding
connector on the RAID controller (see circle).
I The connector is protected against polarity reversal, in other words,
the connector can only be connected one way round.
Ê Close the server, connect it to the power outlet, and switch it on as described
in the chapter "Completion" on page 73.
