Fujitsu Q616 - Left Side Ports; Right Side Ports

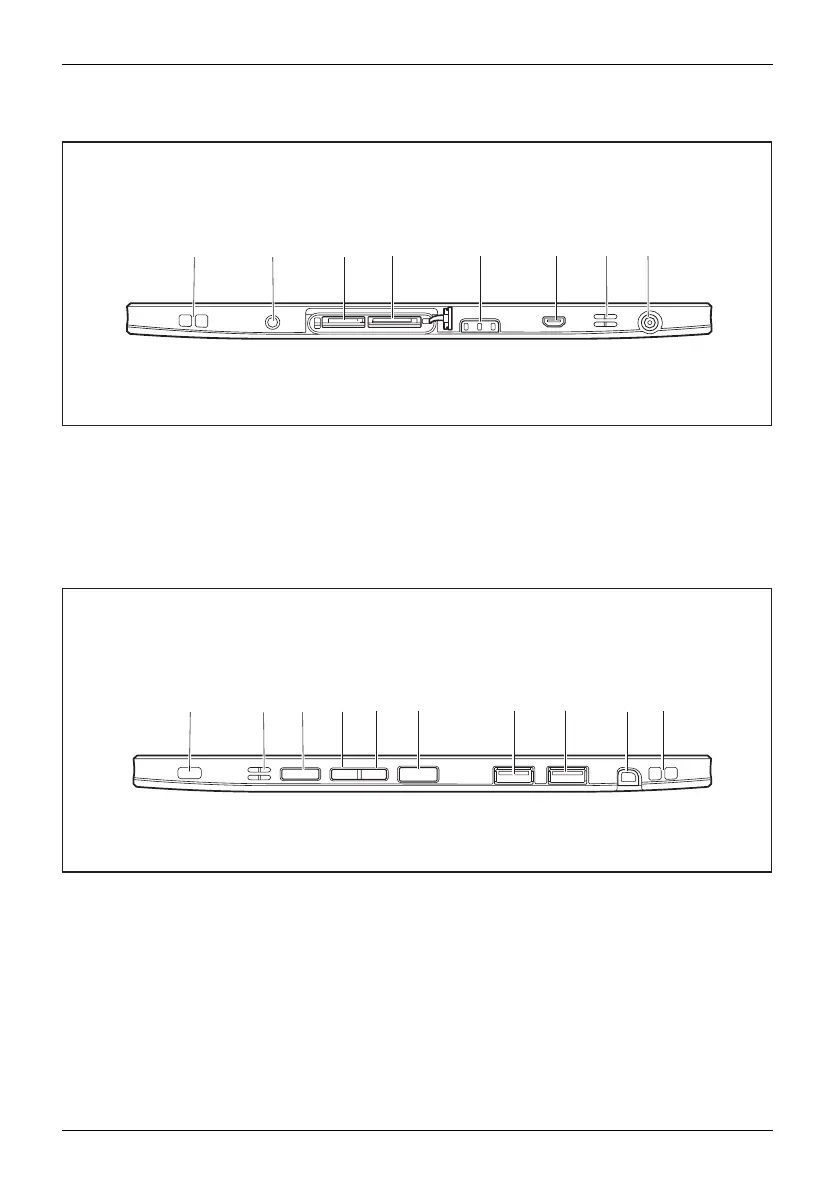

Ports and cont rols
Left side
1 2 3
65
4
7 8
1 = Eyelet for optional pen tether
2 = Combined headphone and
microphone port
3 = Memory card slot (protected by cover)
4 = SIM card slot (protected by cover)
5 = Status indicators
6 = Micro HDMI port
7 = Loudspeaker
8 = DC input connector (DC IN)
Right side
1 3 4 9
7 86
5
10
2
1 = Security Lock device
2 = Loudspeaker
3 = Shortcut button
4 = Volume down button
5 = Volume up button
6 = ON/OFF button
7 = USB port (USB 2.0)
8 = USB port (USB 3.0)
9 = Pen slot (optional)
10 = Eyelet for optional pen tether
