6.3 Cleaning the Inside of the Scanner
ScanSnap S500 Operator's Guide 153
Daily Care
6
2. Clean the following locations with a cloth moistened with cleaner F1.
Turn off the scanner before cleaning the following locations.
• Pad ASSY (1 piece)
Wipe the pad assy downwards. When cleaning the pad assy, be careful not to get your hand
or the cloth caught on the pick spring (metal part).
• ADF glass surfaces (2 pieces; located on the ADF and opposite side)
Clean lightly.
• Pick roller (1 piece)
Clean lightly taking care not to scratch the surface of the roller. Take particular care in
cleaning the Pick roller since black debris on the roller adversely affect the pickup perfor-
mance.
• Plastic rollers (4 pieces on the ADF)
Clean them lightly while rotating the rollers with your finger. Be careful not to roughen the
surface of the rollers. Take particular care in cleaning the plastic rollers since black debris
on the rollers adversely affect the pickup performance.
It may take long before the cleaner vaporizes if a large quantity is used. When
cleaning the scanner parts, dampen a cloth with modest quantities of the
cleaner. In addition, wipe off the cleaner completely with a soft lint-free cloth to
leave no residue on the surface of the cleaned parts.

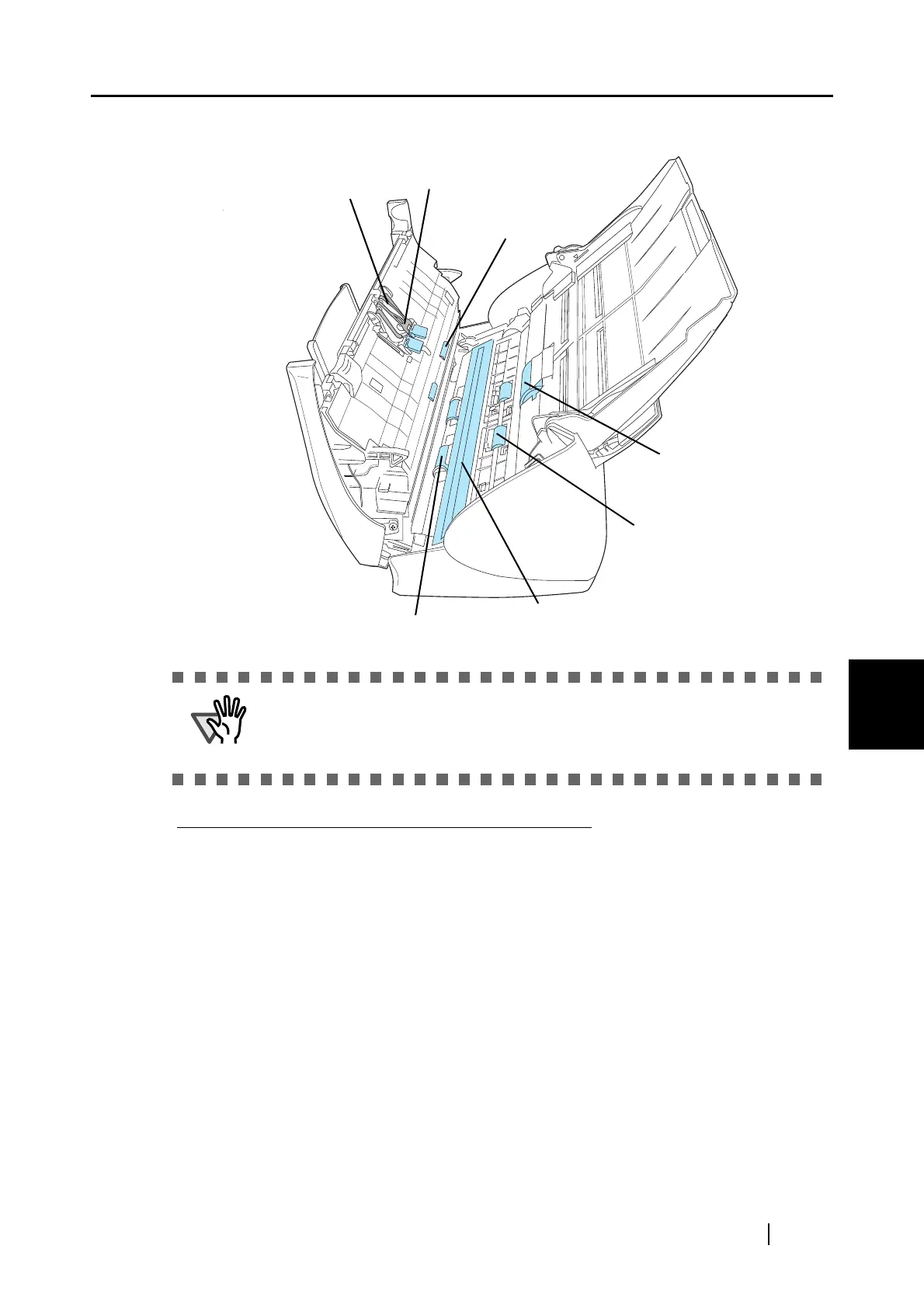

Pad ASSY
Plastic roller
Pick roller
Feed roller
Glass
Eject roller
Pick spring (metal part)
*Gray part
To Next Page
