Fujitsu ScanSnap S500 User Manual

7.3 Replacing the Pick Roller
ScanSnap S500 Operator's Guide 167
Replacing Consumables and Carrier Sheet
7

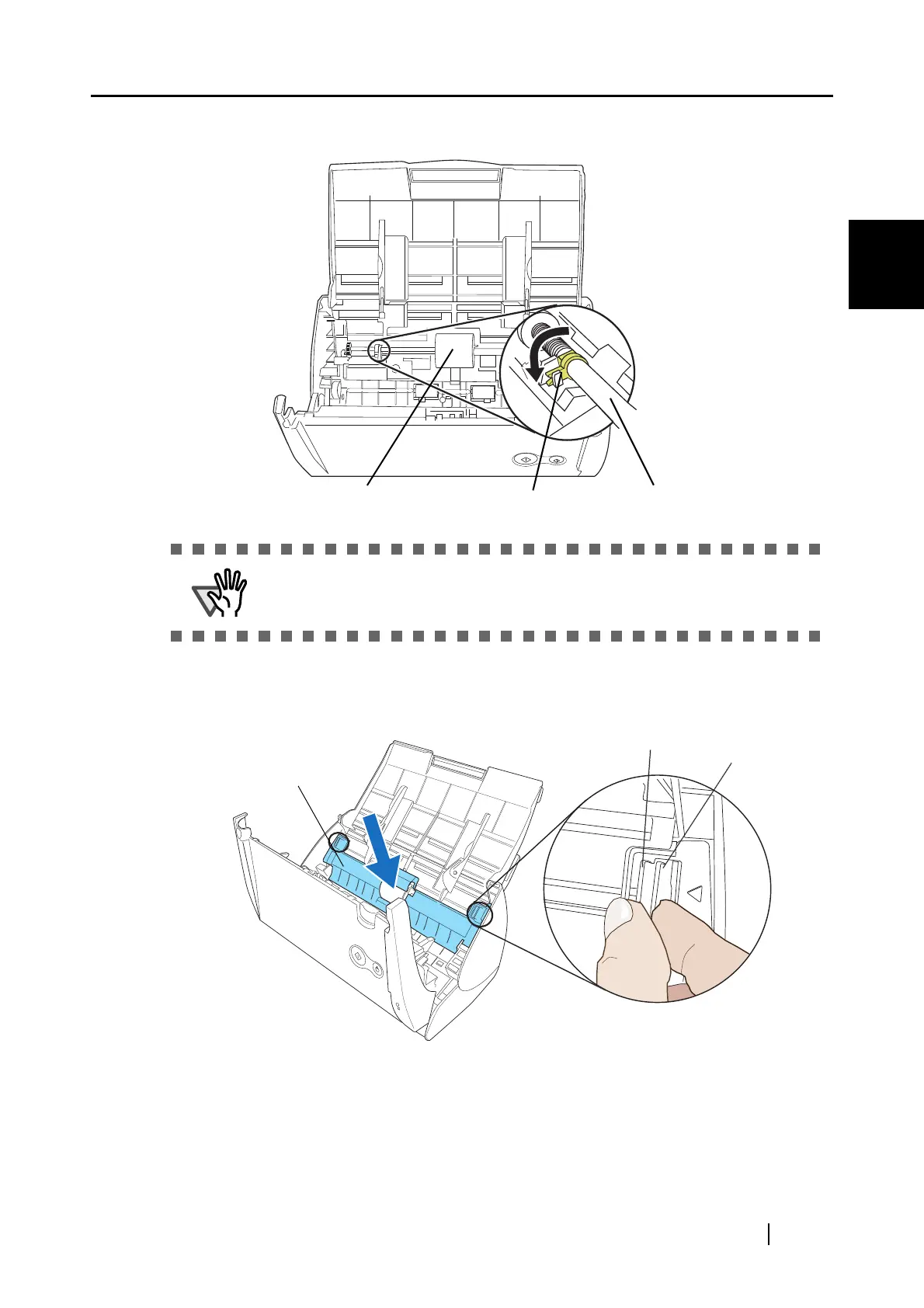

10. Rotate the roller bushing (left) by rotating it in the direction of the arrow.
11. Attach the sheet guide to the scanner.
Pinch the knobs on the sheet guide and attach it to the scanner.
ATTENTION
Make sure that the Pick roller is completely attached. Otherwise, document
jams or other feeding errors may occur.
Pick roller
Pick roller shaftPick roller bushing
Handle
Sheet guide
Craw

Fujitsu ScanSnap S500 Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	- bit
Maximum scan size	216 x 356 mm
Scanner type	Sheet-fed scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	USB 2.0
Minimum system requirements	Windows 2000/ XP/ Vista
Scan media weight	52 - 127 g/m²
Power requirements	AC 100V - 240V, 50 / 60 Hz
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	RoHS

Weight and Dimensions

Weight	2700 g
