Fujitsu ScanSnap S500 User Manual

20

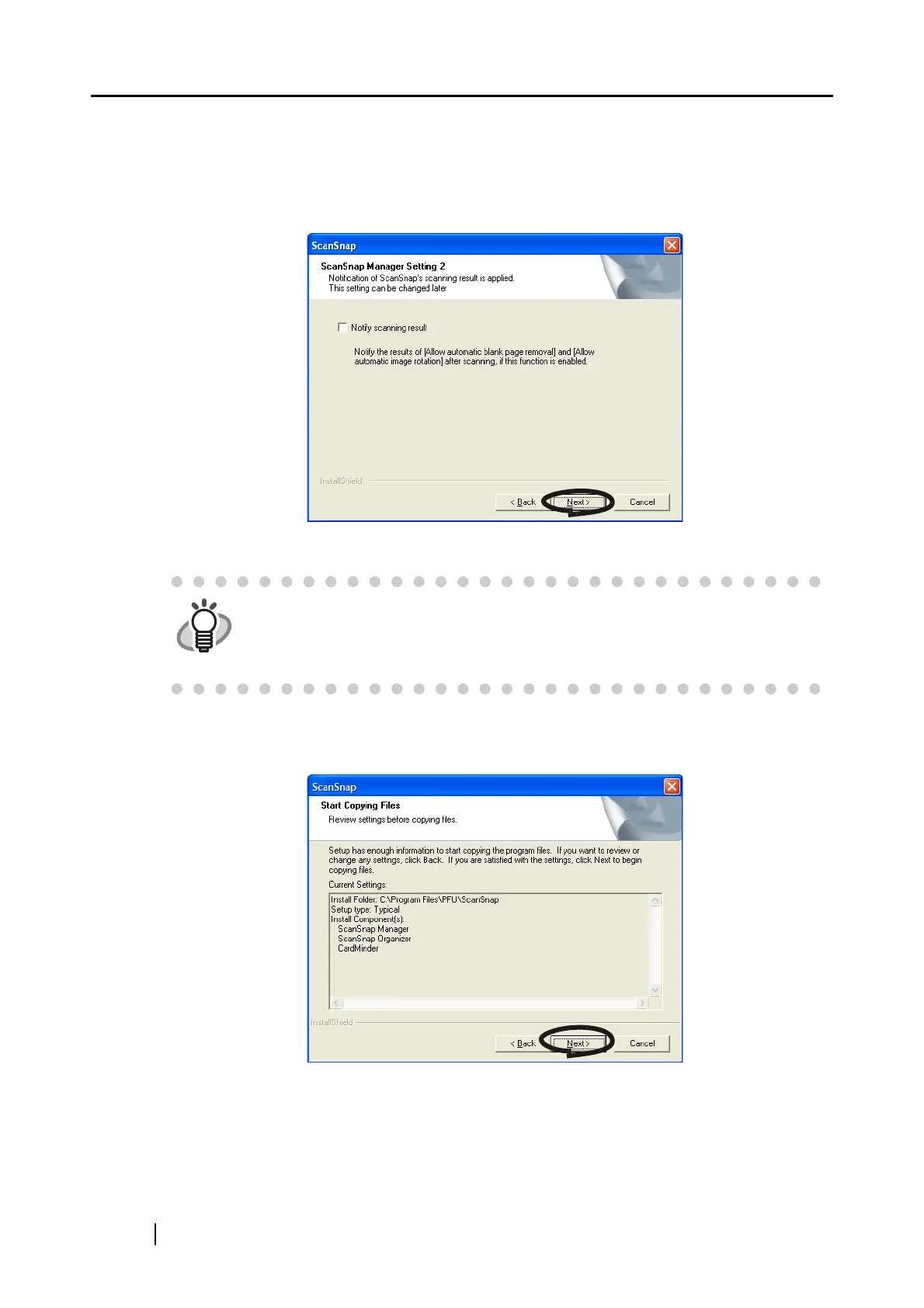

9. In the "ScanSnap Manager Setting 2" screen, mark the "Notify scanning result"
checkbox to notify you of scanning results after scanning, and then click the [Next]
button.
If the checkbox is marked, the notification screen showing will show the details about the
status of blank page removal and image rotation.
⇒ This displays the "Start Copying Files" screen.
10. In the "Start Copying Files" screen, check the files that will be installed and click the
[Next] button.
⇒ This starts the installation of the programs supplied with ScanSnap. After the installation
is finished, the "InstallShield Wizard Complete" screen will be displayed.
HINT
• You can change this setting after installation.
Refer to "3.4 Changing Scan Settings" (page. 53) for more details.
• This screen will not appear when reinstalling the program. The settings before
the reinstallation remain.

Fujitsu ScanSnap S500 Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	- bit
Maximum scan size	216 x 356 mm
Scanner type	Sheet-fed scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	USB 2.0
Minimum system requirements	Windows 2000/ XP/ Vista
Scan media weight	52 - 127 g/m²
Power requirements	AC 100V - 240V, 50 / 60 Hz
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	RoHS

Weight and Dimensions

Weight	2700 g
