■ [Custom] button
You can use this function to register up to 10 customized document sizes at the [Paper

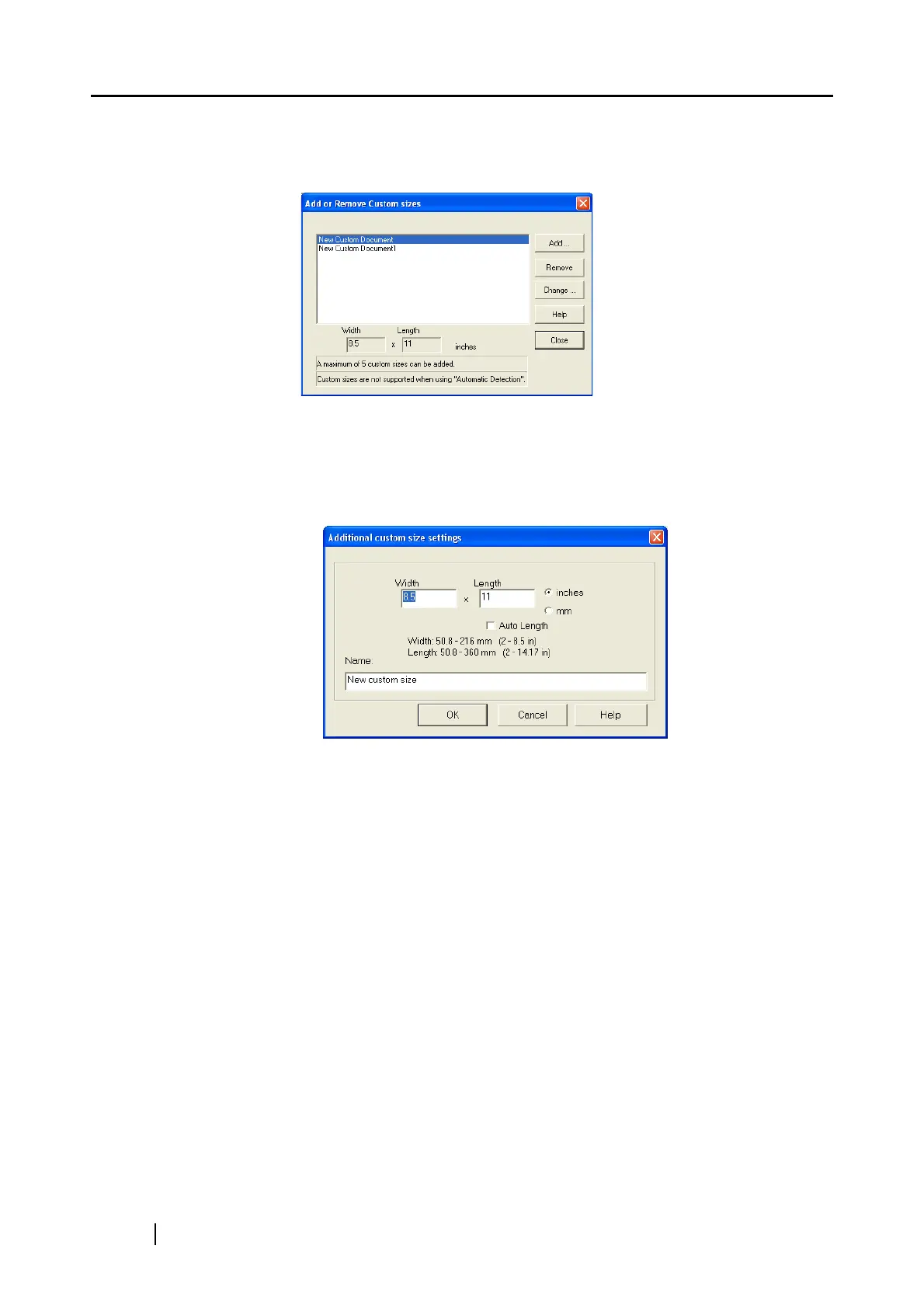

size] menu. Clicking this button displays the following setting window:
‘
<When adding a customized document size>
1) Click the [Add] button.
2) The following screen appears.
- Enter the document size within the range given below.
Width: 50.8 - 216 mm (2 - 8.5 in)
Length: 50.8 - 360 mm (2 - 14.17 in)
- Enter a name in the [Name] field.
⇒ The name is displayed in the [Paper size] field.
3) To complete the setting, click the [OK] button.
4) The customized document size will be registered.
Click the [Close] button to exit the "Add or Remove Custom sizes" window.
<When deleting a customized document size>
1) In the "Add or Remove Custom sizes" window, select the document size to be
deleted and click the [Remove] button.
2) The confirmation message appears. Click the [Yes] button to delete the customized
size.
3) Make sure that the selected size is deleted from the list. Click the [Close] button to
exit the "Add or Remove Custom sizes" window.

Fujitsu ScanSnap S500 Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	- bit
Maximum scan size	216 x 356 mm
Scanner type	Sheet-fed scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	USB 2.0
Minimum system requirements	Windows 2000/ XP/ Vista
Scan media weight	52 - 127 g/m²
Power requirements	AC 100V - 240V, 50 / 60 Hz
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	RoHS

Weight and Dimensions

Weight	2700 g
