Fujitsu ScanSnap S510 User Manual

166
[About] button
Clicking this button displays the information about ABBYY FineReader for
ScanSnap including the version number.
[Register Now!] button
A dialog box appears for you to fill out the registration form.

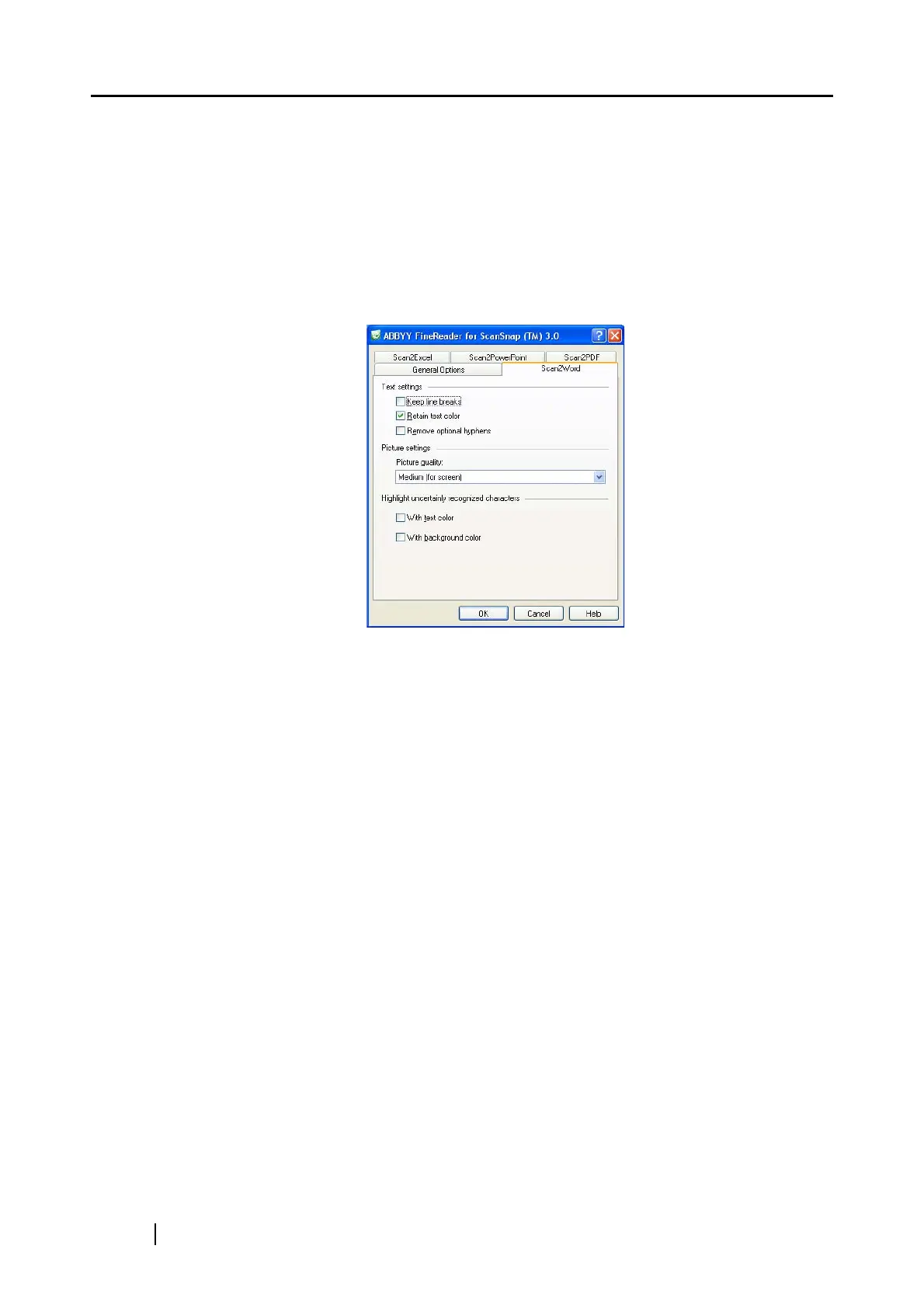

■ [Scan2Word] tab
You can configure advanced settings for converting to Word file format.
"Keep line breaks" checkbox
The text is converted to Word file format, keeping line brakes.
"Retain text color" checkbox
The text is output in original colors.
"Remove optional hyphens" checkbox
Optional hyphens used in the original text are replaced with ordinary hyphens (-).
When Japanese is selected as the recognition language, this checkbox is not
available.
Picture quality
Set the quality for saving pictures. Select one of the following values:
High (for printing): If you are planning to print the recognition results.
Medium (for screen): If the recognition results are intended for viewing on the
screen.
Low (web): If you are planning to place the recognition results on the Web.
"With text color" checkbox
If marked, improperly-recognized characters are colored.
"With background color" checkbox
If marked, the background of improperly-recognized characters are colored.

Fujitsu ScanSnap S510 Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	- bit
Maximum scan size	216 x 356 mm
Scanner type	Sheet-fed scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	USB 2.0
Minimum storage drive space	512 MB
Minimum system requirements	Windows 2000/ XP/ Vista
Sustainability certificates	ENERGY STAR
Power requirements	AC 100V to 240V, 50 / 60 Hz
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	RoHS

Weight and Dimensions

Weight	2700 g
