9.3 Replacing the Pick Roller
ScanSnap S510 Operator's Guide 247
Replacing Consumables and Carrier Sheet
9

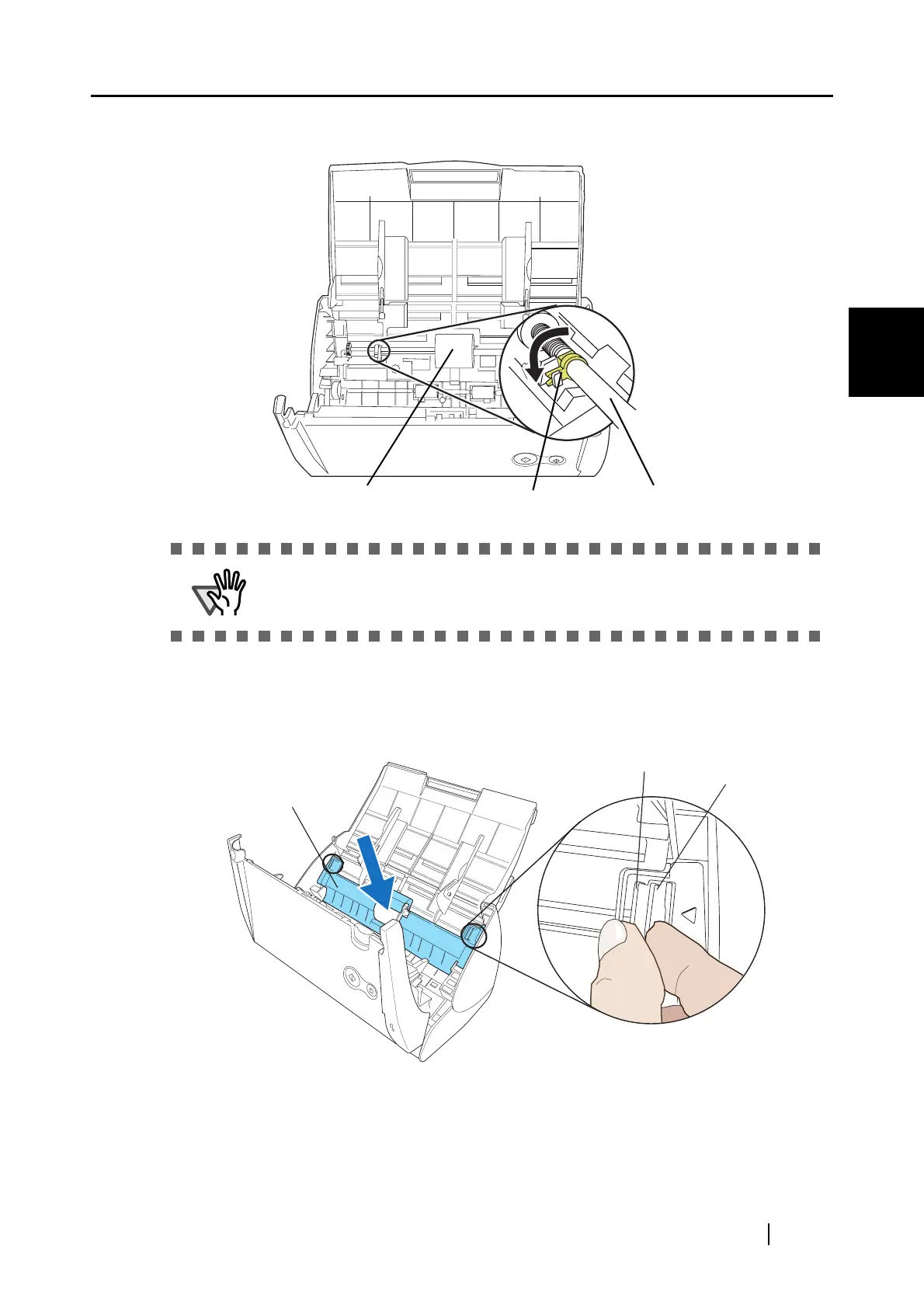

10. Rotate the roller bushing (left) by rotating it in the direction of the arrow.
11. Attach the sheet guide to the scanner.
Hold the pickup tabs on the sheet guide between the thumb and index finger, and then attach
the sheet guide to the scanner.
ATTENTION
Make sure that the Pick roller is completely attached. Otherwise, document
jams or other feeding errors may occur.
Pick roller
Pick roller shaftPick roller bushing
Pick-up tab
Sheet guide
Pick-up t
a
