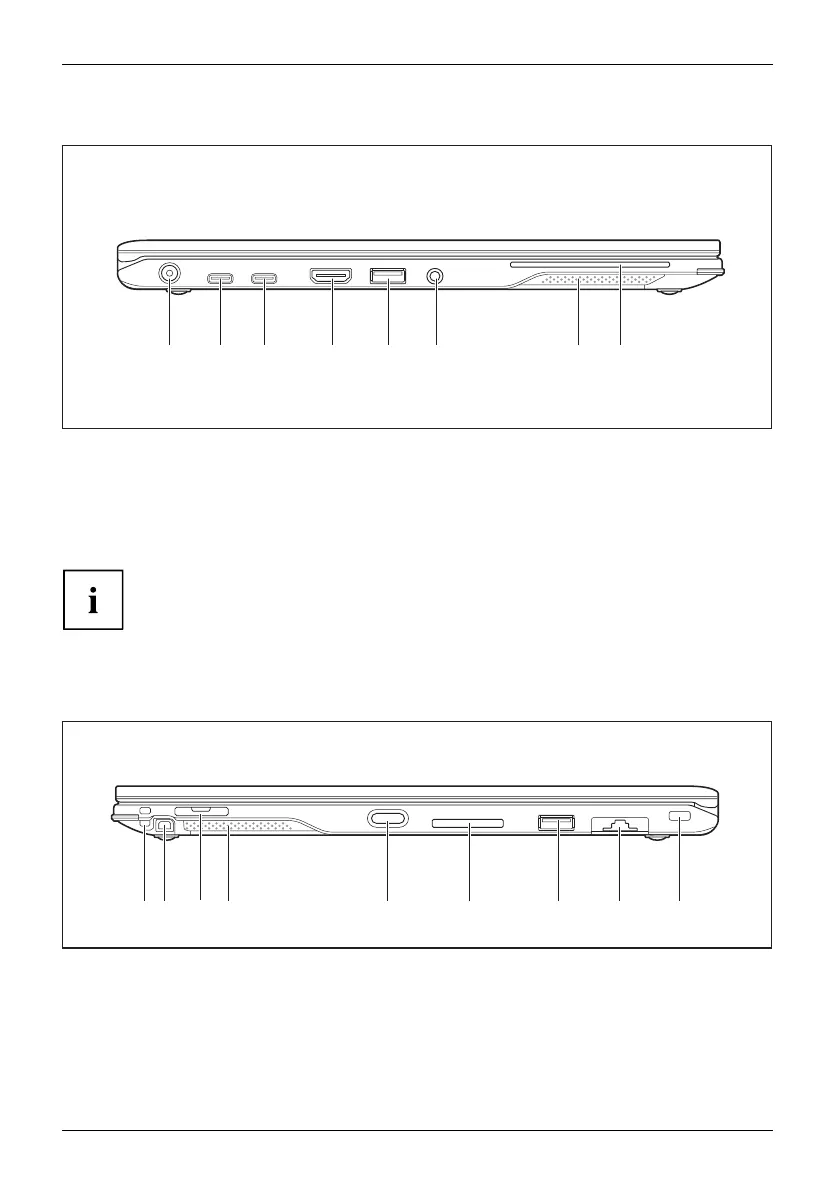

Ports and cont rols
Left side
2 3 4 5 6 7 81
1 = DC input connecto r (DC IN)
2+3= USB port Intel® Thunderbolt
TM
3 with
charging function and display port
(USB Type-C Gen2)
4 = HDMI port
5 = USB 3.2 port with charging function (USB
Type-A, Anytime U SB charge)
6 = Combined h eadphone s/micropho ne port
7 = Loudspeakers
8 = SmartCard reader
The descriptions in this document show the standard product configuration
with Intel® Thunderbolt
TM
3.
The following alternative USB configuration without Intel® Thunderbolt
TM
3
is also available for pro jects:
• Pos. 2 = USB 3.2 Gen2 port with charging function and DisplayPort (USB Type-C™)
Right side
3 4 56 7 8 921
1 = Eyelet for the optional pen tether
2=Penslot
3=SIMcardslot
(configuration-dependent,
protected by cover)
4 = Loudspeaker
5 = ON/OFF button
6 = Memory card slot
7 = USB 3.2 port (USB Type-A)
8 = LAN connector (removable)
9 = Security Lo ck device
