Working with the notebook

From Tablet PC to notebook

► Raise the LCD screen i nto a vertical position.

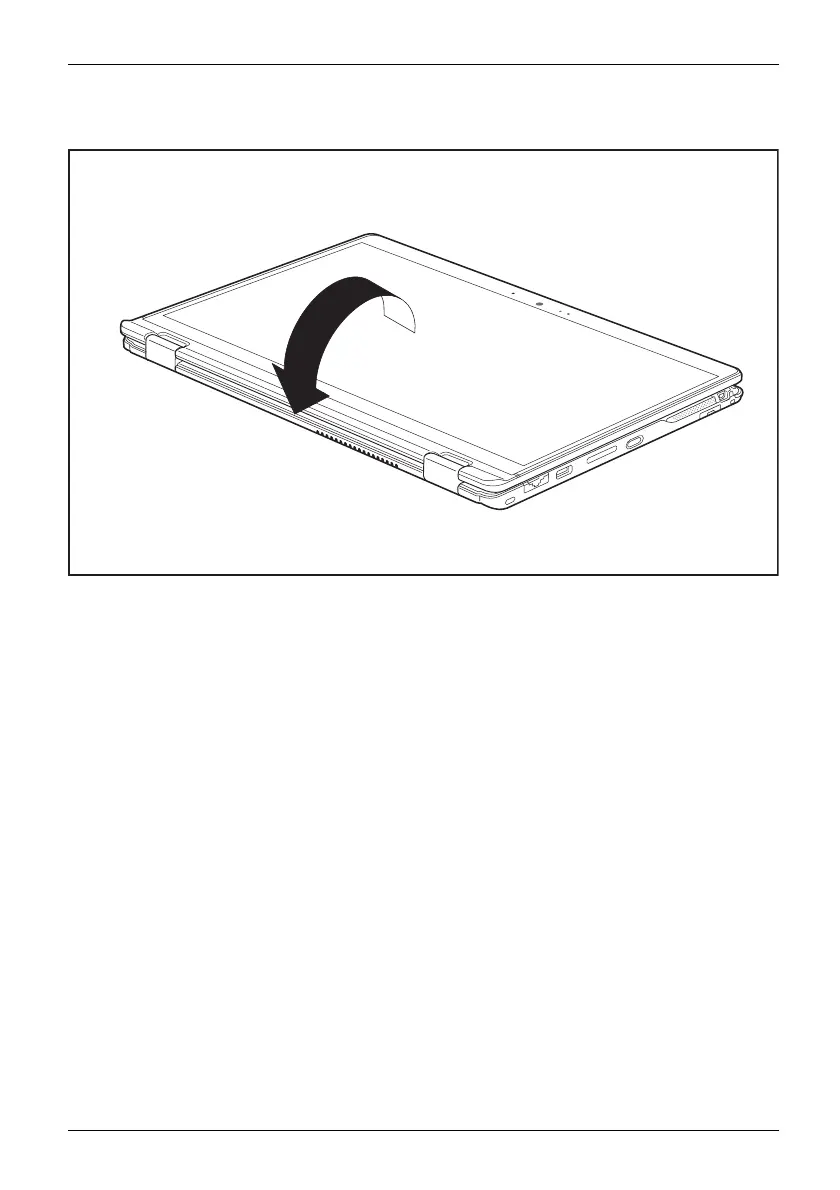

► Fold down the monitor until you reach the desired position.

Fujitsu 25
