Your U SB Type-C Port Replicator (optional)
Your Port Replicator is a device that helps you to quickly connect your notebook to
your peripheral devices, such as a monitor, printer, etc.
The features offered by the Port Replicator include standard ports for monitor, audio
and other USB devices, such as mouse and keyboard.
You need only c onnect the notebook to the Port Replicator in order to
work with your peripheral devices.
In addition to the USB type-C port replicator described here, this system
also supports a Thunderb olt 3 port replicator, which is also connected to
the system via the USB type-C connector.
Ports on the Port Replicator

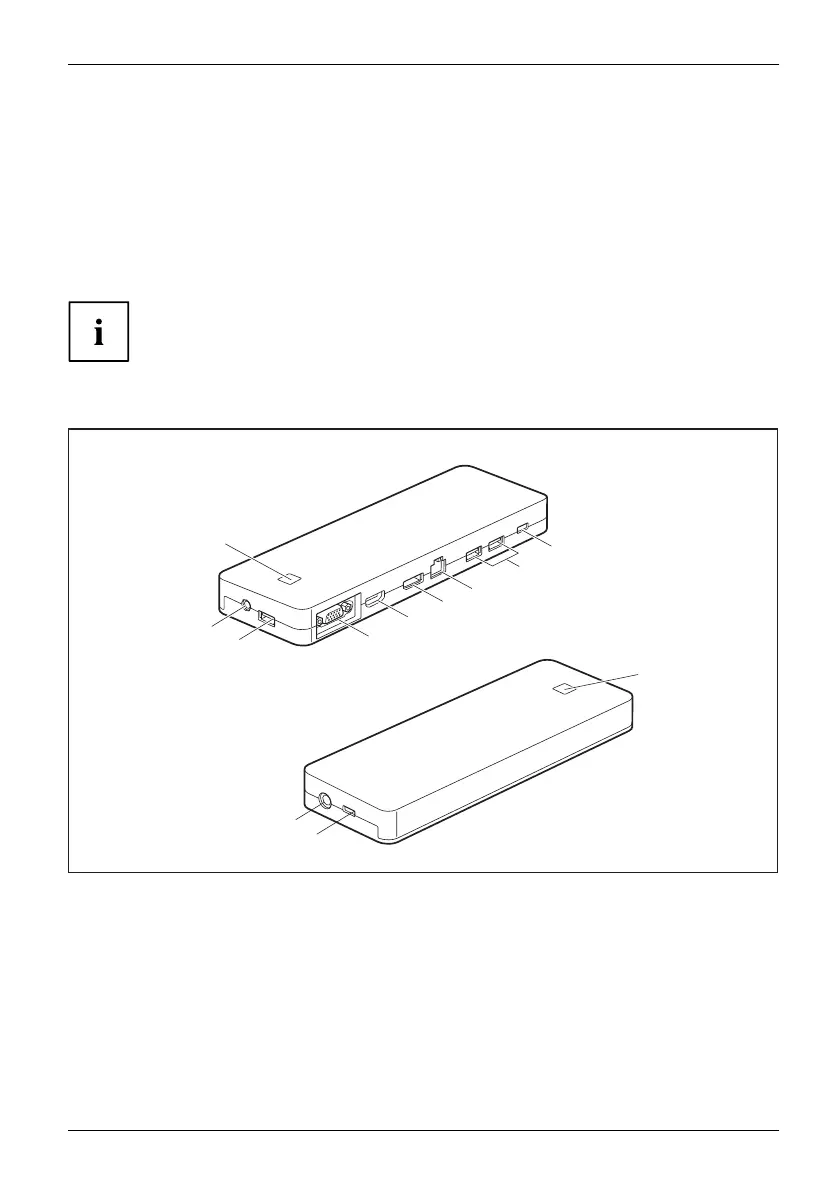

PortReplicatorPorts
1
9
10
8
3
4
5
6
2
7
2
8
1 = Combined headphones/microphone port
2 = USB port 3.2 Gen1 (USB Type-A)
3 = VGA monitor port
4 = H DMI port
5 = D isplayPort
6 = LAN port
7 = USB 3.2 Gen1 port only for data
connection (USB Type-C)
8 = ON/OFF switch with power-on indicator
9 = DC input connector (DC IN)
10 = USB 3.2 Gen1 port for data connection
and power supply fo r the notebook
(USB Type-C)
