4. AIS OPERATION
4-8
4.7 Displaying Target Data
You may display an AIS target’s data by selecting it on the display.
4.7.1 Basic data
By keyboard
1. Roll the trackball to place the cursor on the AIS target symbol you want to
know its data.
2. Press the [TARGET DATA] key.
By trackball
1. With the cursor inside the effective display area, roll the wheel to display
“TARGET DATA & ACQ / CURSOR MENU”.
2. Roll the trackball to place the cursor on an AIS target symbol and then push
the wheel or the left button. The selected target is marked with a broken
square and AIS data is shown in the AIS data box when the target is correctly
selected. Ship name is shown near the target. If this data is not available,
MMSI no. appears.

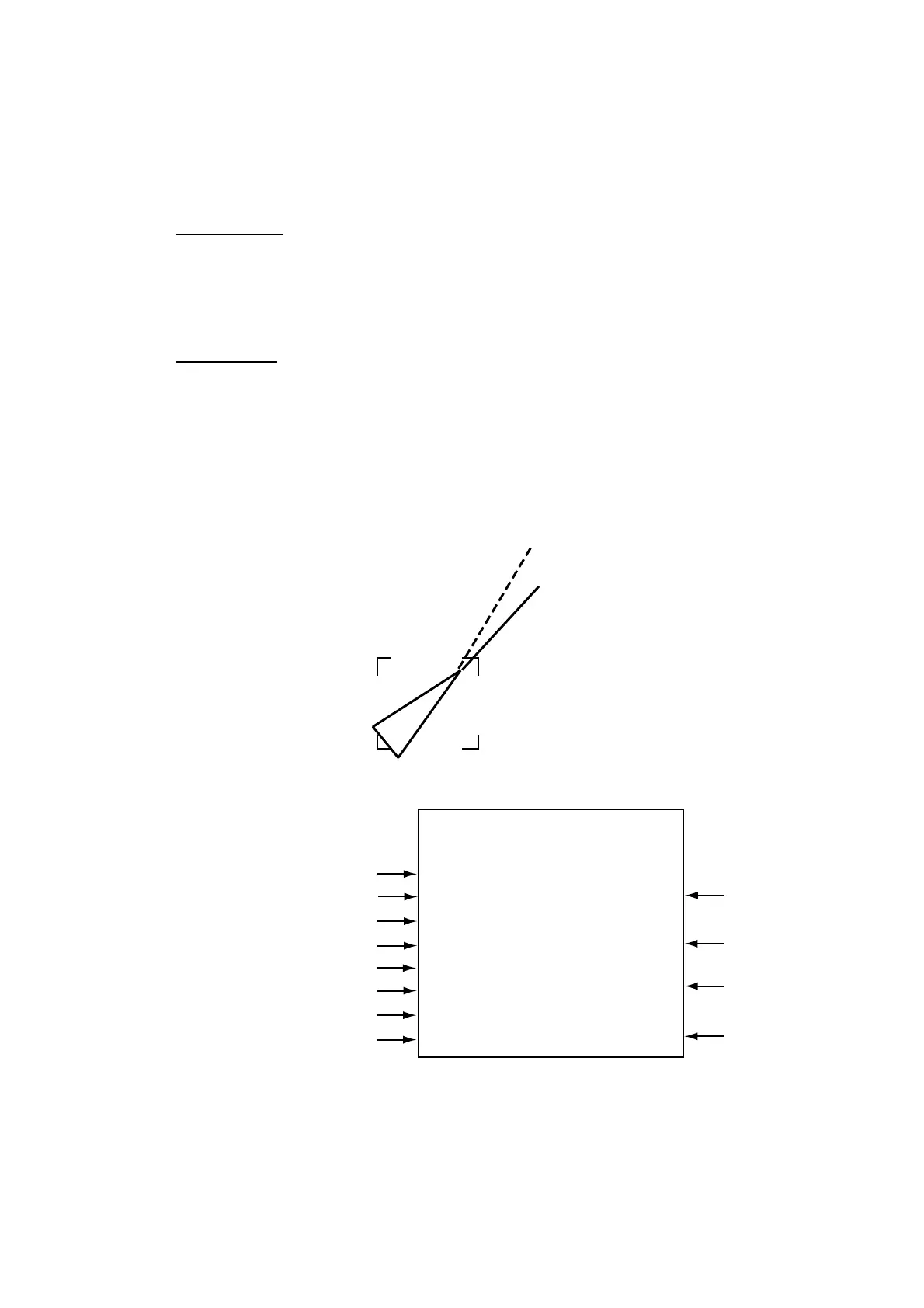

Activated target selected for data display
AIS TARGET NAME
FURUNO
BRG 208.6
°
T HDG
RNG 12.3NM 12.0
°
T
COG 9.0
°
T* ROT
°
/MIN
SOG 8.2kt# 1.1R
CPA 5.32NM CALL
TCPA 33:31 143678
BCR 5.65NM MMSI
BCT 25:30 043109977
* = CSE (course) when water tracking mode is selected at radar.
# = STW (speed thru water) when water tracking mode is selected at radar.
Call sign
MMSI No.
Rate of turn
Heading
Bearing to target
Range to target
Target's course
Target's speed
Target's CPA
Target's TCPA
Target's bow cross range
Target's bow cross time
AIS data display
