5. VIDEO PLOTTER OPERATION
5-35
[CARD (1/2)]
1 BACK
2 DRIVE SELECT
A/B/C/D*
3 [READ CARD]
4 [WR MARK]
5 [WR NAV LINE•WPT]
6 [WR OWN TRACK]
7 [WR TARGET TRACK]**
8 [WR SETTING DATA]
9 [WR INSTALL DATA]
0 NEXT
5.14 Recording Data
The optional Card I/F Unit CU-200 is required to record or replay data. The
CU-200 has two card slots and you can connect two units, for a total of four card
slots.
5.14.1 Initializing memory (RAM) cards
Before you can use a memory (RAM) card it must be initialized. Formatting
prepares the recording surface of the card for use with the system, and deletes
all data recorded in the memory card. You can format cards you’ve used before,
however, in which case all prior information on them is erased.

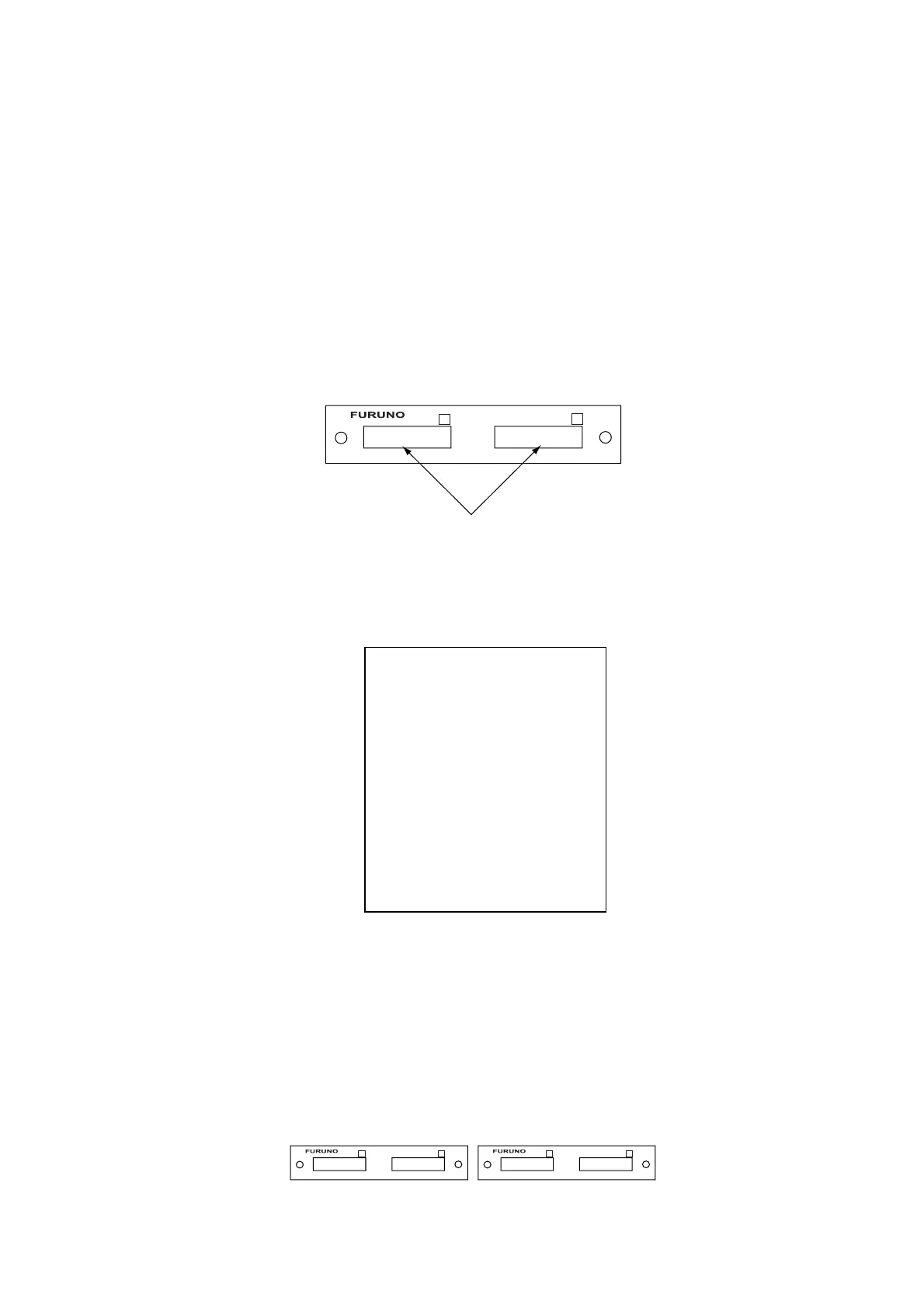

1. Insert a blank memory card into the appropriate card slot in the Card I/F Unit.
Card Slot
+
+
1
2
Card I/F unit, front view
2. Roll the trackball to choose the MENU box and then push the left button.
3. Roll the wheel to choose 6 [CARD] and then push the wheel or the left button.
(Note that “WR” in the CARD menu means “Write.”)
CARD menu, page 1
4. Roll the wheel to choose 2 DRIVE SELECT and then push the wheel or the
left button.
5. Roll the wheel to choose appropriate drive and then push the wheel or the
left button.
Note: If one unit is connected the drives are, from the left drive on the unit,
A=1 and B=2. In case of a second drive unit, its drives are, from the
left drive on the unit, C=1 and D=2.
+
+
1
2
+
+
1
2
A B C D
One Unit 2nd Unit
* Drives available are shown.
** Not available on IMO type
