1. MOUNTING
1-4
How to connect the LAN cable
Connect the LAN cable using the sponge and LAN cable support (supplied). This pro-
cedure should be done even if the LAN cable is not used, to waterproof the unit.

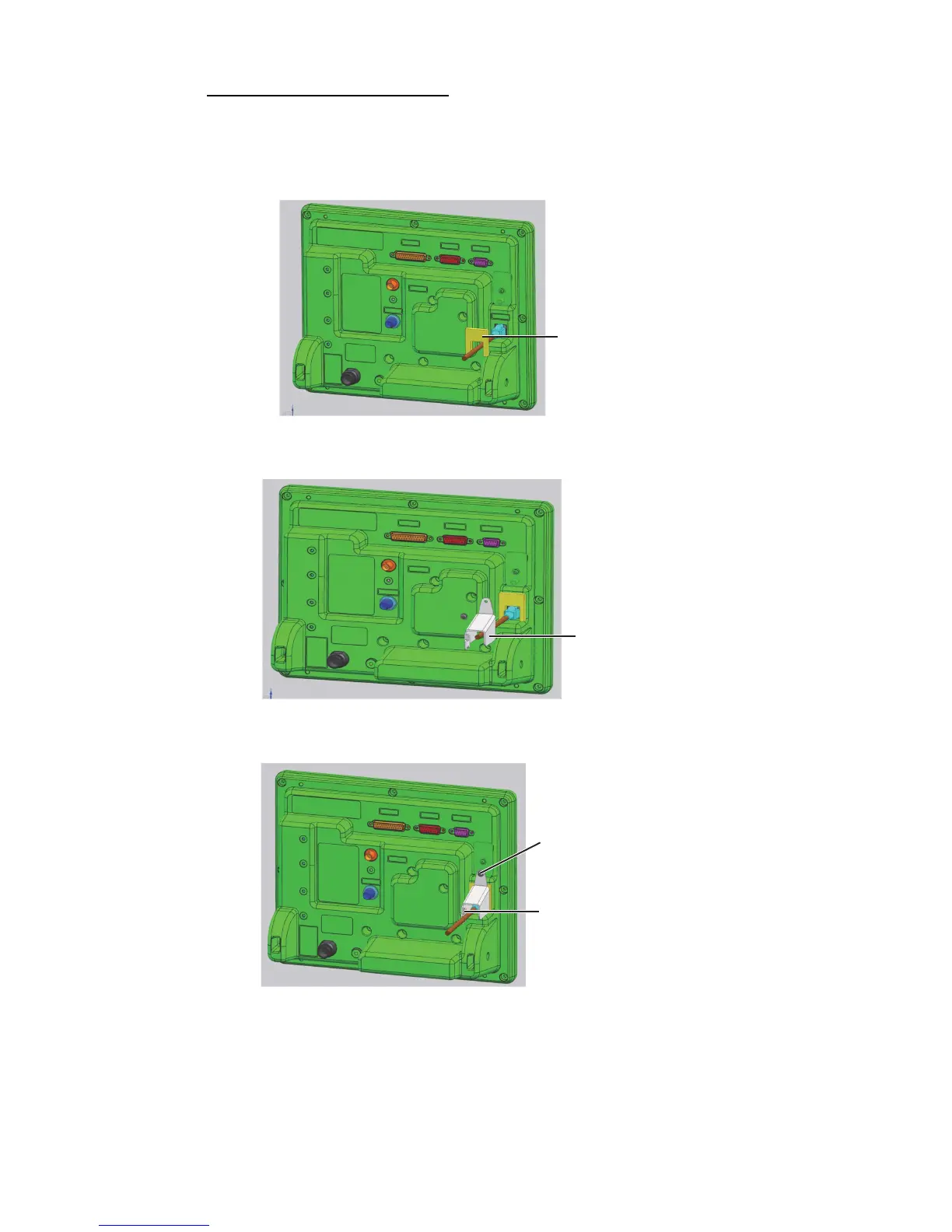

1. Attach the sponge for LAN terminal to the LAN terminal.
2. Use the binding screw (pre-attached at the rear of the unit) to fix the LAN cable
support.
3. Connect the LAN cable to the terminal unit. Fix the LAN cable to the LAN cable
support with a cable tie (supplied).
Sponge for
LAN terminal
LAN cable
support
Fix the cable here
with a cable tie.
Binding screw
To Next Page
