NIC
Type
Chip
Model
Port Type
Number
of Ports
Rate
Negoti
ation
Mode
Supported
Rates
Rates Not
Supported
⚫
The LOM ports do not support forced rates.
⚫
The electrical LOM ports cannot be connected to power over Ethernet (PoE)
devices (such as a switch with PoE enabled). Connecting a LOM port to a PoE
device may cause link communication failure or even damage the NIC.
⚫
The electrical LOM ports (GE electrical ports) do not support SR-IOV.
⚫
Forcibly powering off a server will cause intermittent NC-SI disconnection and
disable the WOL function of the LOM ports. To restore the NC-SI connection,
refresh the iBMC WebUI.

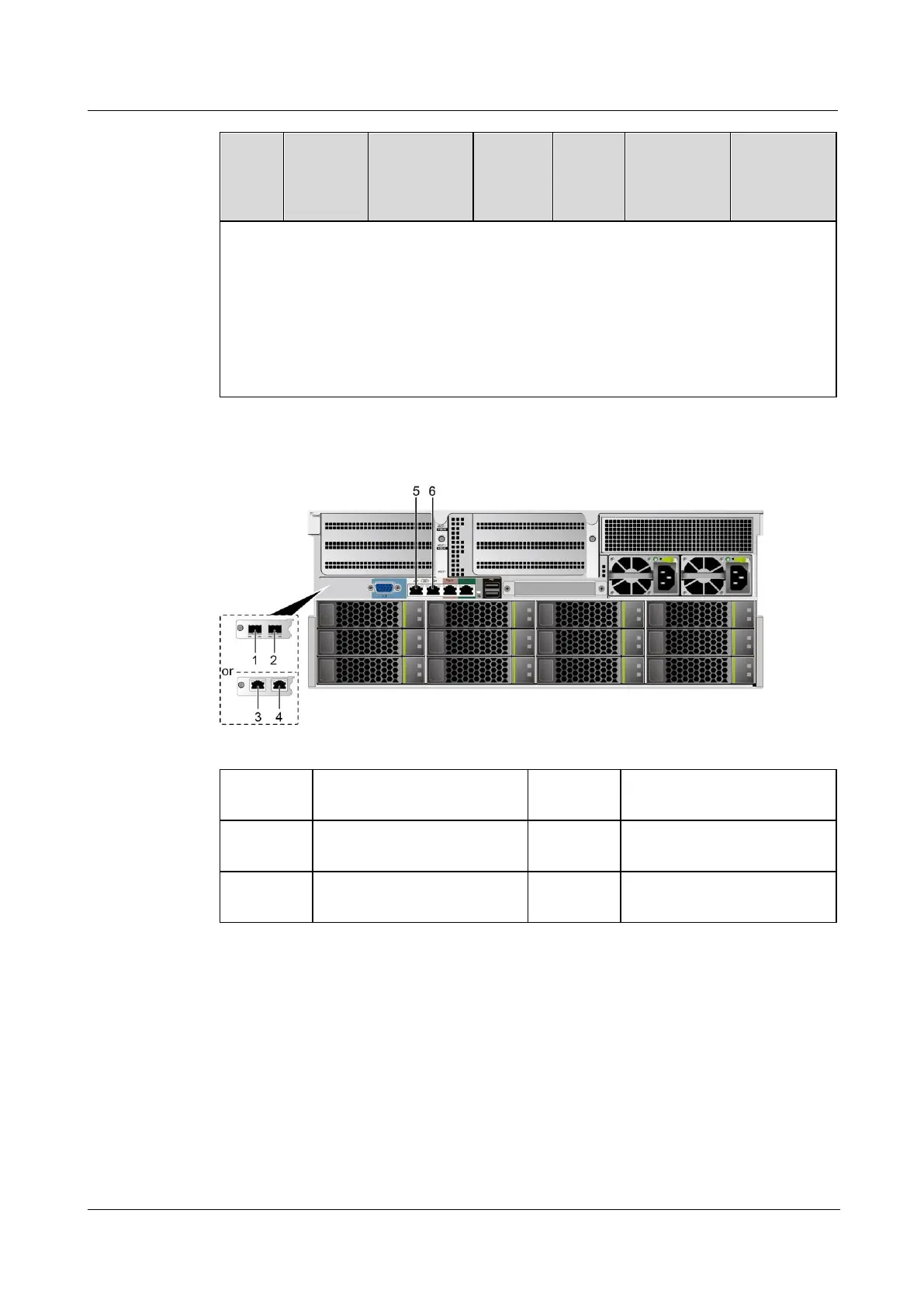

Figure 5-22 LOM port
1
(Optional) 10GE optical
port (LOM port 1)
2
(Optional) 10GE optical
port (LOM port 2)
3
(Optional) 10GE electrical
port (LOM port 1)
4
(Optional) 10GE electrical
port (LOM port 2)
5
GE electrical port (LOM GE
port 3)
6
GE electrical port (LOM GE
port 4)
