FusionServer 5288 V5 Server
Technical White Paper
5 Hardware Description
Issue 07 (2023-04-30)
Copyright © xFusion Digital Technologies Co., Ltd.
42
Indicator Positions

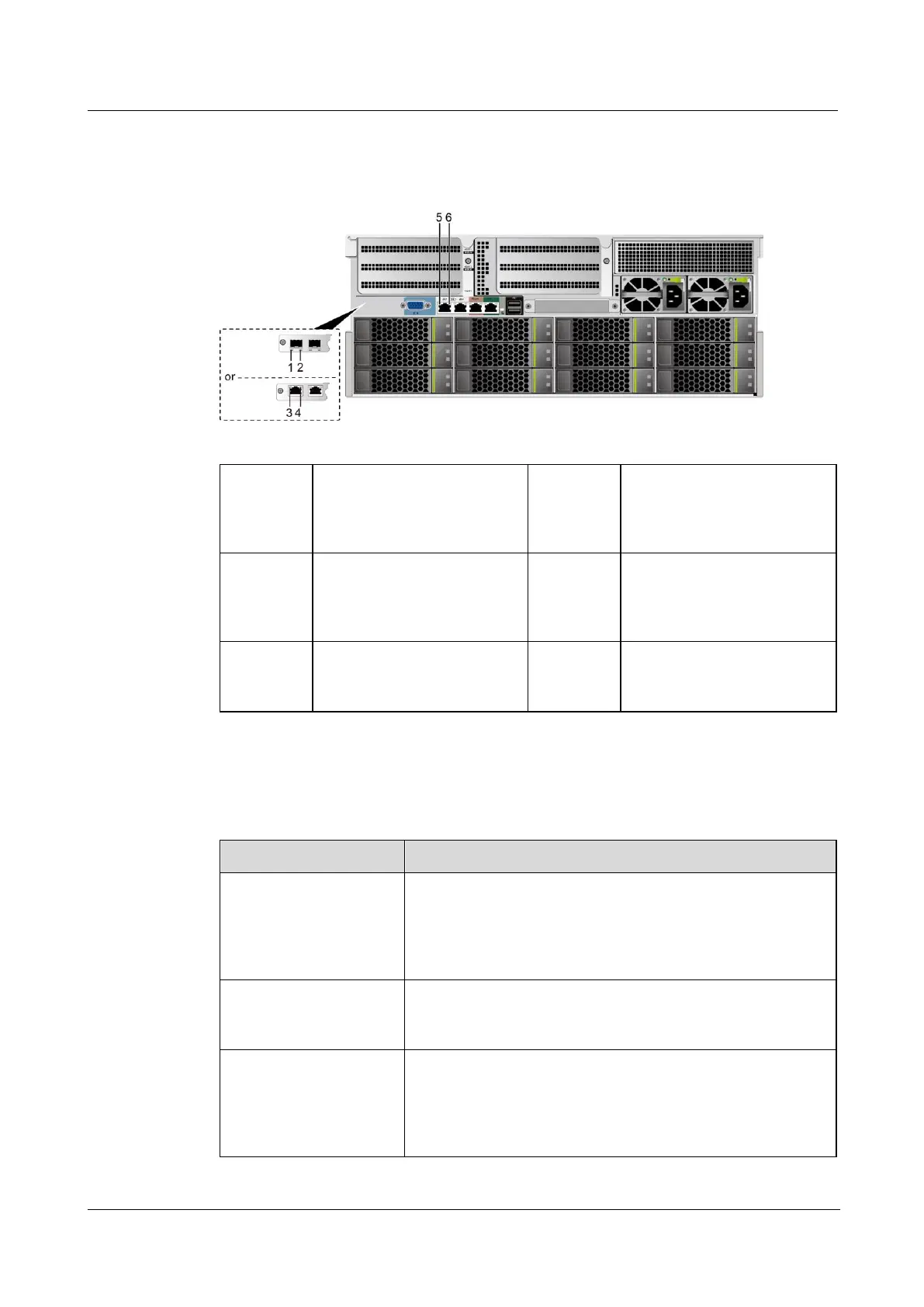

Figure 5-23 LOM indicators
1
Connection status
indicator/Data transmission
status indicator for a 10GE
optical port
2
Data transmission rate
indicator for a 10GE optical
port
3
Data transmission rate
indicator for a 10GE
electrical port
4
Connection status
indicator/Data transmission
status indicator for a 10GE
electric port
5
Data transmission status
indicator of a GE electrical
port
6
Connection status indicator
of a GE electrical port
Indicator Description
Table 5-16 LOM indicators
Indicator
Description
Connection status
indicator/Data
transmission status
indicator for a 10GE
optical port
⚫
Off: The network port is not connected.
⚫
Blinking green: Data is being transmitted.
⚫
Steady green: The network port is properly connected.
Data transmission rate
indicator for a 10GE
optical port
⚫
Off: The network port is not connected.
⚫
Steady green: The data transmission rate is 10 Gbit/s.
Connection status
indicator/Data
transmission status
indicator for a 10GE
electric port
⚫
Off: The network port is not connected.
⚫
Blinking green: Data is being transmitted.
⚫
Steady green: The network port is properly connected.
