FusionServer 5288 V5 Server
Technical White Paper
5 Hardware Description
Issue 07 (2023-04-30)
Copyright © xFusion Digital Technologies Co., Ltd.
45

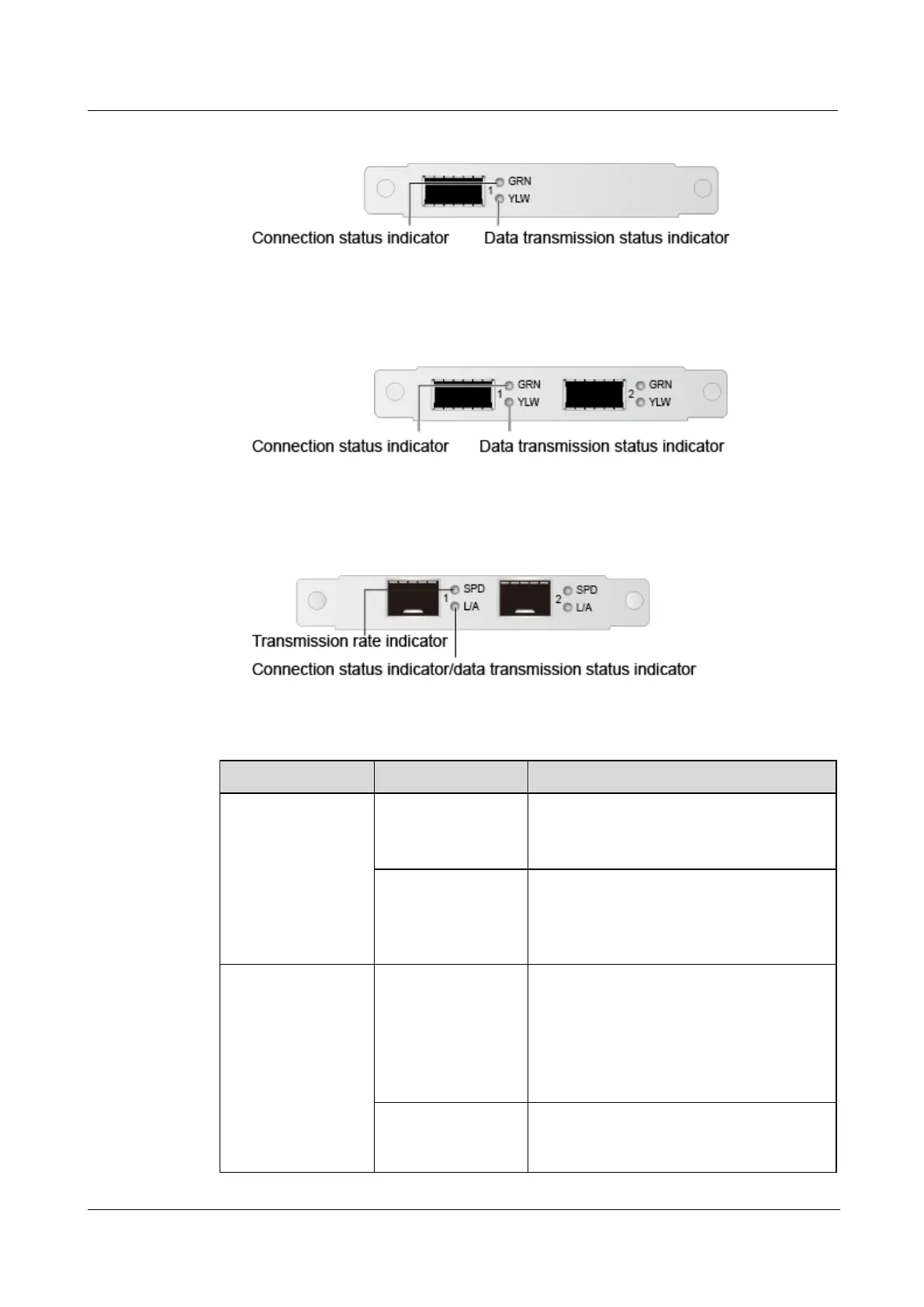

Figure 5-27 SM252 network port indicators
⚫
SM251 with two 56G IB optical ports
Figure 5-28 SM251 network port indicators
⚫
SM330 with two 10GE optical port/SM380 with two 25GE optical ports
Figure 5-29 SM330/SM380 network port indicators
Table 5-18 FlexIO card indicator description
Port Type
Indicator
Status
GE electrical port
Data transmission
status indicator
⚫
Off: No data is being transmitted.
⚫
Blinking yellow: Data is being
transmitted.
Connection status
indicators
⚫
Off: The network port is not
connected.
⚫
Steady green: The network port is
properly connected.
10GE electrical
port
Transmission rate
indicator
⚫
Off: The data transmission rate is
10/100 Mbit/s.
⚫
Steady green: The data transmission
rate is 10 Gbit/s.
⚫
Steady yellow: The data transmission
rate is 1 Gbit/s.
Connection status
indicator/Data
transmission
⚫
Off: No data is being transmitted or
the network port is not connected.
⚫
Blinking green: Data is being
