5 Hardware Description
Issue 07 (2023-04-30)
Copyright © xFusion Digital Technologies Co., Ltd.
51

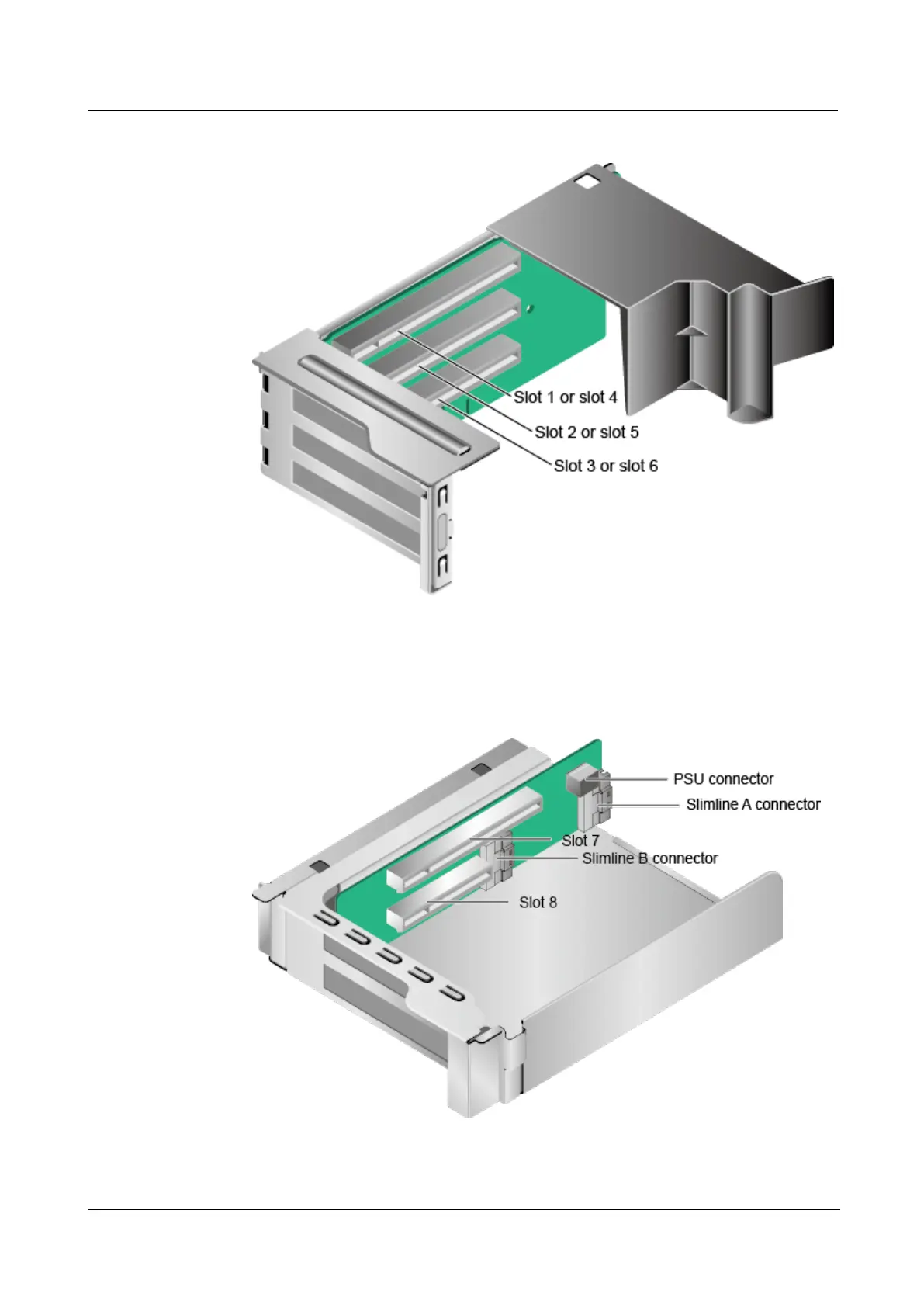

Figure 5-34 PCIe riser module 4
⚫
PCIe riser module 5
Provides PCIe slots 7 and 8 when installed in I/O module 3.
Figure 5-35 PCIe riser module 5
