PCIe riser module 6
Provides PCIe slot 7 when installed in I/O module 3.

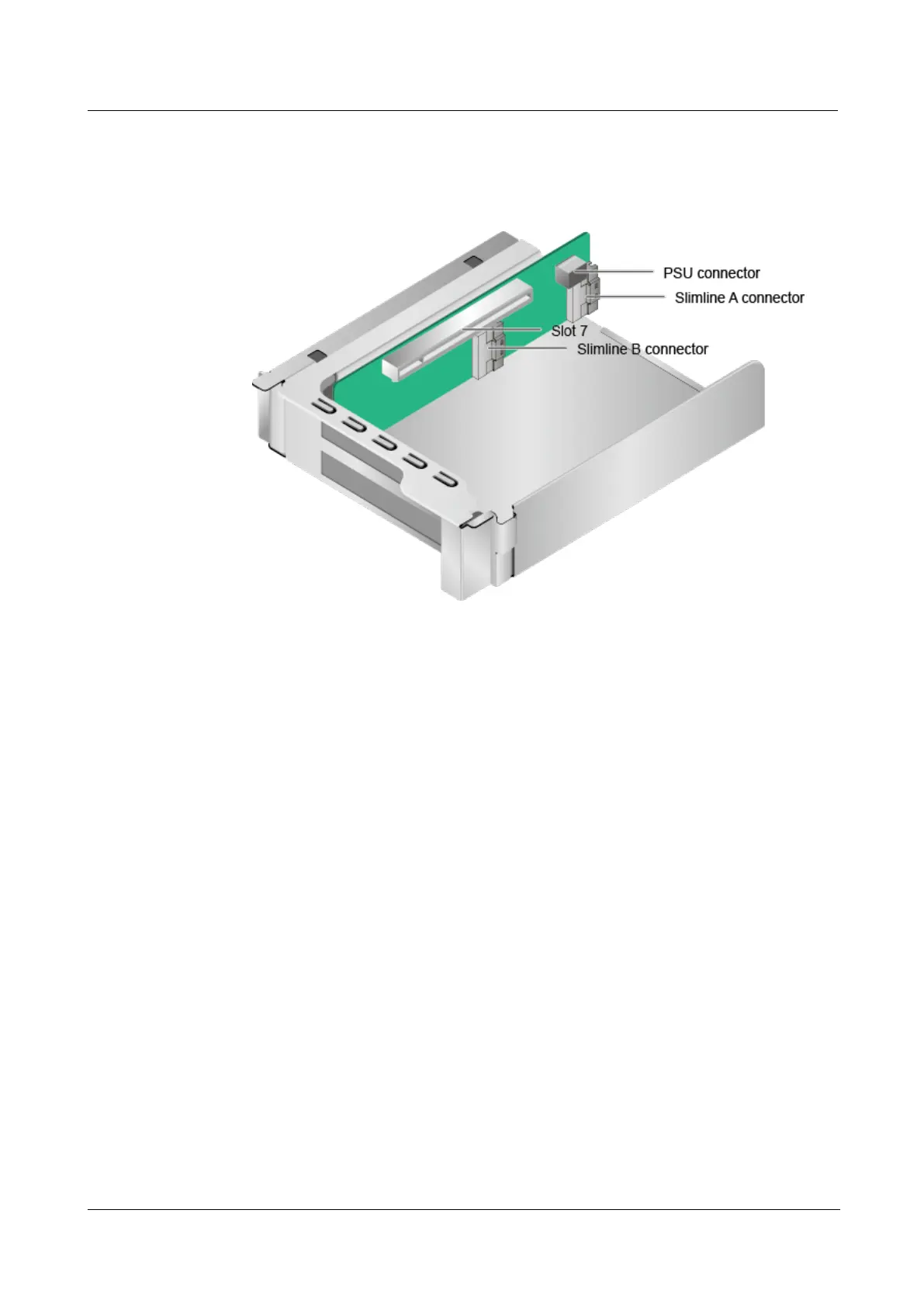

Figure 5-36 PCIe riser module 6
⚫
PCIe riser module 7
Provides PCIe slot 3 when installed in I/O module 1.
