Power connector (J1)
-
-
⚫
4 x 2.5" drive backplane

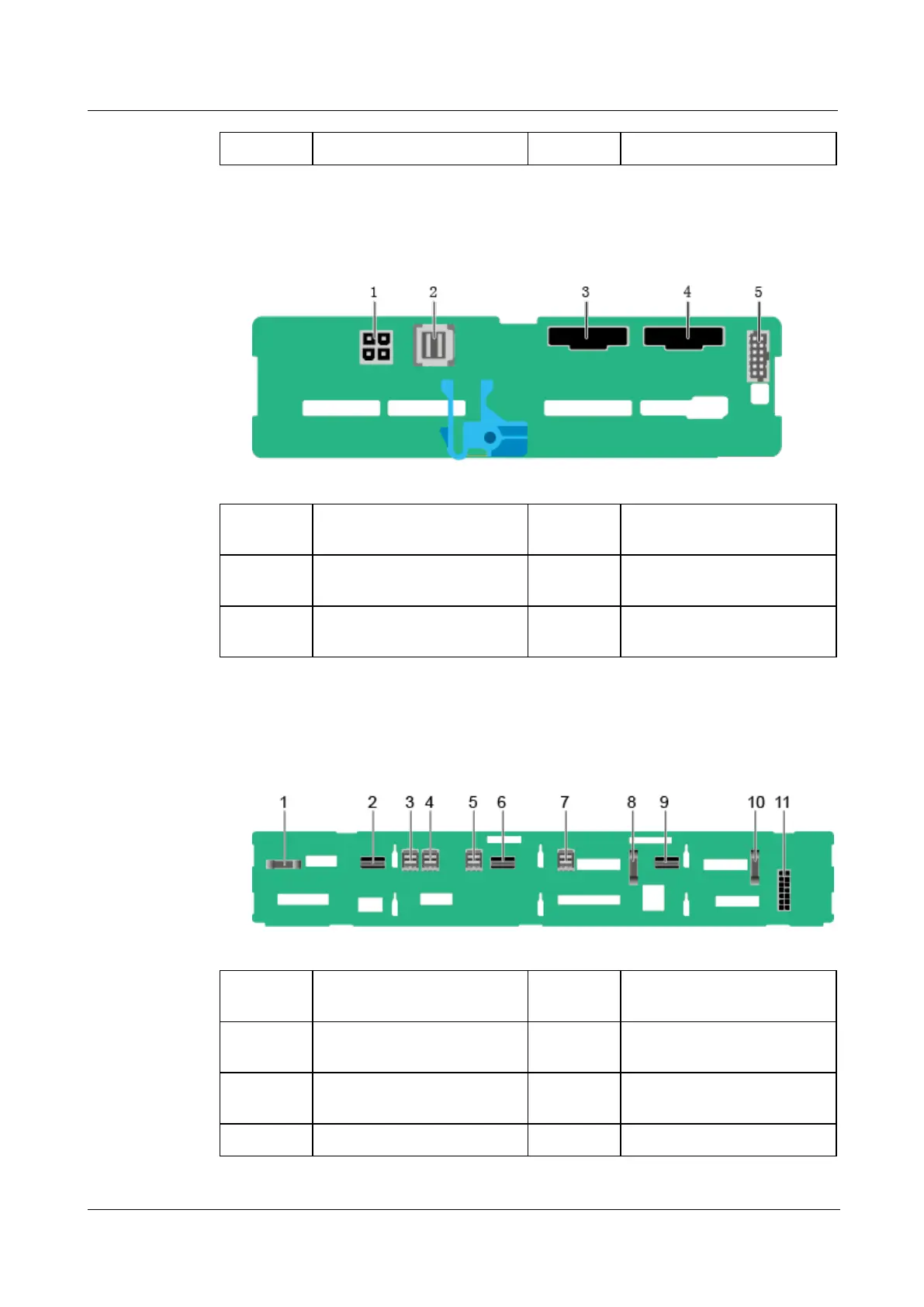

Figure 5-44 4 x 2.5" drive backplane (BOM: 03024BPV and 03029TDR)
1
Power connector (REAR
BP POWR3/J22)
2
Mini-SAS HD connector
(Port A/J2)
3
Slimline A connector
(SLIMLINE A/J8)
4
Slimline B connector
(SLIMLINE B/J9)
5
Backplane signal cable
connector (HDD BP/J23)
-
-
⚫
12 x 3.5" drive backplane (for single-RAID configuration)
Figure 5-45 12 x 3.5" drive backplane (for single-RAID configuration)(BOM:
03023TYQ, 0302010501)
1
Signal connector (J30)
2
Mini-SAS connector (PORT
C/J36)
3
Mini-SAS HD connector
(PORT 1/J15)
4
Mini-SAS HD connector
(PORT 2/J14)
5
Mini-SAS HD connector
(PORT 3/J13)
6
Mini-SAS connector (PORT
B/J29)
7
Mini-SAS HD connector
8
Signal connector
