Gaggia Anima - Water Circuit Operation

GAGGIA ANIMA 04 OPERATING LOGIC
Pag. 1/10

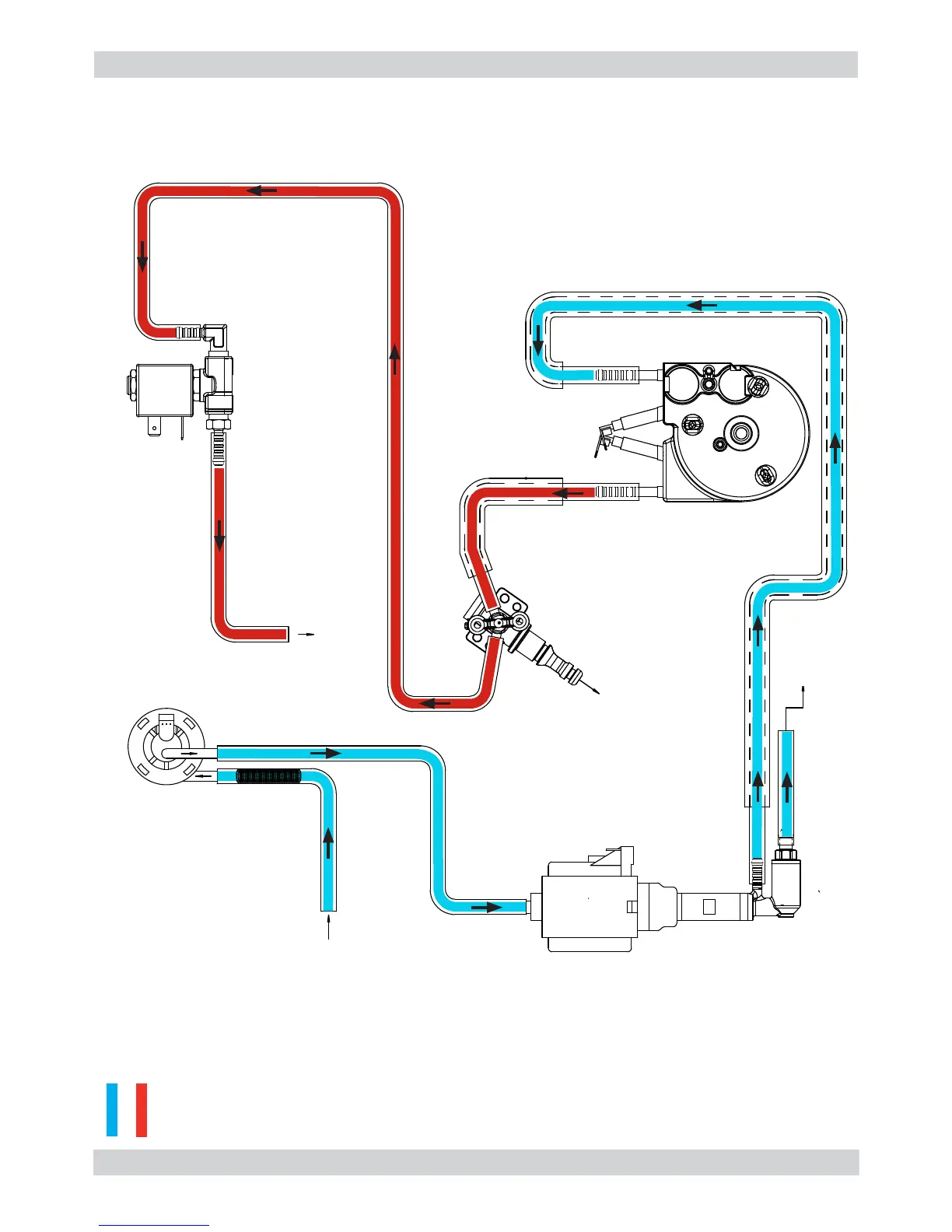

4.1. Water circuit
Water
Hot water /steam
Pump
Safety valve
Water
discharge
Steam pipe
Water tank
Two-way solenoid valve
Brewing Unit
Flowmeter
Boiler
Flowmeter
Steam and hot water
Two-way solenoid valve
Pump
Brewing Unit
Boiler
Safety valve
Water
discharge
Water tank
