Gaggia Anima - Dispenser and Grinder Component Servicing

GAGGIA ANIMA 07 DISASSEMBLY
Pag. 2/9

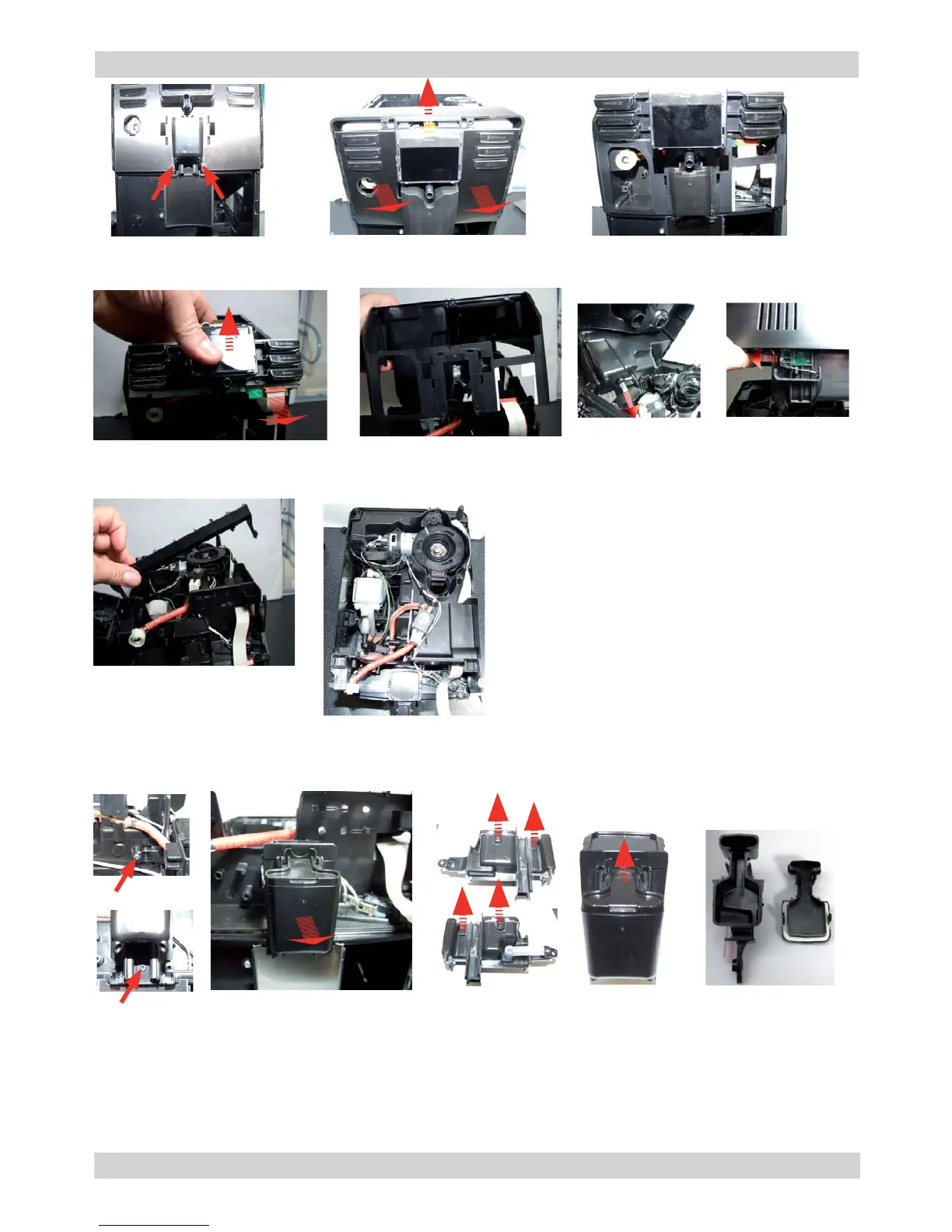

7.2. Dispenser
Unscrew the screws shown
Unscrew the screws shown and
remove the dispenser
unlock where highlighted and re-
move the cover in the dispenser
Remove the insert the upper cover
Remove the support KYB assy.
and disconnect the fl at cable.
Remove the upper cover and remove the electrical and
water circuit connections.
remove the block support
KYB assy.
