GAGGIA ANIMA 07 DISASSEMBLY
Pag. 1/9

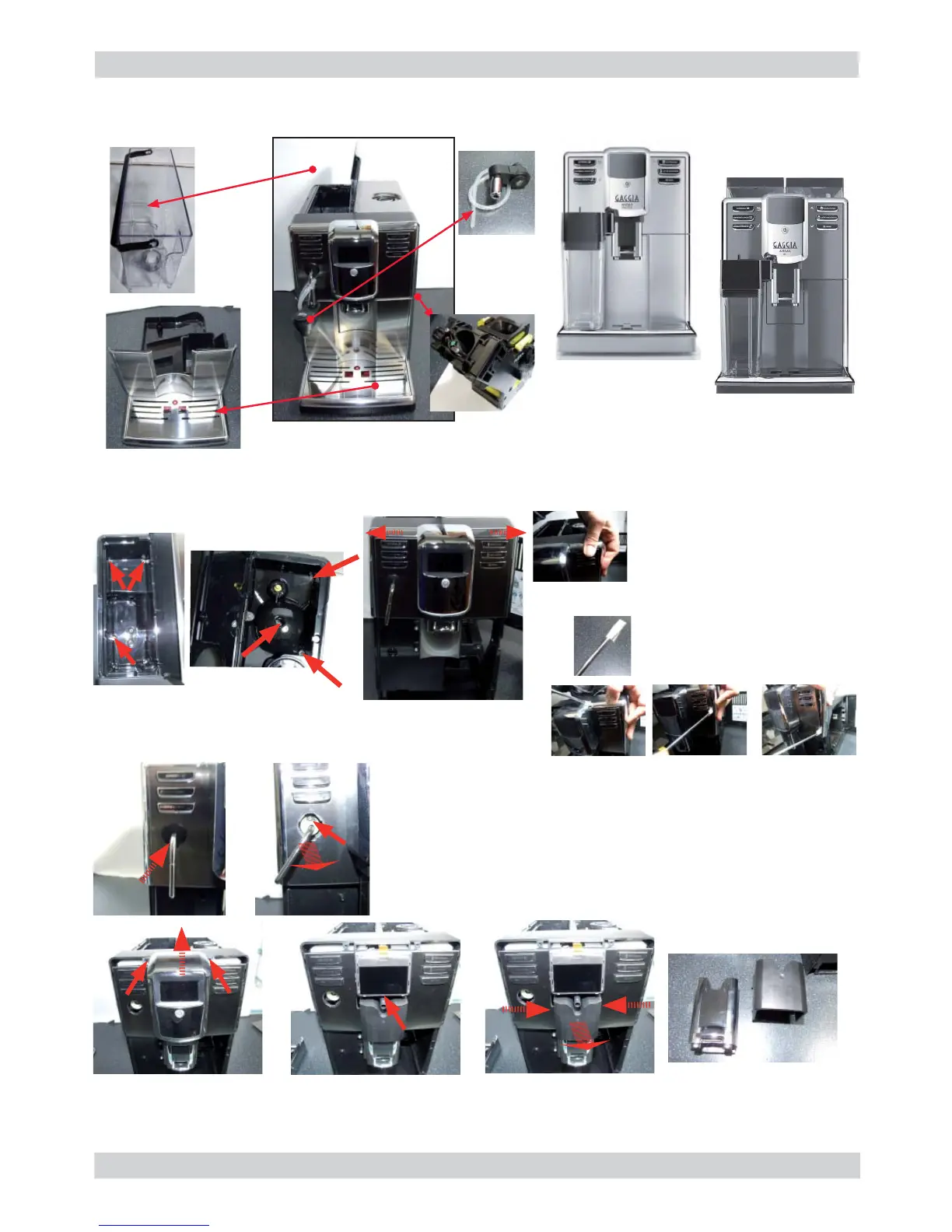

7.1. Outer Shell
Remove the water tank, coffee container cover,
drip tray, dreg drawer, brewing unit.
Cover a screwdriver with
adhesive paper to prevent
scratching the chromed
shell.
Remove the cover as in the
photo. In case of any issues
please you can try with the
alternative way below de-
scribed.
Remove the cover as
in the photo.
Unscrew the screw
shown and remove
the cover.
Unscrew the screws shown
Unscrew the screw shown
Press the sides and remove the cover and
dispenser. Insert as before to reassemble the
dispenser in the rail and then the coverage.
Remuve the cap, unscrew the screw
shown and remove the steam tube.
Anima OTC
Anima XL
Upper cover
2
3
1

Gaggia Anima Specifications

General

Product type	Espresso machine
Capacity in cups	- cups
Coffee input type	Coffee beans, Ground coffee
Coffee maker type	Fully-auto
Country of origin	Italy
Appliance placement	Countertop
Water tank capacity	1.8 L
Coffee beans capacity	250 g
Maximum operating pressure	15 bar
Number of grinder settings	5
Reservoir for brewed coffee	Cup
Number of temperature settings	3
Adjustable coffee spout height range	110 - 150 mm
Control type	Buttons
Display type	LCD
Product color	Black
Housing material	Acrylonitrile butadiene styrene (ABS), Stainless steel
Multi beverage	-
Quantity per pack	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	1 W

Weight and Dimensions

Depth	430 mm
Width	221 mm
Height	340 mm
Weight	7900 g
