Gaggia Anima - Fluid System Components

GAGGIA ANIMA 07 DISASSEMBLY
Pag. 5/9

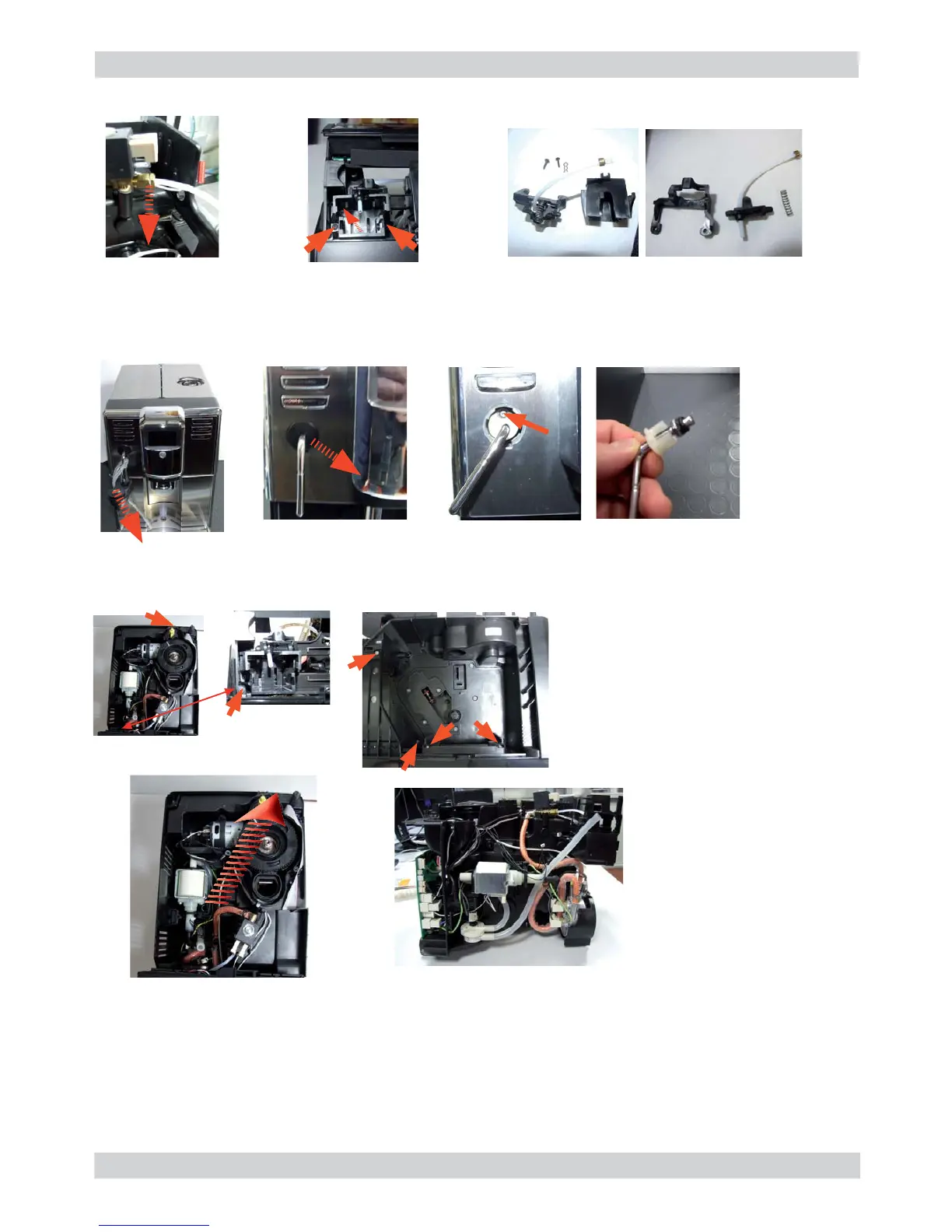

Loosen the screws holding
the carafe connection
When reassembling the assembly to be
careful to correctly position the spring.
Slide out the fork
as illustrated
7.6. Carafe connection and hot/steam water dispenser
hot water dispenser
Removes the covers shown
unscrew the screws
shown
7.7. Central plate
unscrew the screws shown
Lift up the center plate
