GAGGIA ANIMA 05 TROUBLESHOOTING
Pag. 1/9
5.1. Test Mode
The Test Mode is organized into 6 different pages, each level the coffee machine can execute
different commands:
Page 0: The display shows:
a) Firmware version.
b) Version of machine (Focus ⇒ CMF, Class ⇒ AMF, Top ⇒ OTC).
c) Voltage of PCB.
d) Main supply frequency (50 or 60 Hz).
Page 1: Keyboard and display’s colour test:
a) Z1 button
b) Z2 button
c) Z3 button
d) Z4 button
e) Z5 button
f) Z6 button
g) Z7 button
h) Backlight colors
Page 2: Input signals test:
a) Water level sensor
b) Micro-switch door closed/opened
c) Microswitch presence of the Brew Unit
Page 3: Low voltage loads test:
a) Brew Unit movement upward and downward (24V DC)
Page 4: High/Low voltage loads test (Pump, E.Valve ) :
a) Pump (230V AC)
b) DC Solenoid valve (24V) ( The door must be closed !!)
c) Flow-meter
Introduction
This document describes the Test Mode of the Anima (CMF,AMF, OTC and XL) Coffee Machine.
This application is used in order to test the machine in its mechanics and electronic components.

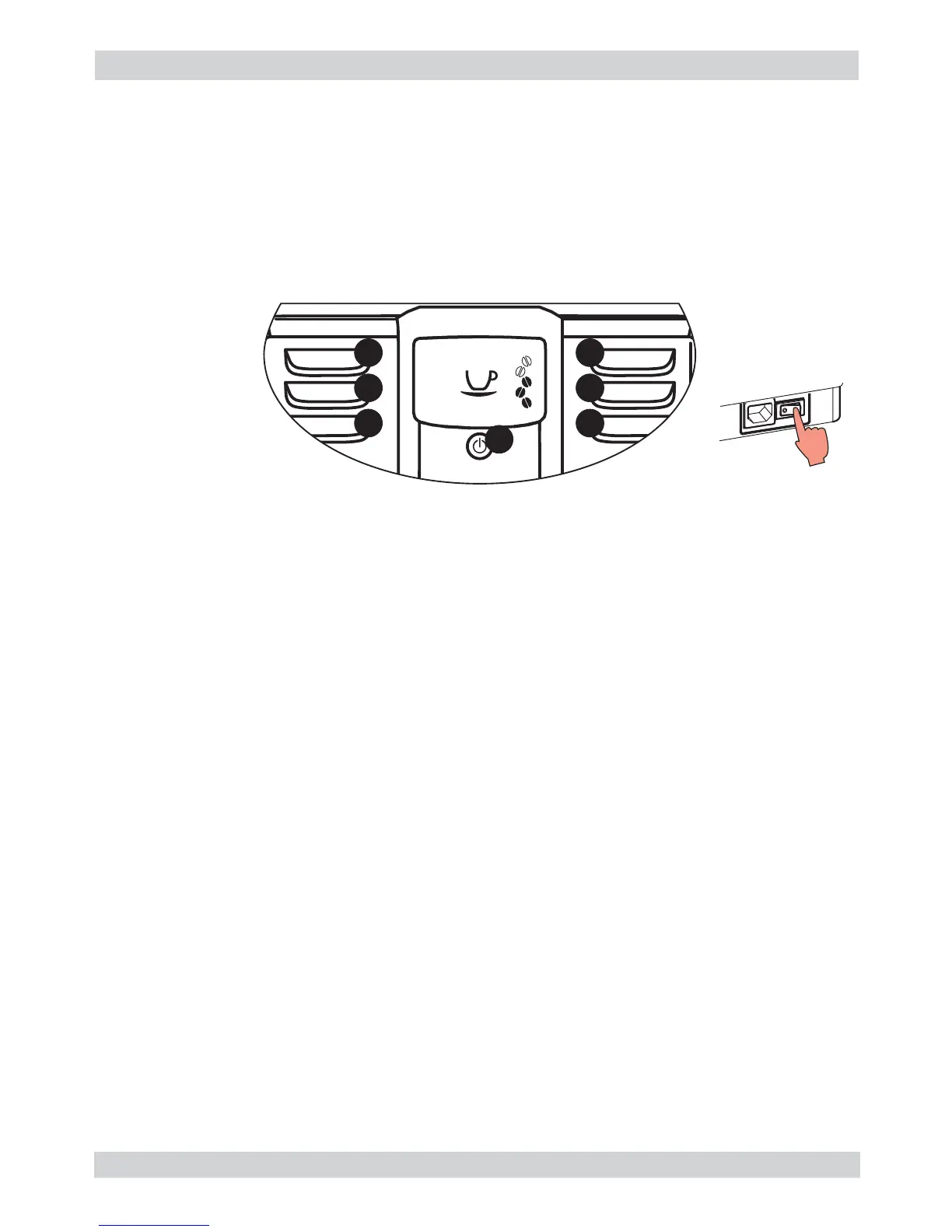

To enter Test Mode
The machine enters in Test mode by holding pressed together Z1 and Z6 buttons while switching
on the machine by the main switch on the backside of the CA.
Once entered in Test Mode, the display shows the fi rmware version (Level 0).
Z1
Z2
Z3
Z6
Z7
Z5
Z4
To Next Page
