GAGGIA ANIMA 04 OPERATING LOGIC
Pag. 6/10

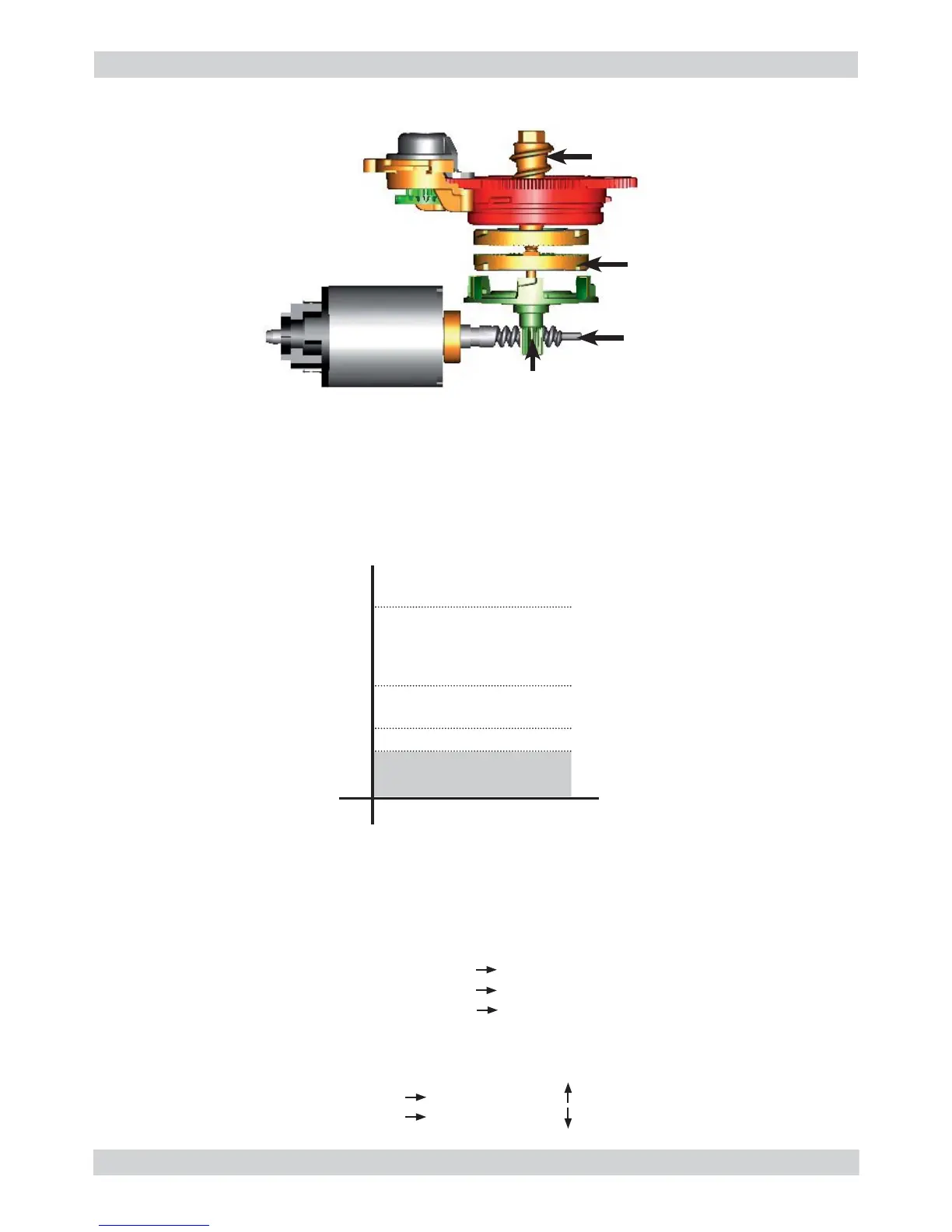

4.8. Coffee grinder
2
3
4
5
1
The coffee grinder is driven by a direct current motor (1) using a worm screw helicoidal wheel
transmission (2).
The worm screw (2) drives a plastic gear wheel (3), which turns the lower grinder (4) and the
increment pin (5)
4.9. Autodose system description
mA
I
0
I0 + 100
I
0 + 55
I
0 + 200
Aroma 4/5
Aroma 2/3
Aroma 1
Auto-Zero
100≤ I
0 ≤300
I0 = current when the BU is moving without load, i.e. without coffee. It occurs, for example, dur-
ing the rinsing phase of coffee spout.
Current targets:
Aroma 1 55mA
Aroma 2/3 100mA
Aroma 4/5 200mA
100 mA ≤ I0 ≤ 300 mA
If the BU current is ≤ the current target the grinding time
If the BU current is ≥ the current target the grinding time

Gaggia Anima Specifications

General

Product type	Espresso machine
Capacity in cups	- cups
Coffee input type	Coffee beans, Ground coffee
Coffee maker type	Fully-auto
Country of origin	Italy
Appliance placement	Countertop
Water tank capacity	1.8 L
Coffee beans capacity	250 g
Maximum operating pressure	15 bar
Number of grinder settings	5
Reservoir for brewed coffee	Cup
Number of temperature settings	3
Adjustable coffee spout height range	110 - 150 mm
Control type	Buttons
Display type	LCD
Product color	Black
Housing material	Acrylonitrile butadiene styrene (ABS), Stainless steel
Multi beverage	-
Quantity per pack	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	1 W

Weight and Dimensions

Depth	430 mm
Width	221 mm
Height	340 mm
Weight	7900 g
