Gaggia Anima User Manual

GAGGIA ANIMA 01 INTRODUCTION
Pag. 2/6
1.5
Service POLICY grid as used for coffee machine
Components Assembly use Single components available
COFFEE
GRINDER
Only for OOW repairs
YES, to consult the specifi c exploded-view of the machine or
of the Coffee Grinder on website
BREWING UNIT Only for OOW repairs
YES, to consult the specifi c exploded-view of the machine or
of the Brewing unit on website
BOILER Only for OOW repairs
YES, to consult the specifi c exploded-view of the machine on
website
GEAR
MOTOR
Only for OOW repairs
YES, to consult the specifi c exploded-view of the machine on
website
FILTER
HOLDER
Only for OOW repairs
YES, to consult the specifi c exploded-view of the machine on
website
MILK
CARAFE
Only for OOW repairs
YES, to consult the specifi c exploded-view of the machine on
website
THERMAL
CARAFE
Only for OOW repairs
YES, to consult the specifi c exploded-view of the Thermal
Carafe on website
MILK ISLAND Only for OOW repairs
YES, to consult the specifi c exploded-view of the Milk Island
on website
List of principal assembly present in all our coffee machines
For IN WARRANTY repairs is mandatory to use the single components (not the assembly) avail-
able in the exploded views of the coffee machines or of the specifi c components. If you fi nd the
information “SEE THE EXPLODED VIEW E........” in the assembly description fi eld, it means that
the single components of the assembly are available in the other pages of the exploded view. It’s
possible to use the assembly only if there is a specifi c Symptom Cure that include this possibility
or when the single components are not available for the order.

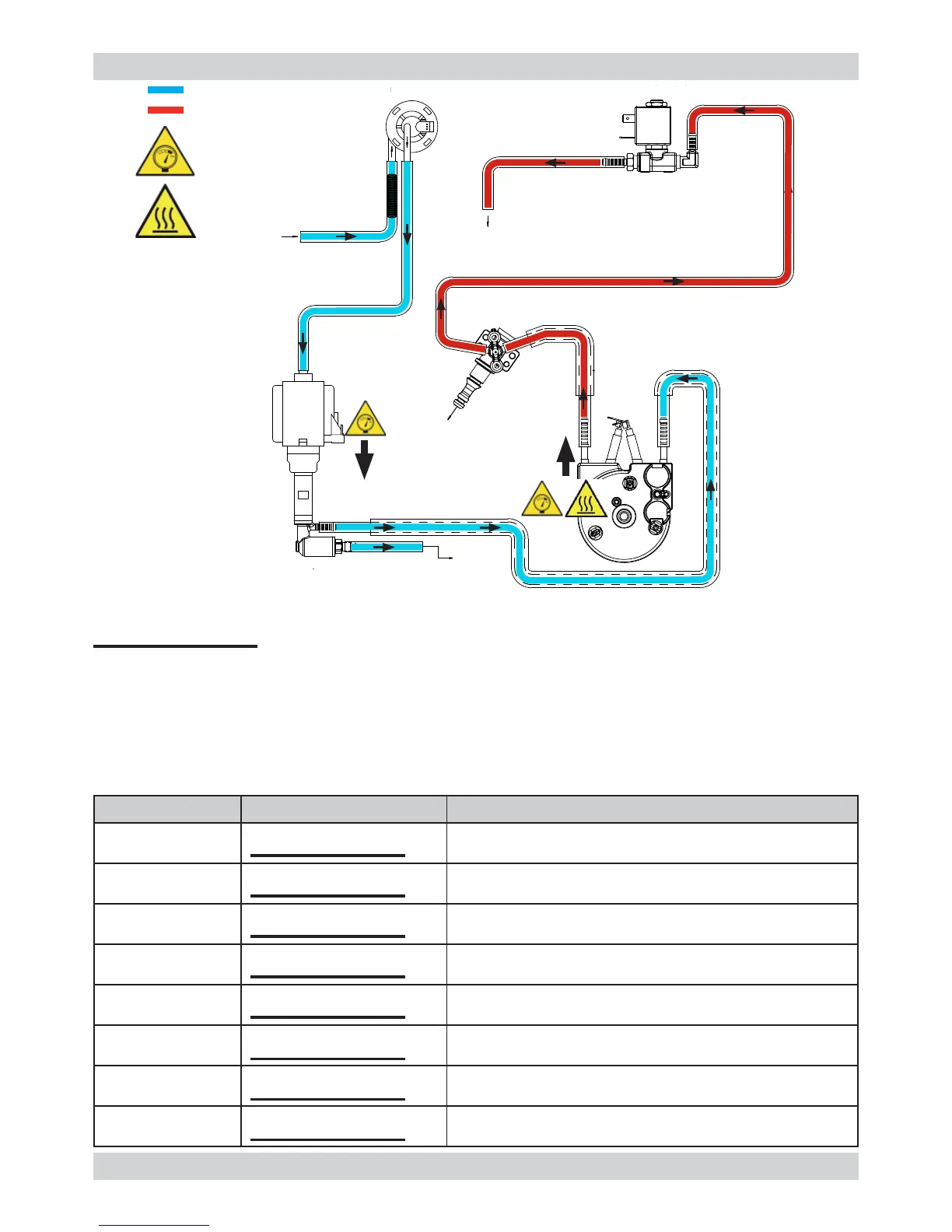

Pump
Safety valve
Water
discharge
Steam pipe
Water tank
Two-way solenoid valve
Brewing Unit
Flowmeter
Boiler
Water
Hot water /steam
From this point circuit
High temperaure
From this point circuit
in pressure
Flowmeter
Steam and hot water
Two-way solenoid valve
Pump
Brewing Unit
Boiler
Safety valve
Water
discharge
Water tank
Image 1

Gaggia Anima Specifications

General

Product type	Espresso machine
Capacity in cups	- cups
Coffee input type	Coffee beans, Ground coffee
Coffee maker type	Fully-auto
Country of origin	Italy
Appliance placement	Countertop
Water tank capacity	1.8 L
Coffee beans capacity	250 g
Maximum operating pressure	15 bar
Number of grinder settings	5
Reservoir for brewed coffee	Cup
Number of temperature settings	3
Adjustable coffee spout height range	110 - 150 mm
Control type	Buttons
Display type	LCD
Product color	Black
Housing material	Acrylonitrile butadiene styrene (ABS), Stainless steel
Multi beverage	-
Quantity per pack	1 pc(s)
AC input voltage	230 V
AC input frequency	50 Hz
Power consumption (standby)	1 W

Weight and Dimensions

Depth	430 mm
Width	221 mm
Height	340 mm
Weight	7900 g
