GAGGIA ANIMA 01 INTRODUCTION
Pag. 5/6

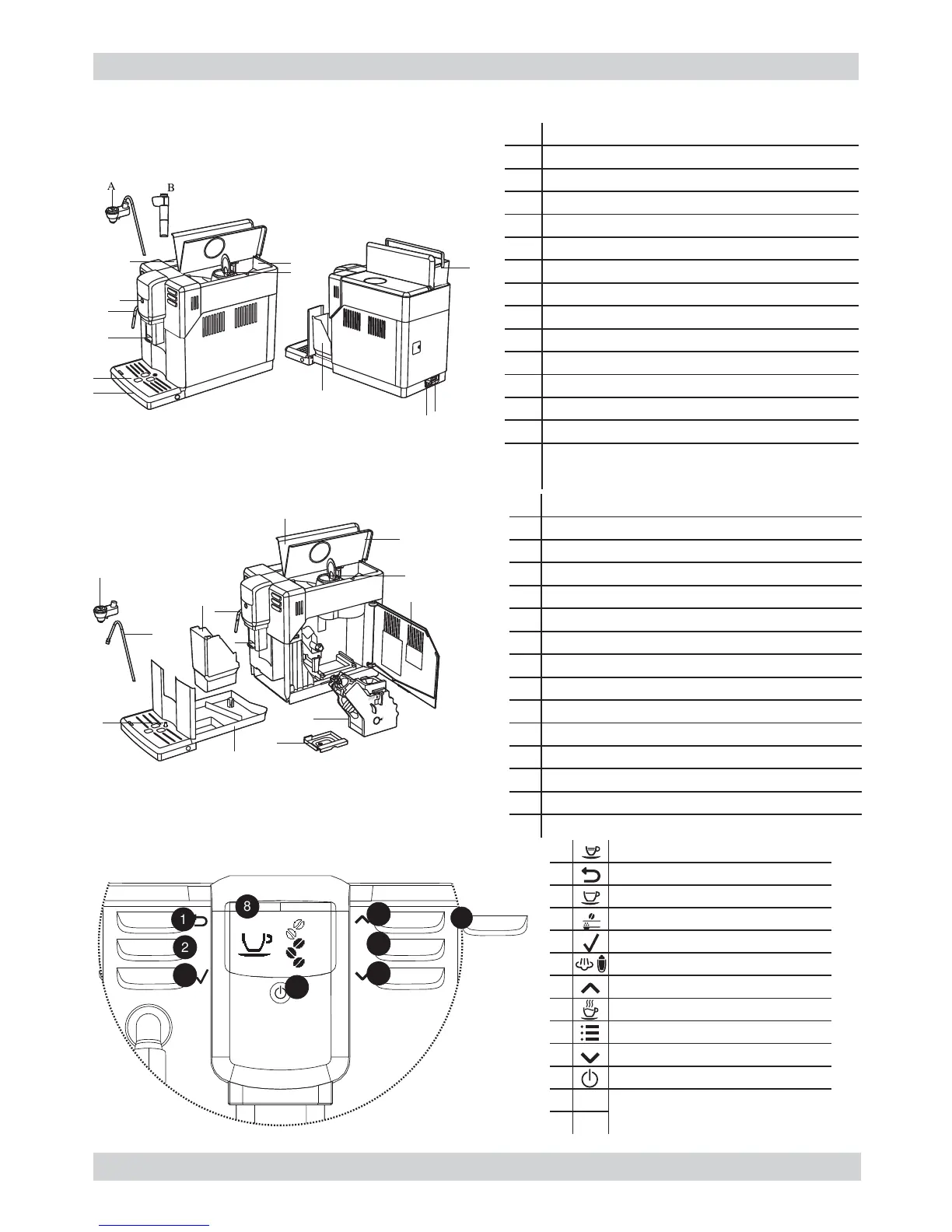

1.6.3. External machine parts Incanto AMF CMF
1 ESPRESSO button
ESC button
2 ESPRESSO LUNGO button
3 AROMA STRENGTH button
OK button
4 STEAM or MILK FROTH button
UP button
5 HOT WATER button
6 MENU button
DOWN button
7 STAND-BY button
8 Display In the example:
Main menu; ready for brewing
1 STAND-BY button
2 Water tank seat
3 Coffee bean hopper
4 Pre-ground coffee compartment
5 Removable water tank
6 Main switch
I. ON
0. OFF
7 Power cord socket
8 Coffee grounds drawer
9 Drip tray
10 Drip tray grill
11 Coffee dispensing spout
12 Steam/hot water dispensing spout
13A Automatic milk frother (AMF)
13B
Classic milk frother (CMF)
1 Water tank lid
2 Coffee bean hopper lid
3 Pre-ground coffee compartment lid
4 Service door
5 Coffee residues drawer
6 Brew group
7 Coffee dispensing spout
8 Drip tray
9 Coffee grounds drawer
10 ‘Drip tray full’ indicator
11 Steam/hot water dispensing spout
Steam wand (fi xed)
Rubber grip
12 Automatic milk frother top
13 Milk frother suction tube
Main components
Main removable parts
Control buttons and display CMF and AMF
AMF
M
A
X
2
11
10
9
1
12
3
4
13
13
5
8
6
7
8
9
4
1
5
6
7
2
3
10
11
13
12
P
U
S
H
N
A
B
1
8
2
3
4
5
6
7
ESPRESSO
ESPRESSO LUNGO
AROMA STRENGTH
STEAM
HOT WATER
MENU
4
MILK FROTH
