3E1151SmartScale800UserManual



 37



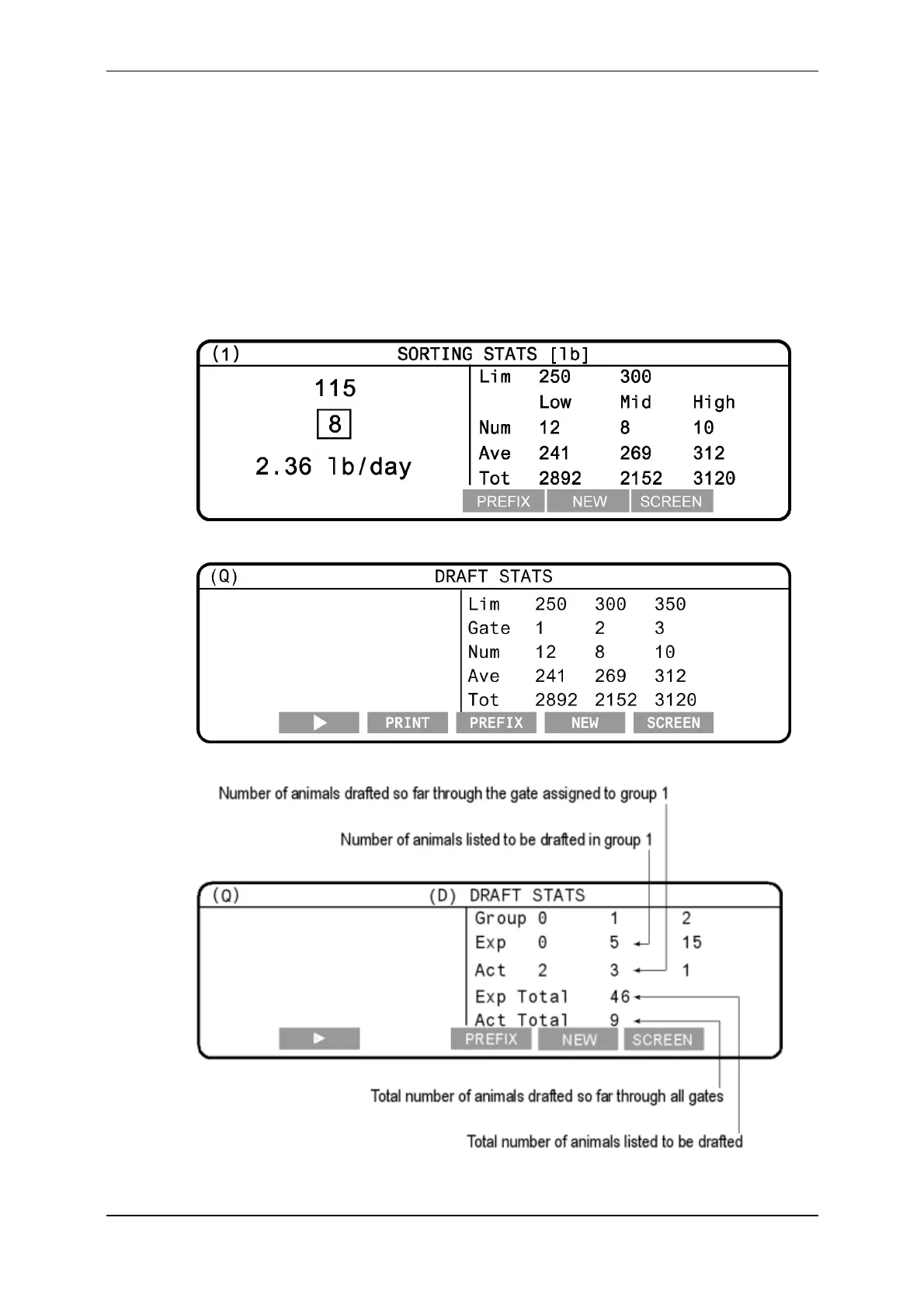

Sortstatistics

TheSortingStatsscreendisplaysif:

 sortingisturnedon,and

 youareineitherautomaticormanualweighingmodes

Thedetailsonthelowerscreenchangedependingonthesortingmodeselected.

Thescreenshowsthenumber,averageandtotalweightoftheanimalsineach

sortingcategoryaswellasthegatethroughwhichtheanimalwassorted.The

followingscreenshowsthedetailsforthreewaysorting.



Ifyouaresortingfourwaysormore,thestatisticsscreendisplaysasshown:



IfyouaresortingbySortList,theStatisticsscreenchangesto:



Note:
