G1000 NXi System Maintenance Manual Page 93

King Air 300 Series Revision 1

190-00716-N1

Interface Confirmation

Lightning System Configuration Load Confirmation

Coordinate the StormScope configuration with Section 8.2 “Stormscope Functional Check”.

1. With PFD1 in configuration mode, use the PFD1 large FMS knob to select OTHER and

the Stormscope configuration page.

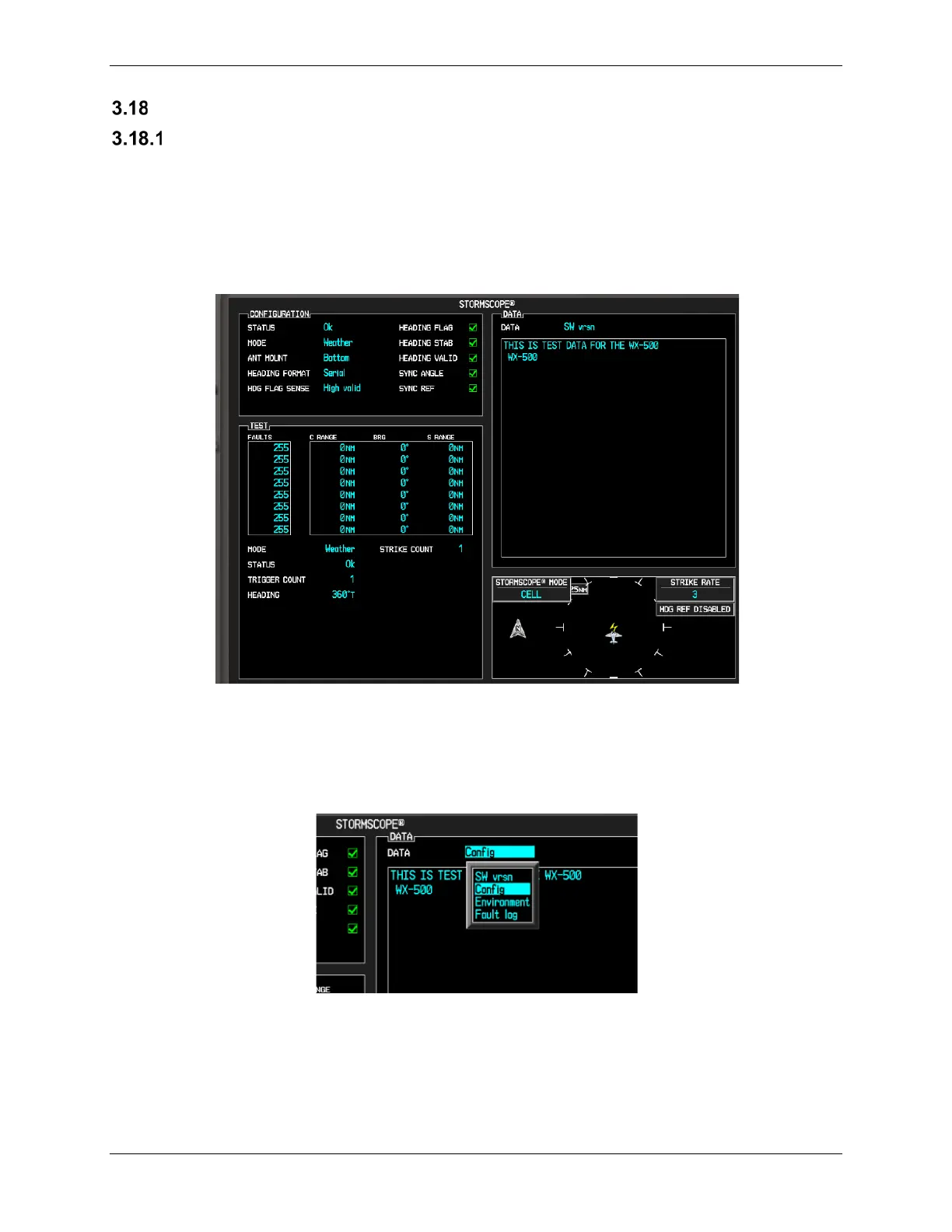

Figure 3-13, Stormscope Configuration Page

2. Activate the cursor to highlight the DATA field. Use the small FMS knob to open the drop

down menu then select ‘Config’ and press ENT key on the PFD1.

Figure 3-14, Stormscope Configuration
