G1000 NXi System Maintenance Manual Page 39

King Air 300 Series Revision 1

190-00716-N1

GDU 1050A and GDU 1550 Displays

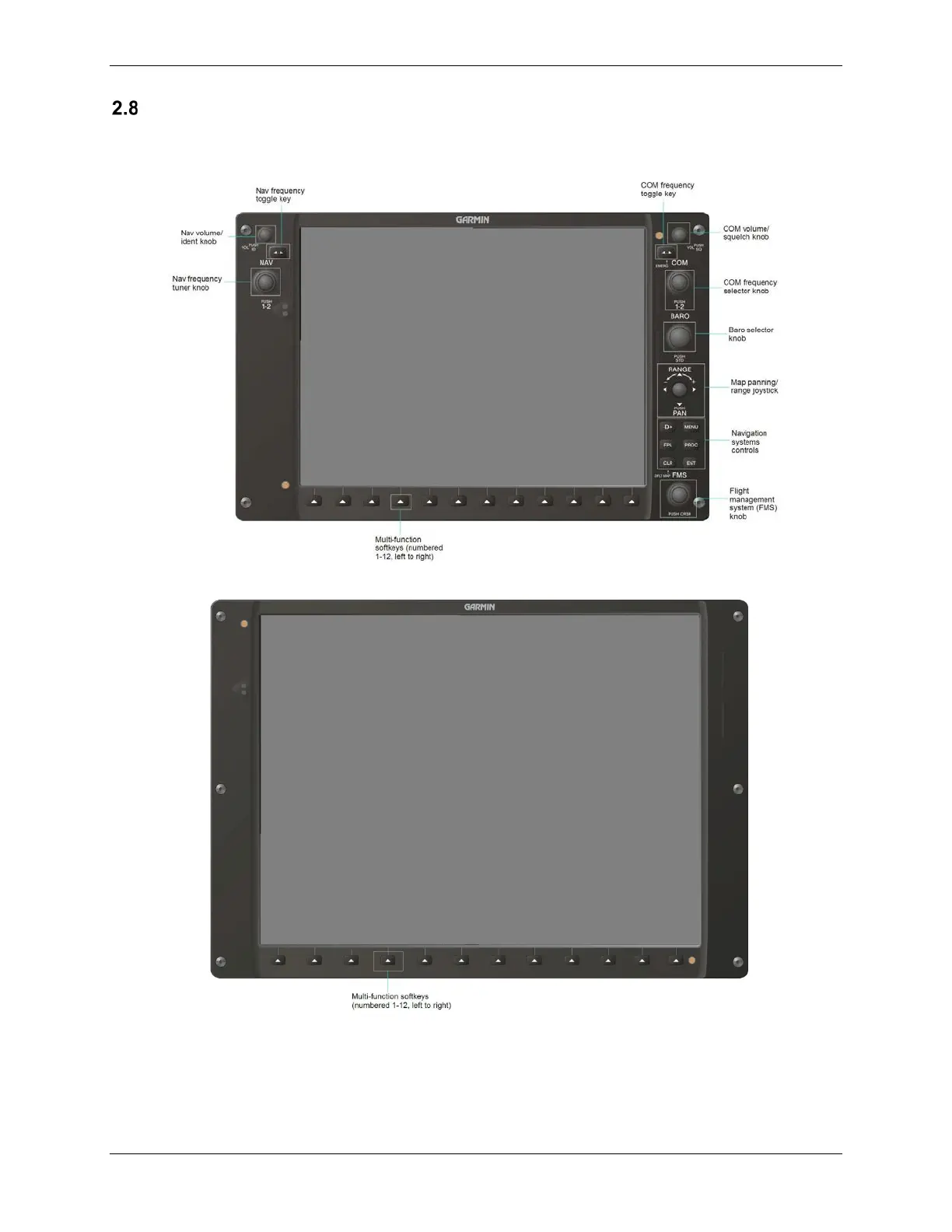

Figure 2-31 and Figure 2-32 provide identification of the GDU 1050A PFD and GDU 1550 MFD

controls.

Figure 2-31, GDU 1050A Control Interface

Figure 2-32, GDU 1550 Control Interface
