Garmin G1000 Cockpit Reference Guide

Garmin G1000 Cockpit Reference Guide for the Socata TBM 850
190-00708-00 Rev. A
10-14
SECTION 10 – HAZARD
AVOIDANCE
Displaying Terrain and Obstacles on the
Navigation Map
1) With the Navigation Map displayed, select the MAP
Softkey.
2) Select the TERRAIN Softkey. Terrain and obstacle
proximity is now displayed on the map.
Unlighted Obstacle
(Height is less than
1000’ AGL)
Lighted Obstacle
(Height is less than
1000’ AGL)
Unlighted Obstacle
(Height is greater than
1000’ AGL)
Lighted Obstacle
(Height is greater than
1000’ AGL)
Potential Impact Points

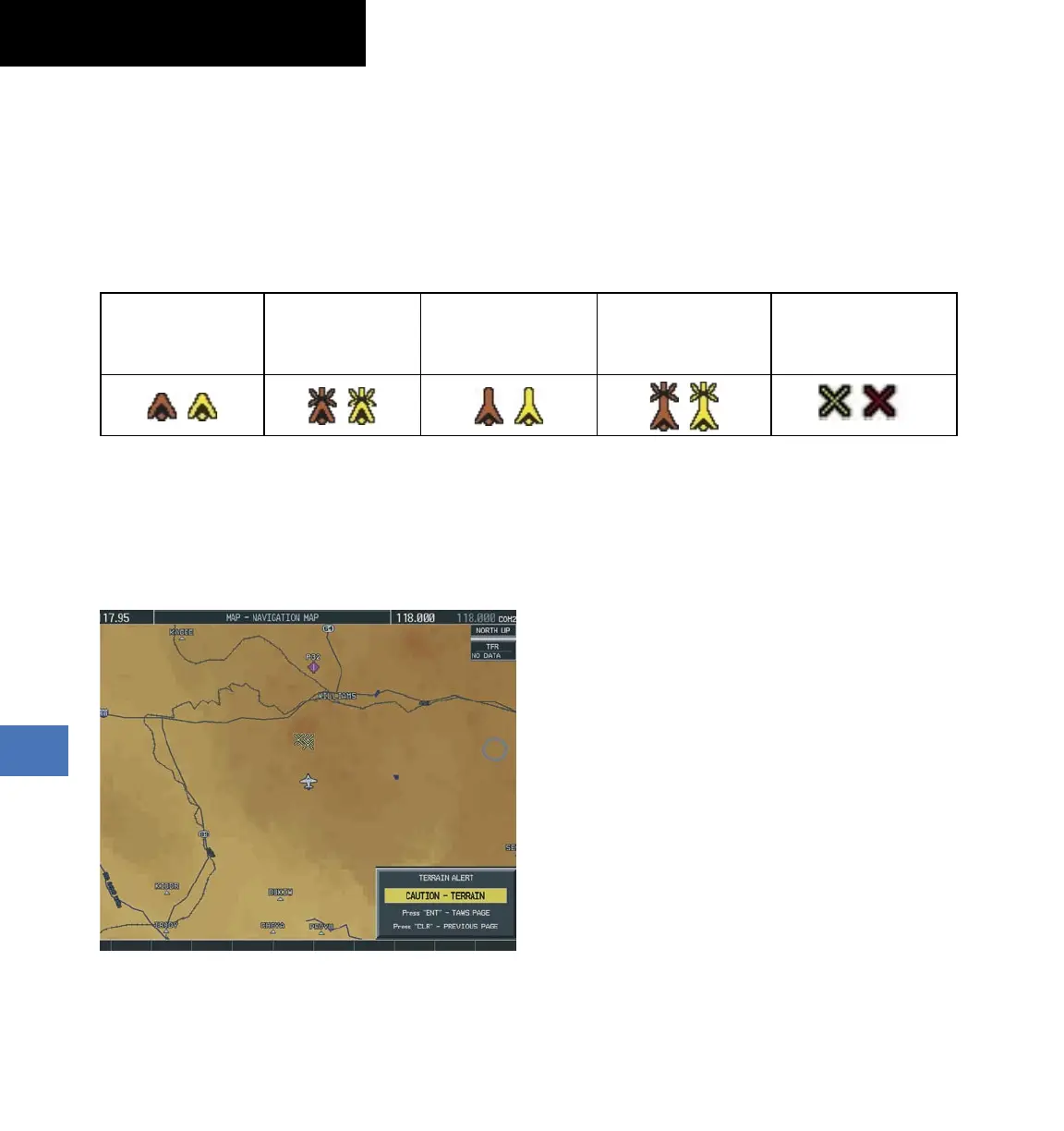

Figure 10-22 TAWS Symbols
Pop-up Alerts
When the Navigation Map Page is displayed, and a
terrain or obstacle alert is issued, a pop-up window is
displayed with the appropriate alert.
Figure 10-23 Alert Pop-Up
Press the ENT Key to display the TAWS Page, or press
the CLR Key to remain on the Navigation Map Page.

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
