Garmin G1000 Cockpit Reference Guide

Garmin G1000 Cockpit Reference Guide for the Socata TBM 850
190-00708-00 Rev. A
1-11
SECTION 1
SYSTEM OVERVIEW
0 — 7
Use numbers to enter code
BKSP
Removes numbers entered, one at a time
IDENT
Activates the Special Position Identification (SPI) pulse for 18 seconds,
identifying the transponder return on the ATC screen
TMR/REF
Displays Timer/References Window
NRST
Displays Nearest Airports Window
MSG
Displays Messages Window
1.5 MFD SOFTKEY MAP

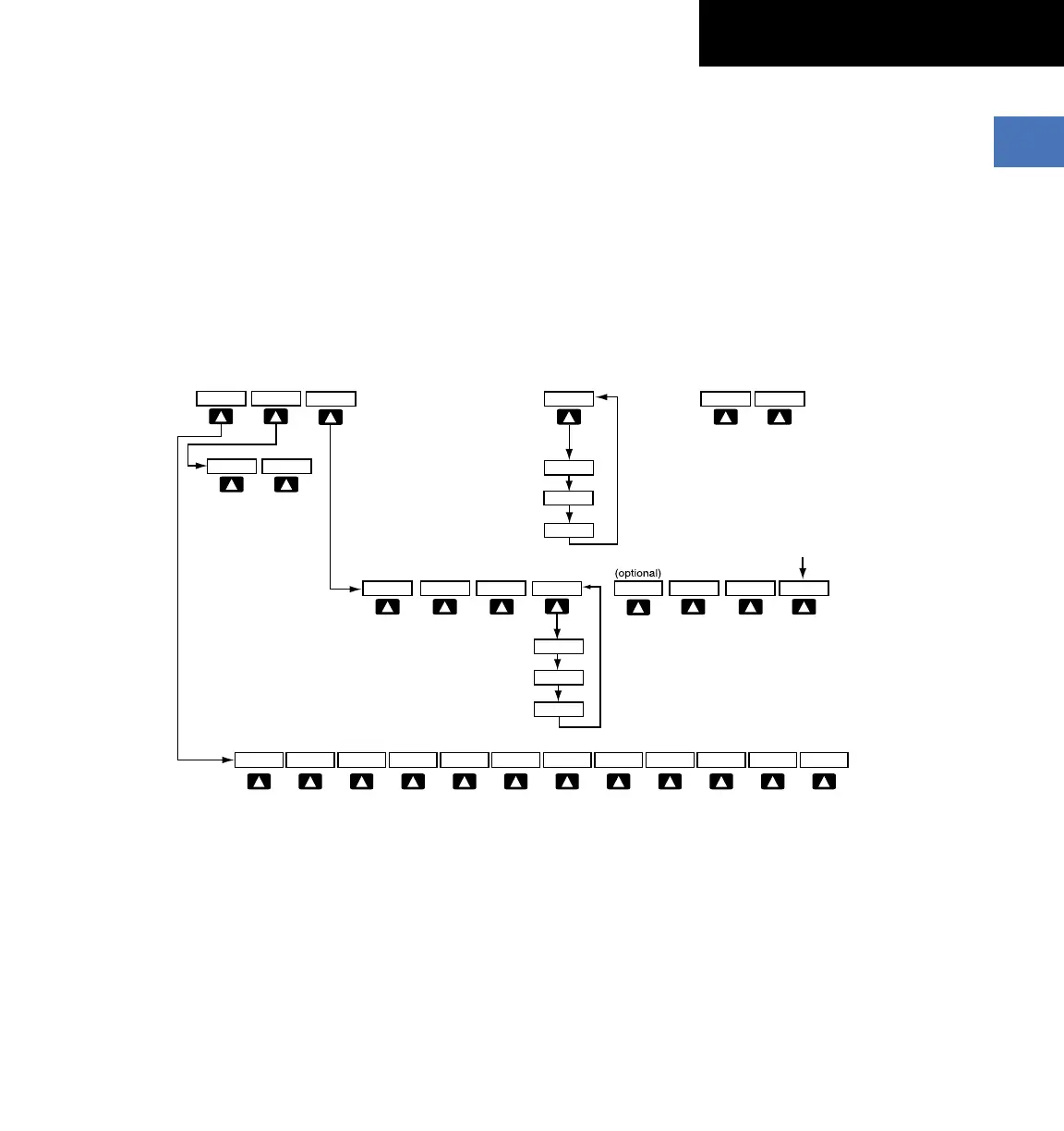

Figure 1-9 MFD Softkeys
MAP
DCLTR
TRAFFIC
TOPO
BACK
TERRAIN
DCLTR-2
DCLTR-3
DCLTR-1
Select the BACK Softkey on this level to
return to the top softkey level.
NEXRAD
XM LTNG
(optional)(optional)
CAS
SHW CHRT
CHKLIST
(optional)(optional)
AIRWAYS
AIRWY LO
AIRWAY HI
AIRWY ON
CAS ↓
CAS ↑
SYSTEM
SYSTEM
CAS
MAP
ELEC
CHKLISTFUEL GEN
STRMSCP
RA TEST
SYSTEM
Accesses the Synoptics page softkeys
RA TEST
Displays a value of 50 feet in the RAD ALT window indicating the system is
funcitoning correctly.
ELEC
Displays the Electrical Synoptics Page
FUEL
Displays the Fuel Synoptics Page
GEN
Displays the General Synoptics Page for the anti-ice system and doors

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
