Garmin G1000 Cockpit Reference Guide

Garmin G1000 Cockpit Reference Guide for the Socata TBM 850
190-00708-00 Rev. A
2-9
SECTION 2
FLIGHT INSTRUMENTS
2.9 WIND DATA
When the window is selected for display, but wind
information is invalid or unavailable, the window shows
“NO WIND DATA”. Wind data can be displayed in three
different ways:
• Wind direction arrows with headwind and crosswind
components (Option 1)
• Wind direction arrow and speed (Option 2)
• Wind direction arrow with direction and speed
(Option 3)

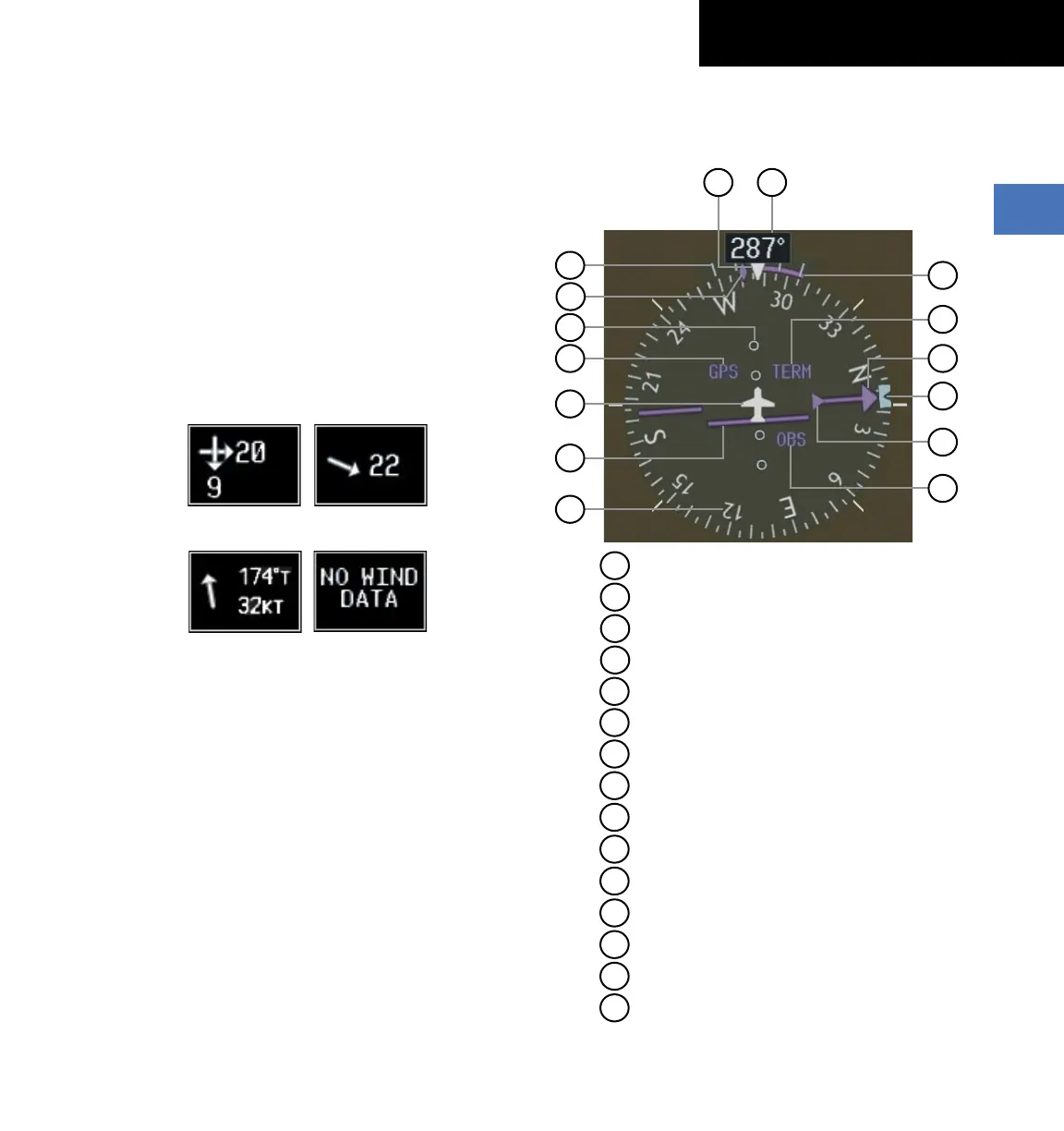

Option 1 Option 2
Option 3 No Data
Figure 2-19 Wind Data Window
Displaying wind data:
1) Select the PFD Softkey.
2) Select the WIND Softkey to display wind data below
the Selected Heading.
3) Select one of the OPTN softkeys to change how
wind data is displayed.
4) To remove the Wind Data Window, select the OFF
Softkey.
2.10 HORIZONTAL SITUATION INDICATOR
(HSI)
Figure 2-20 Horizontal Situation Indicator
9
15
10
7
6
5
4
3
1
8
14
13
12
11
Heading Bug
3
4
7
5
6
8
1
Turn Rate Indicator
Navigation Source
Course Deviation Indicator
TO/FROM Indicator
Course Pointer
Rotating Compass Rose
12
11
13
14
15
10
9
OBS Mode
Lateral Deviation Scale
Flight Phase
Aircraft Symbol
Lubber Line
Heading
Turn Rate and Heading Trend Vector
2
2
Ground Track Bug
