Garmin GNS 430 - Satellite Status Page

GNS 430 Pilot’s Guide and Reference
SECTION 3
NAV PAGES
3-22
3.8 SATELLITE STATUS PAGE
The Satellite Status Page (the sixth NAV page) provides
a visual reference of GPS receiver functions, including
current satellite coverage, GPS receiver status, and position
accuracy. The Satellite Status Page (Figure 3-46) is helpful
in troubleshooting weak (or missing) signal levels due to
poor satellite coverage or installation problems.

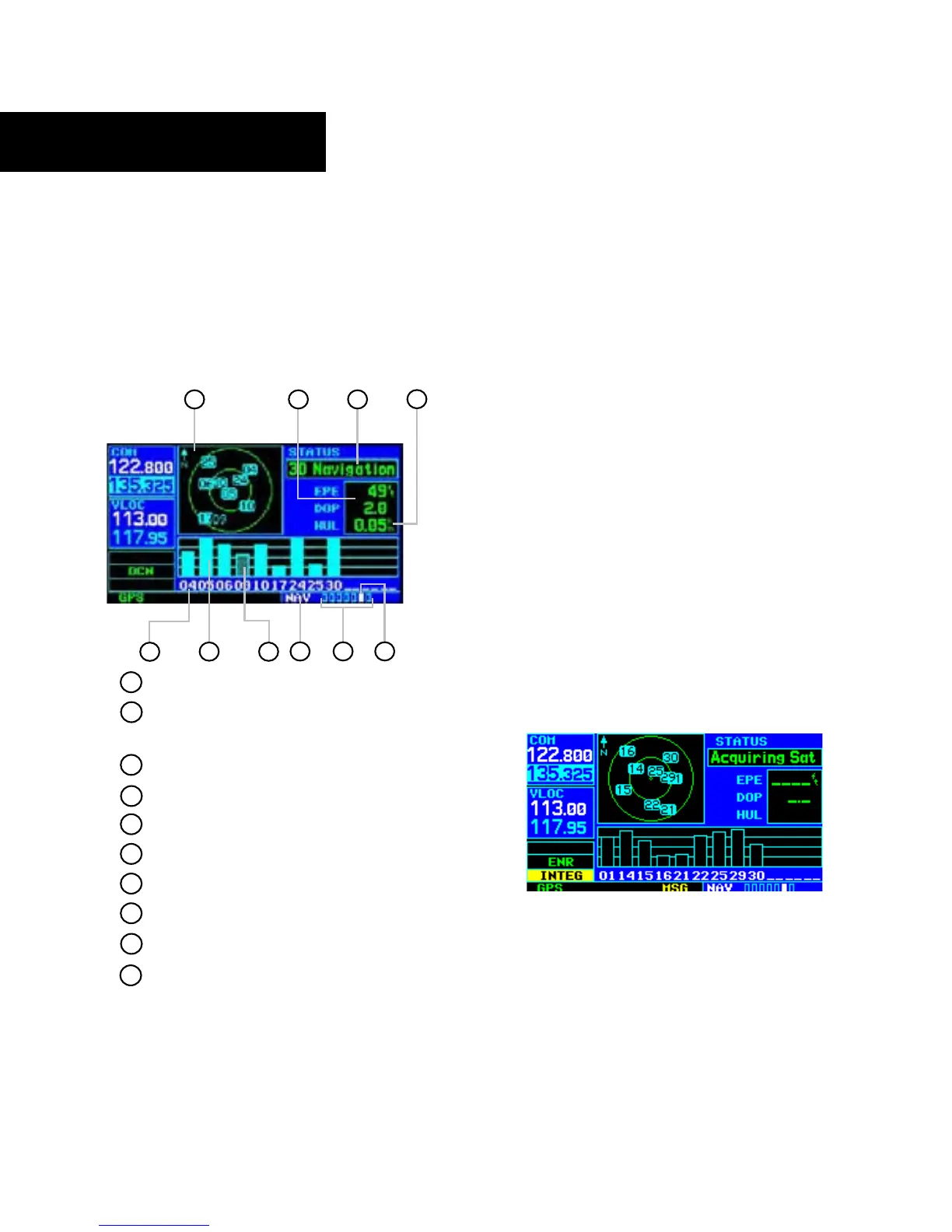

Figure 3-46 Satellite Status Page
5
6
7
1
4
2 3
9
8
10
Sky View
1
Estimated Position Error (EPE) and
Dilution of Precision (DOP)
GPS Receiver Status
3
Horizontal Uncertainty Level (HUL)
4
Satellite ID Numbers
5
Signal Strength Bars
6
Excluded Satellite
7
Current Page Group
8
2
Number of Pages in Current Page Group
9
Positon of Current Page within Current
Page Group
10
As the GPS receiver locks onto satellites, a signal
strength bar appears for each satellite in view, with the
appropriate satellite number (01-32) underneath each
bar. The progress of satellite acquisition is shown in three
stages:
• No signal strength bars - The receiver is looking
for the satellites indicated.
• Hollow signal str
ength bars - The receiver has
found the satellite(s) and is collecting data (Figure
3-47).
• Solid signal str
ength bars - The receiver has
collected the necessary data and the satellite(s) is
ready for use.
• Checkered signal strength bars - Excluded
satellites (Figure 3-46)
The sky
view display (at top left corner of the page)
shows
which satellites are currently in view, and where
they are. The outer circle of the sky view represents the
horizon (with north at top of the page); the inner circle
45° above the horizon; and the center point directly
overhead.
Figure 3-47 Hollow Signal Strength Bars
