Installation
MX20 Installation Manual 560-1025-09 Rev E 9

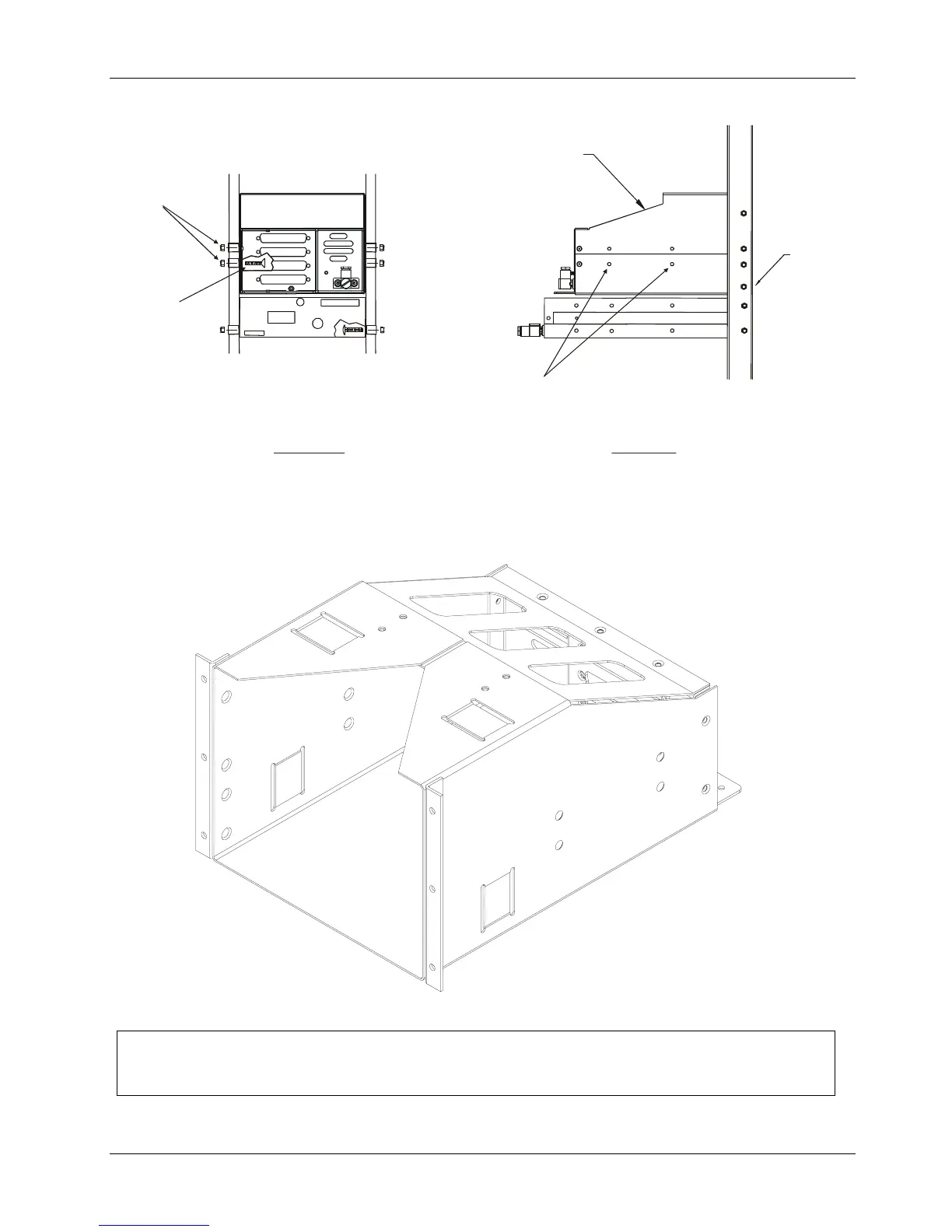

Figure 2-3. Sample GX60 & MX20 Mounting
Figure 2-4. Alternate MX20 Mounting Configuration
NOTE
This configuration utilizes an angle bracket along each side of the mounting tube. The installer must
consider the structural integrity of the installation as defined in AC43.13.2a Chapter 1.
REAR VIEW
SIDE VIEW
INSTRUMENT
PANEL
SECURED TO VERTICAL
SUPPORT AT THIS POINT
8 PLACES EACH SIDE MAX.
MOUNTING TUBE
P/N 310-0429-00
6-32
LOCK NUT
6-32
FLAT HEAD
SCREW
