Installation
16 560-1025-09 Rev E MX20 Installation Manual
2.5.2 MX20 I/O Data Port Configuration
The I/O product variation of the MX20 supports an array of additional I/O capabilities on connector J2
as shown below. Note that the hardware connected to the MX20 I/O ports must be connected as shown
in Table 2-2, as reconfiguration by software is not available. See the sample wiring diagrams and
connector pin outs in section 2.5.7 for detailed connections. One possible configuration is shown in
Figure 2-11.

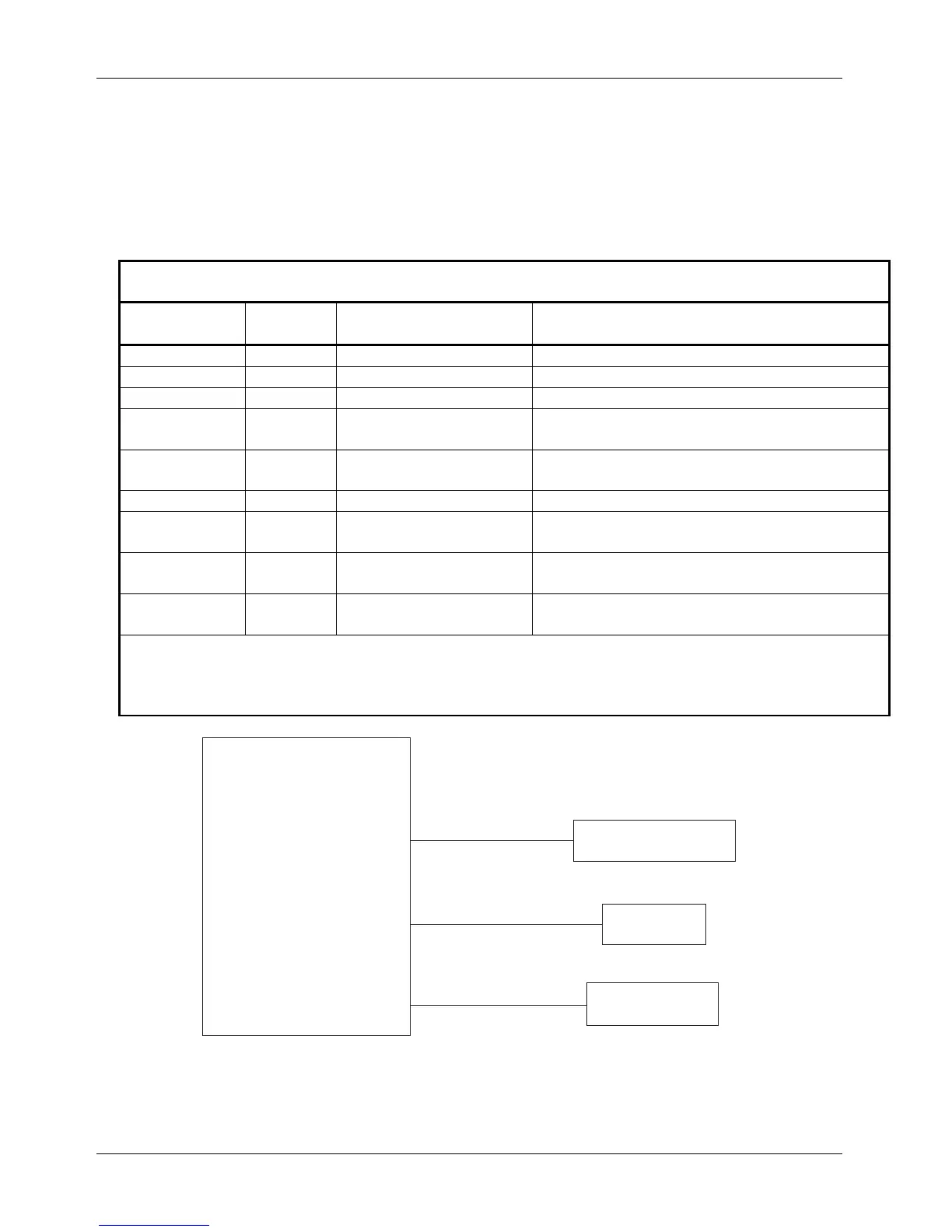

Table 2-2. MX20 I/O Data Port Configurations
Port Type
(Count)
Direction Data Allocation
ARINC 453 (1) Input Weather Radar Display ART2000 Radar, ART2100, GWX 68, RS-181A
ARINC 429 (1) Output Weather Radar Control ART2000 Radar, ART2100, GWX 68, RS-181A
Discrete (1) Output Weather Radar Power ART2000 Radar, ART2100, GWX 68, RS-181A
ARINC 429 (1) Input Traffic Data
L-3 (Goodrich) SKY497, SKY899, GTX330,
KMH820 IHAS
Discrete (2) Output SkyWatch Mode Control
L-3 (Goodrich) SKY497, SKY899, GTX330,
KMH820 IHAS
J1 RS-232 Input Ryan TCAD Ryan 9900B/BX
ARINC 453 (1) Input Terrain Data
Landmark8000, KGP560 TAWS, KMH 820
IHAS
ARINC 429 (1) Output Terrain Control
Landmark8000, KGP560 TAWS, KMH 820
IHAS
ARINC 429 (1) Input Terrain Status
Landmark8000, KGP560 TAWS, KMH 820
IHAS
Note 1: The ART2100 is supported when configured to emulate an ART2000. Only ART2000 functions will
be available.
Note 2: MX20 V5.4 or later is required for the KMH 820 IHAS
MX20
I/O Port 1
I/O Port 2
ARINC 453
ARINC 429
ARINC 429
ART2000/2100,
GWX 68, RS-181A
Skywatch
Connector J2
I/O Port 3
(TAWS)
Landmark 8000
KGP560 TAWS
ARINC 453
ARINC 429
Figure 2-11. Data I/O Port Description
