Installation

18 560-1025-09 Rev E MX20 Installation Manual

2.5.7 Sample Wiring Diagrams

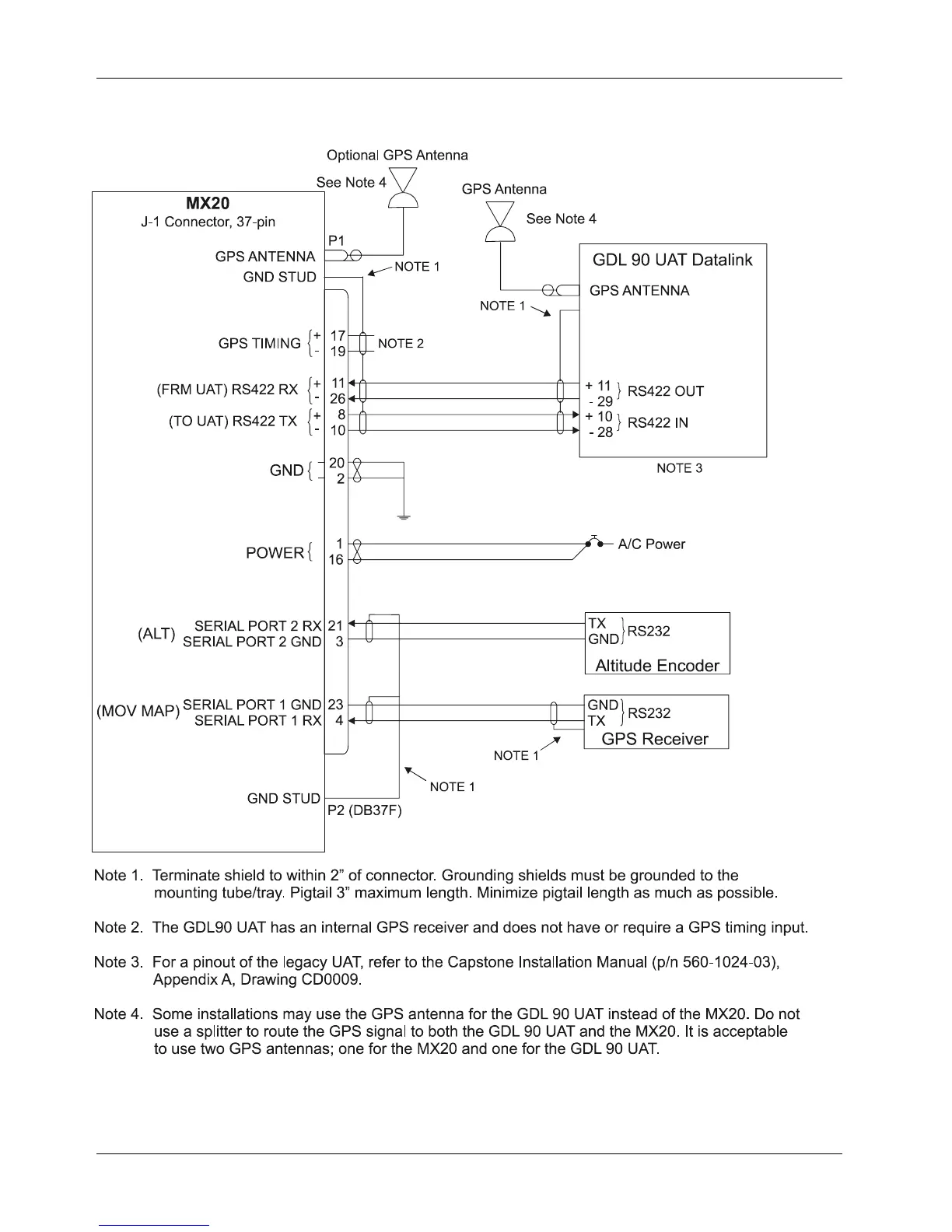

Figure 2-12. Sample System Wiring Diagram with UAT (Internal GPS Version)
