Installation
10 560-1025-09 Rev E MX20 Installation Manual
Side View
Rear View
Front View
Top View
6.250”
5.000”
8.721”
9.221”
ON
OFF
+

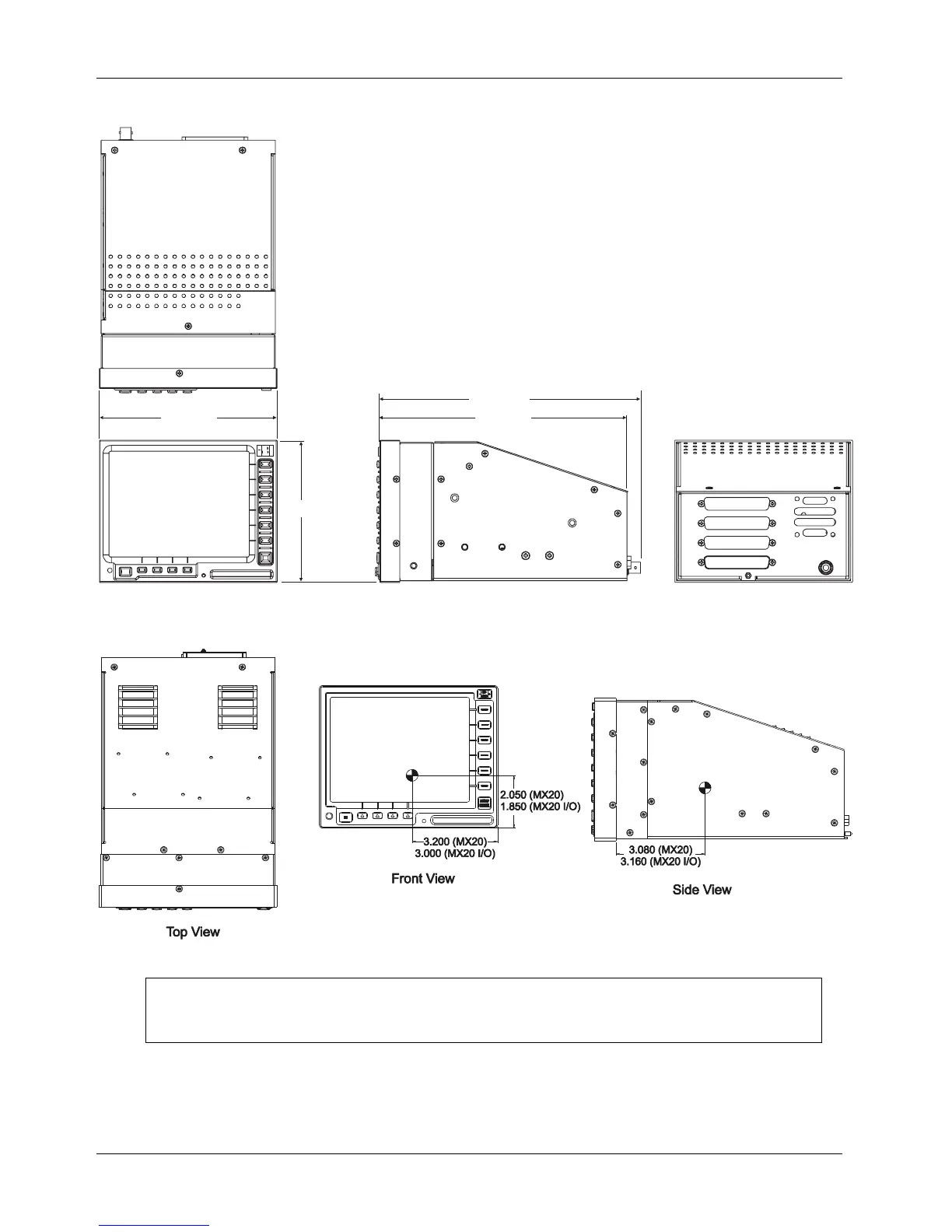

Figure 2-5. MX20 and MX20 I/O Unit Dimensions
Figure 2-6. MX20 and MX20 I/O Center of Gravity
NOTE
Use of mounting tube P/N 310-0429-01, or later FAA approved revision, is recommended for
all installations and is required for helicopter installations.
