Installation
MX20 Installation Manual 560-1025-09 Rev E 13
View A
* GPS Installations Only
See View A
** I/O Connector not shown
Mounting Tube
4-40 x 1/4 Flat
Head Screw (2x)
Washer (2x)
RA Coax Plug
GPS Antenna
Shoulder
Bushing (2x)
37-Pin
D-Sub
Edge Guard (3x)
Wingnut

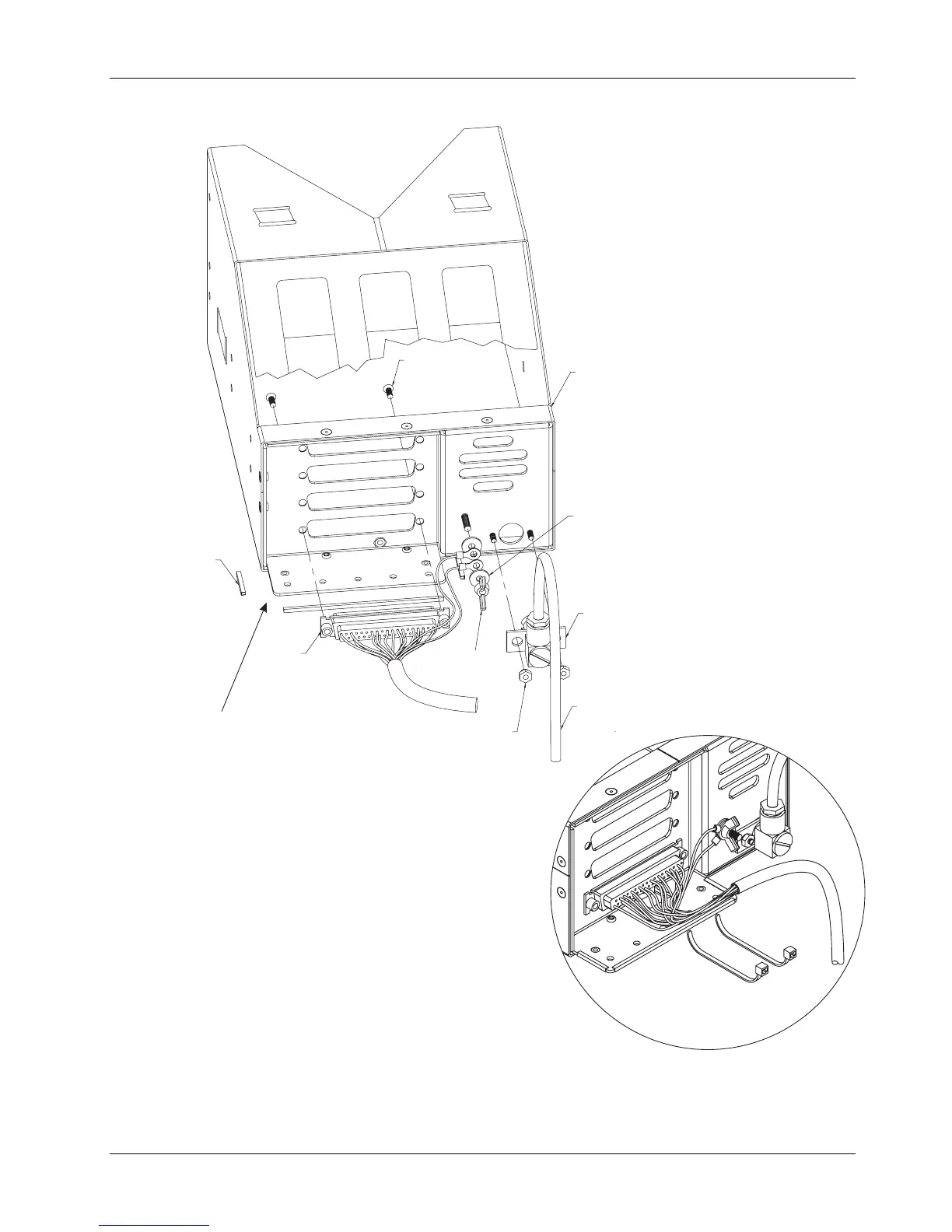

Figure 2-8. MX20 Typical Rear Panel Wiring Connections
