Installation

MX20 Installation Manual 560-1025-09 Rev E 23

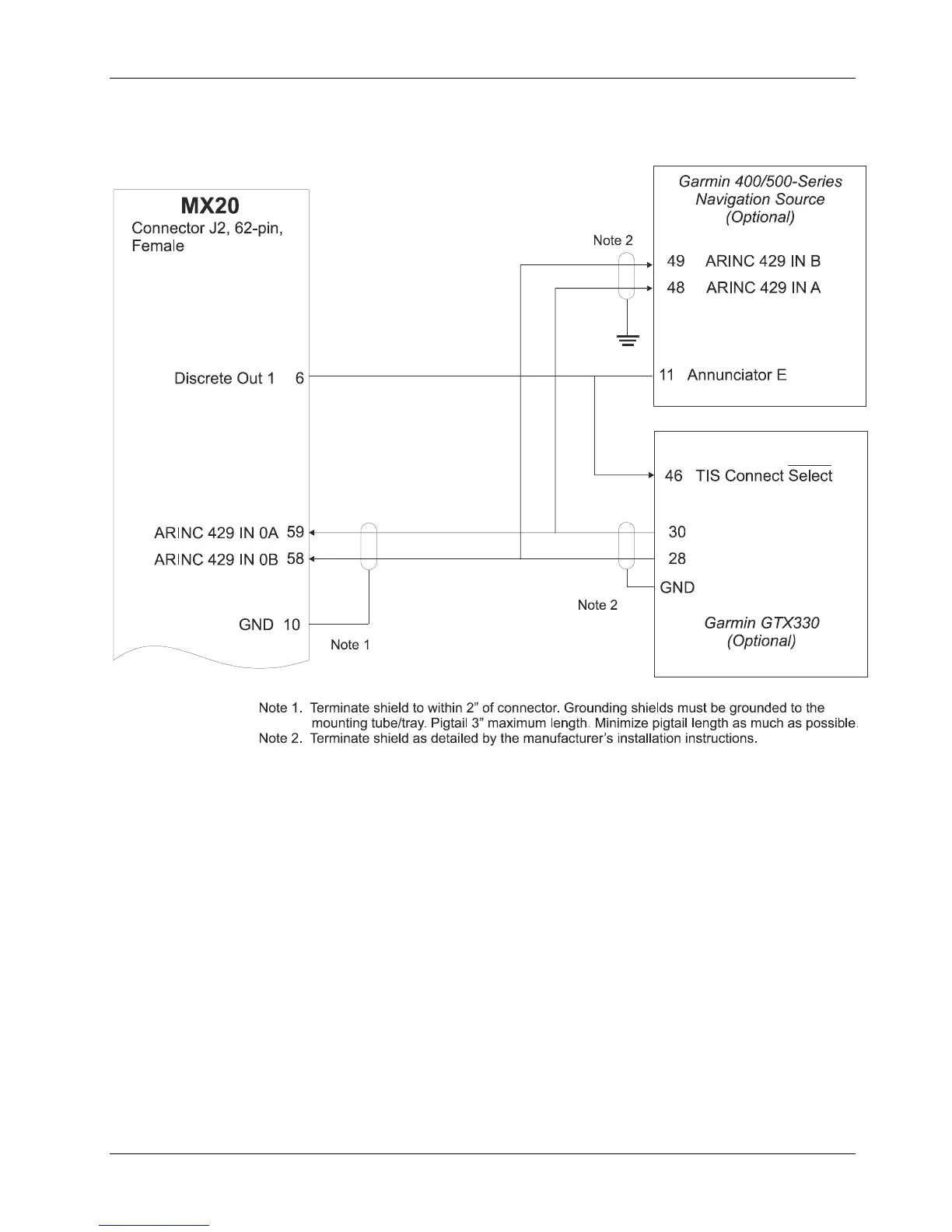

Figure 2-17. Sample System Wiring Diagram of MX20 I/O with Garmin GTX330
