ORIUS ™ 833 User’s Guide Series Rev 3 2-8

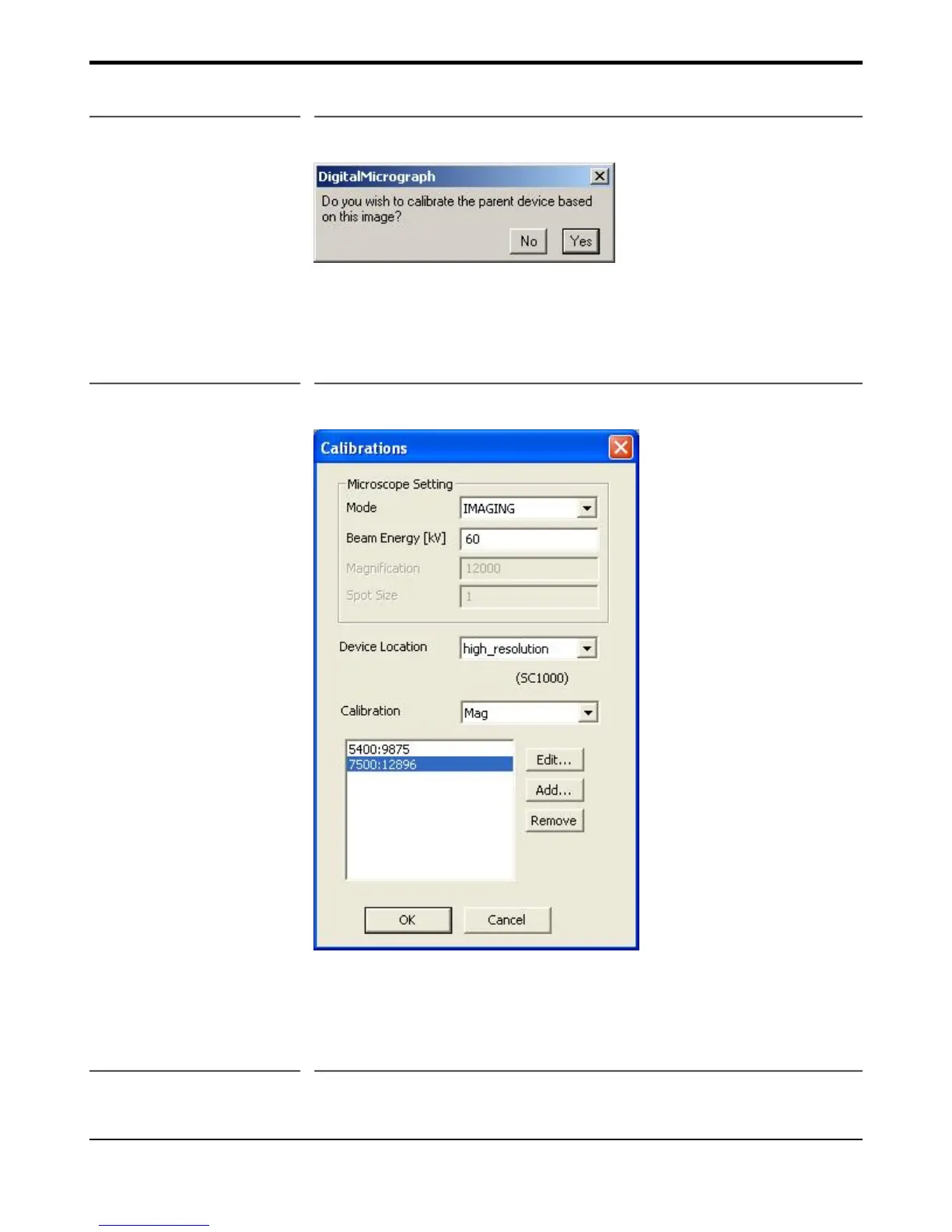

Figure 2-9 Choose YES to complete the calibration
The calibration can be checked by viewing the calibration table. It should contain pairs of value: the nominal
microscope magnification and the calibrated value. To view the magnification table:
• Select “Calibrations” from the “Microscope” menu (Figure 2-5).
Figure 2-10 Magnification table
The first number entry represents the nominal TEM magnification and the second entry is the actual
magnification at the CCD (Figure 2-10)
2.5.2 High magnification
• Record a lattice image of the crystalline sample (Figure 2-11).
