Gatan ORIUS SC 200D - Figure 2-13 High Magnification Calibration Instructions; Figure 2-14 Calibration Window

ORIUS ™ 833 User’s Guide Series Rev 3 2-10
• Press OK to specify the reciprocal unit and the d-spacing (in the
corresponding real units) in the next window that appears (Figure 2-
14).

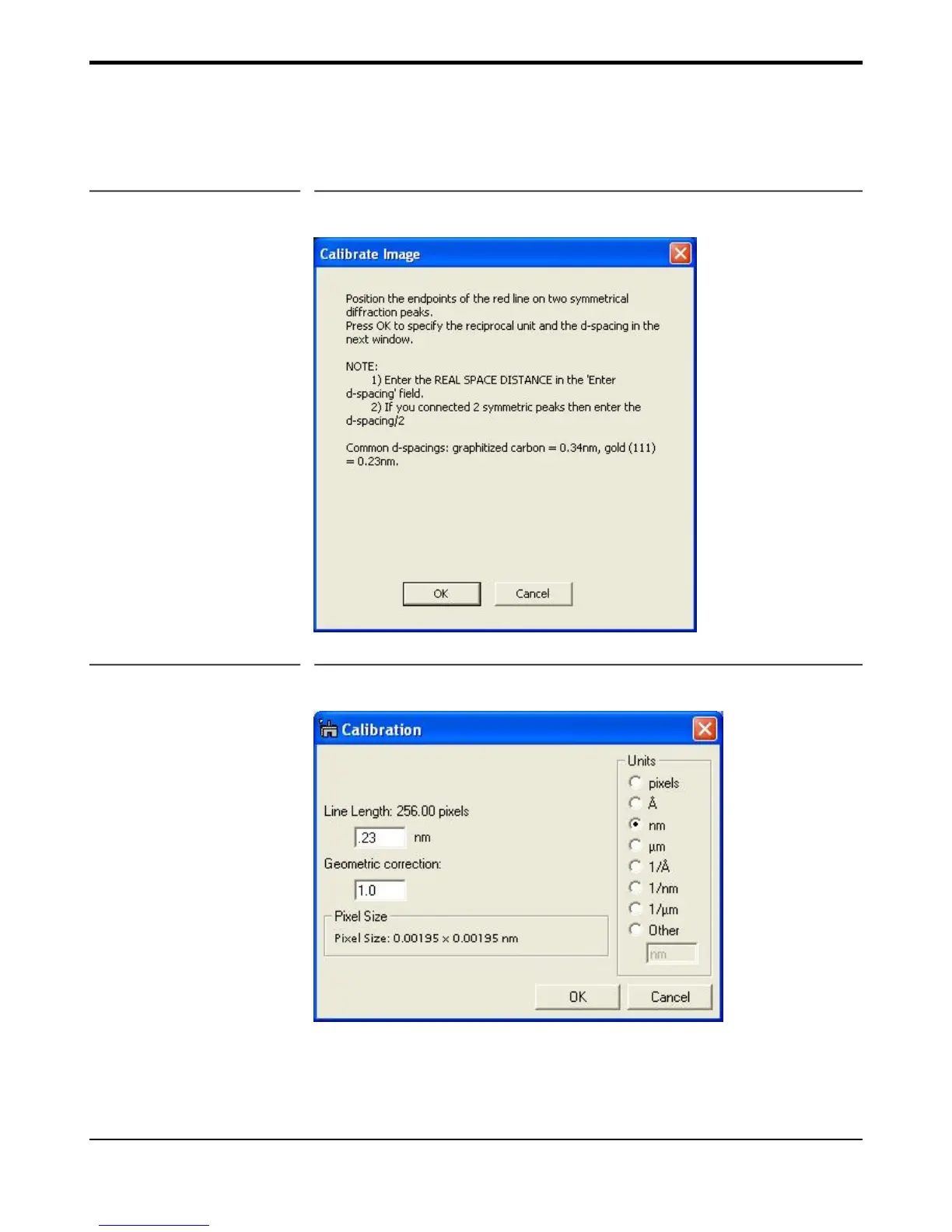

Figure 2-13 High magnification calibration instructions
Figure 2-14 Calibration window
