38
WWW.GATEE.EU
USER GUIDE
4.5 Diagnostic Trouble Codes
All the possible DTC are described on page 49.

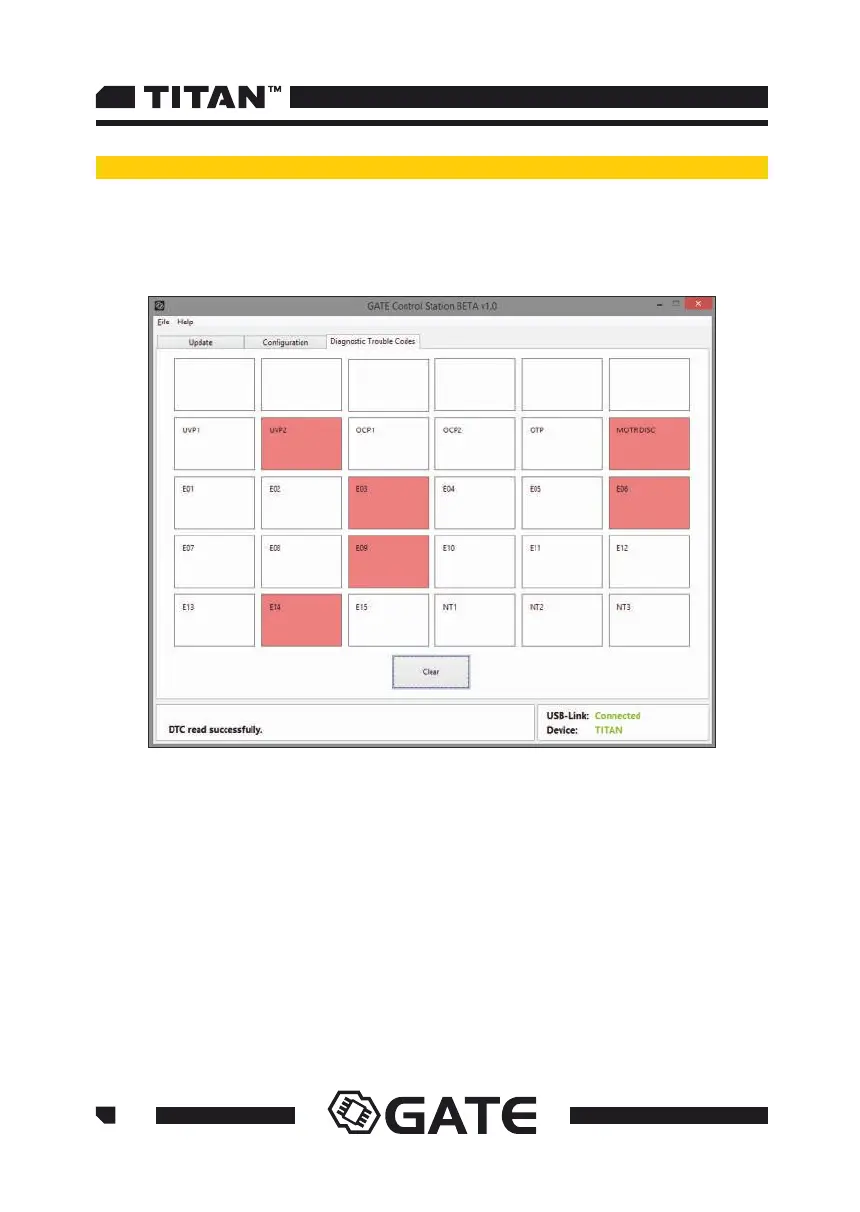

In the Diagnostic Trouble Codes window you can check if there are some errors or
problems concerning the TITAN module. Each error or warning is automatically highlighted
in red as in the screenshot below.
You can clear the codes clicking Clear. Remember to clear DTC after reading. It will help you
in future diagnostic.

Table of Contents

Other manuals for Gate Titan

Preview: User Manual
User Manual101 pages
Preview: Quick Start Guide
Quick Start Guide72 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Gate Titan and is the answer not in the manual?

Gate Titan Specifications

General IconGeneral
MOSFETYes
Battery protectionYes
Trigger sensitivity adjustmentYes
Pre-cockingYes
ROF controlYes
Active brakeYes
Diagnostic systemYes
ProgrammableYes
Cycle DetectionYes
CompatibilityV2 Gearbox
Low current consumption in sleep mode0.2mA
ConnectivityUSB-Link, Blu-Link
Fire ModesSemi, Burst
Bluetooth supportYes
