USER GUIDE

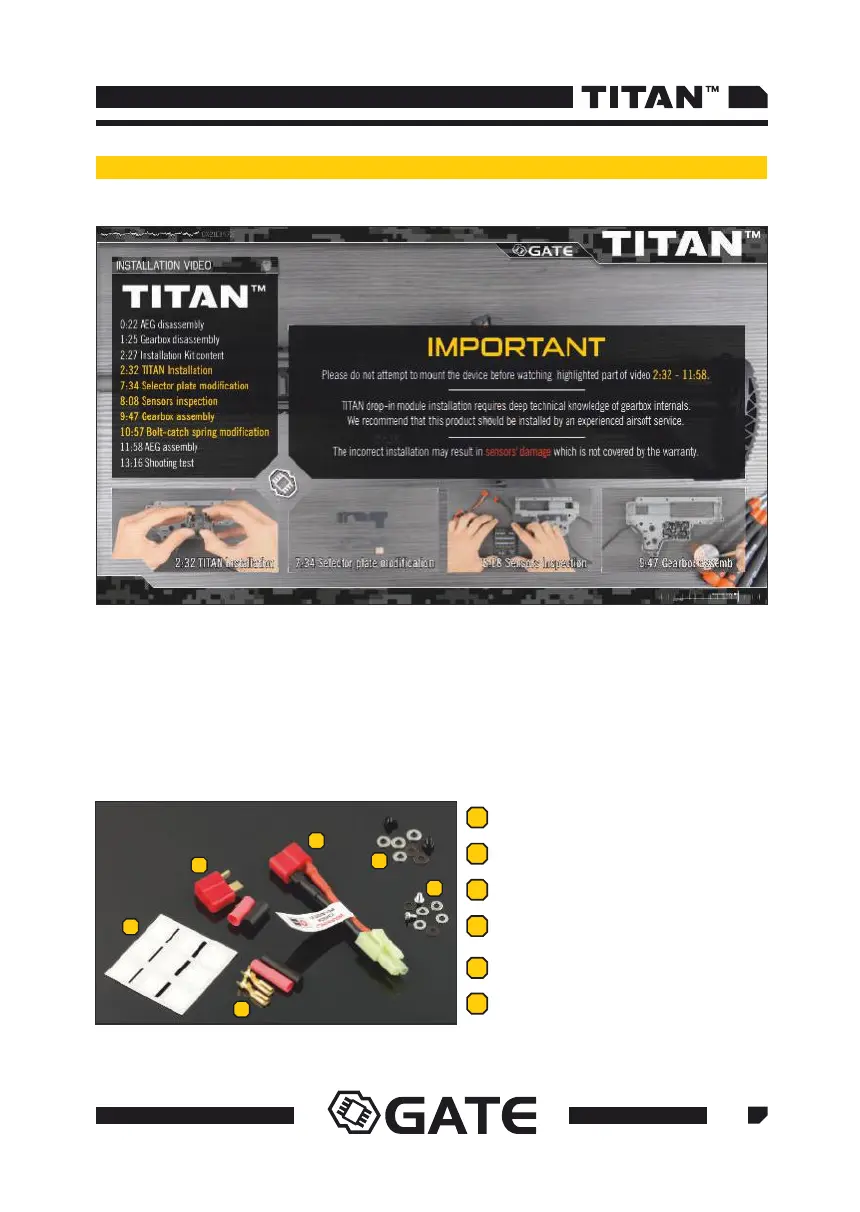

2.4 Installation
Please, watch carefully the installation video:
https://www.youtube.com/gatemovies
Installation Kit contents:
Selector plate stickers
Female deans-t connector
Mini-tamiya adapter
01
02
03
04
05
06
01
02
03
04
05
06
Motor connectors 2.8 x 0.5 mm
[0.11 x 0.02 in]
0.7mm [0.03 in] screw and washers set
0.5mm [0.02 in] screw and washers set
TITAN is an electronic unit installed inside of a gearbox. It replaces the trigger contacts,
cut-off lever and safety lever. TITAN is compatible with most V2 gearboxes. Some gearboxes
might require modification in order to fit the unit.

Gate Titan Specifications

General

MOSFET	Yes
Battery protection	Yes
Trigger sensitivity adjustment	Yes
Pre-cocking	Yes
ROF control	Yes
Active brake	Yes
Diagnostic system	Yes
Programmable	Yes
Cycle Detection	Yes
Compatibility	V2 Gearbox
Low current consumption in sleep mode	0.2mA
Connectivity	USB-Link, Blu-Link
Fire Modes	Semi, Burst
Bluetooth support	Yes
