Gatekeeper Y35 HD v3

To Next Page

To Previous Page

Y35 HD v3

User Manual & Install Guide

142 of 156

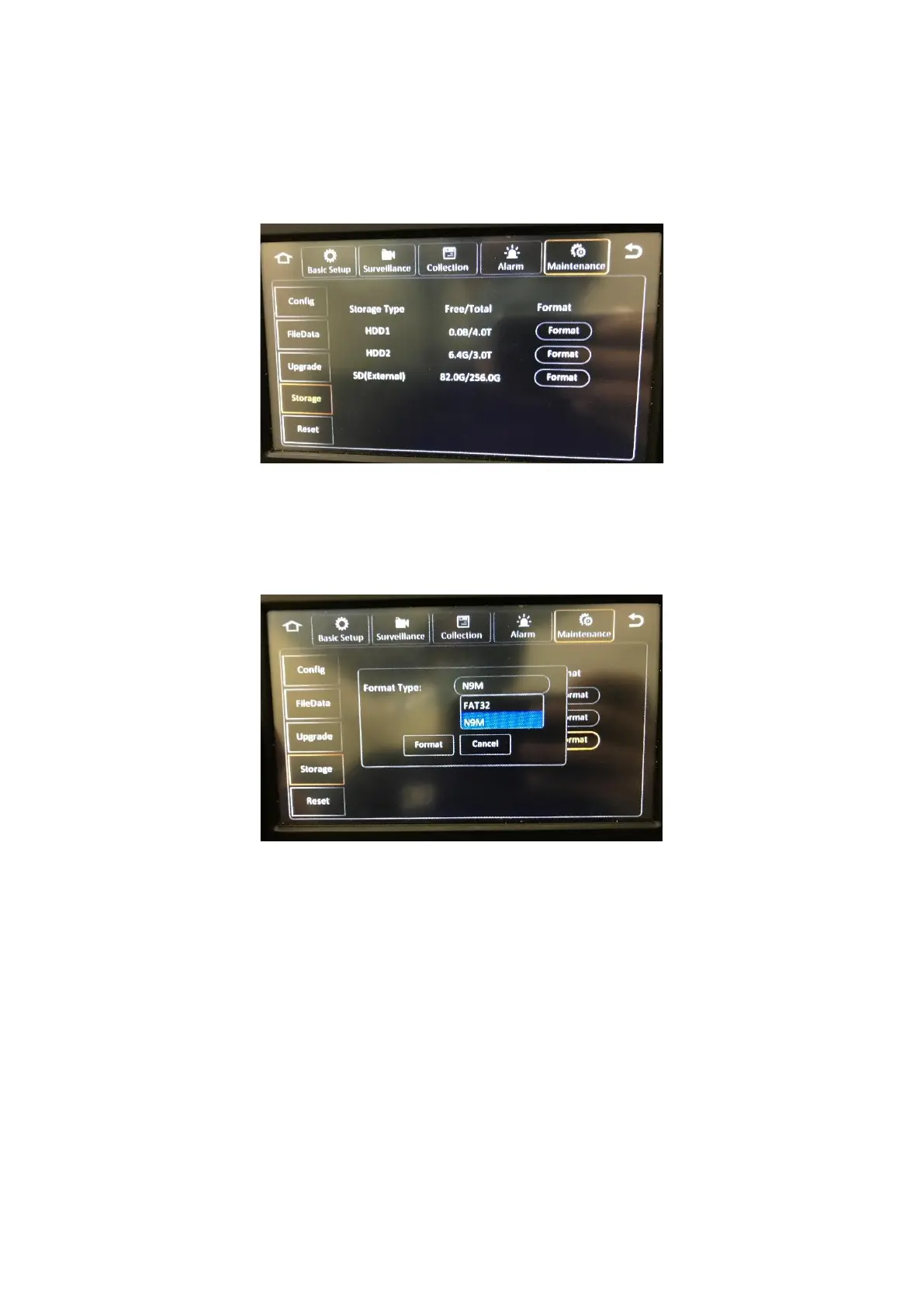

4. Select Storage

5. Click the Format button to the right of SD(External)

6. Use the drop list and select N9M
