Installation
2-4
Roll holder
Roll media
Step 4

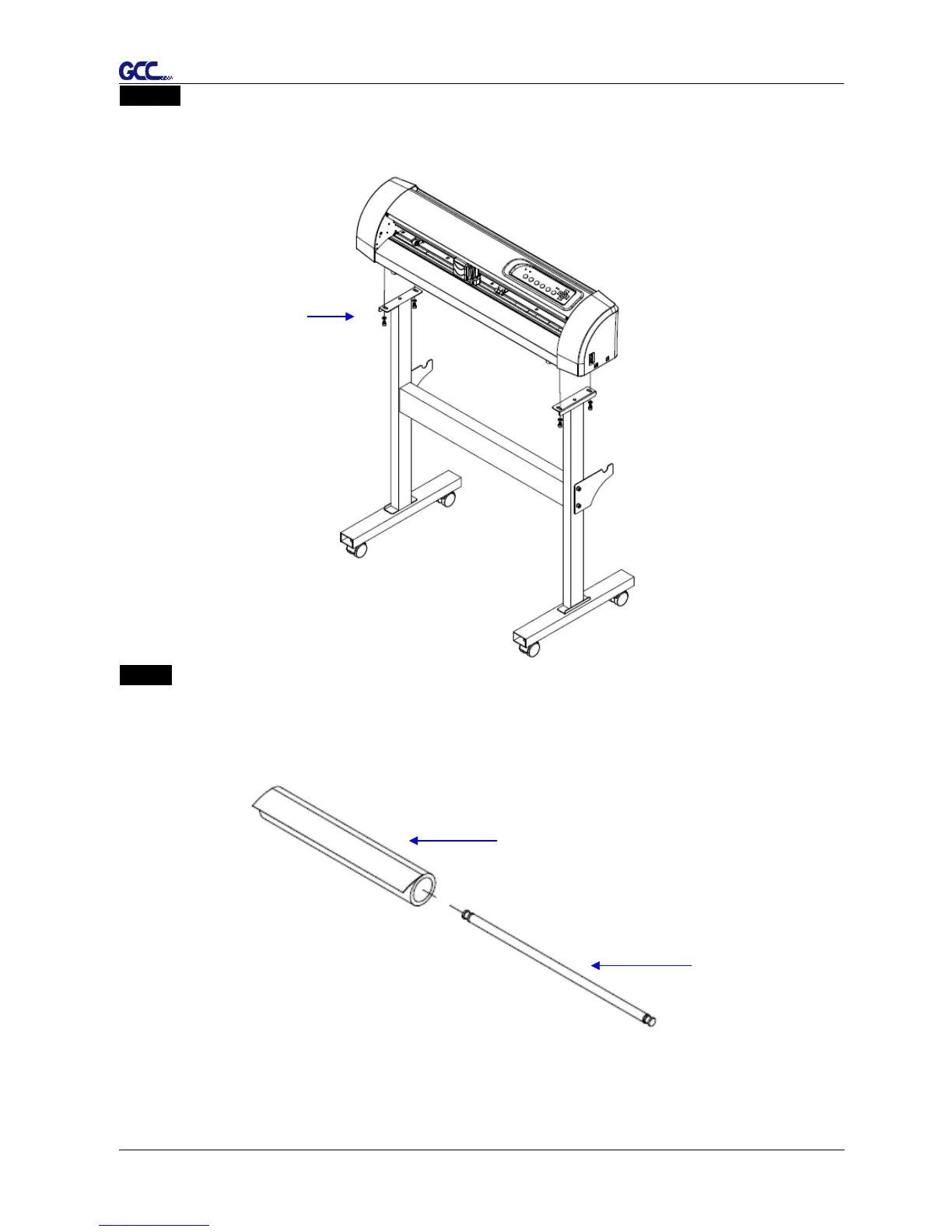

Position the stand under the plotter, and tighten the plotter onto vertical stands with screw-S
and flat washer. (Figure 2-3)
Step 5
Insert the roll holder into the roll media. (Figure 4)
Figure 4
Figure 3
Screw-S
+ Flat washer
