GCC Technologies AR-24 - The Appearance

AR-24 user manual
General Information 1-2

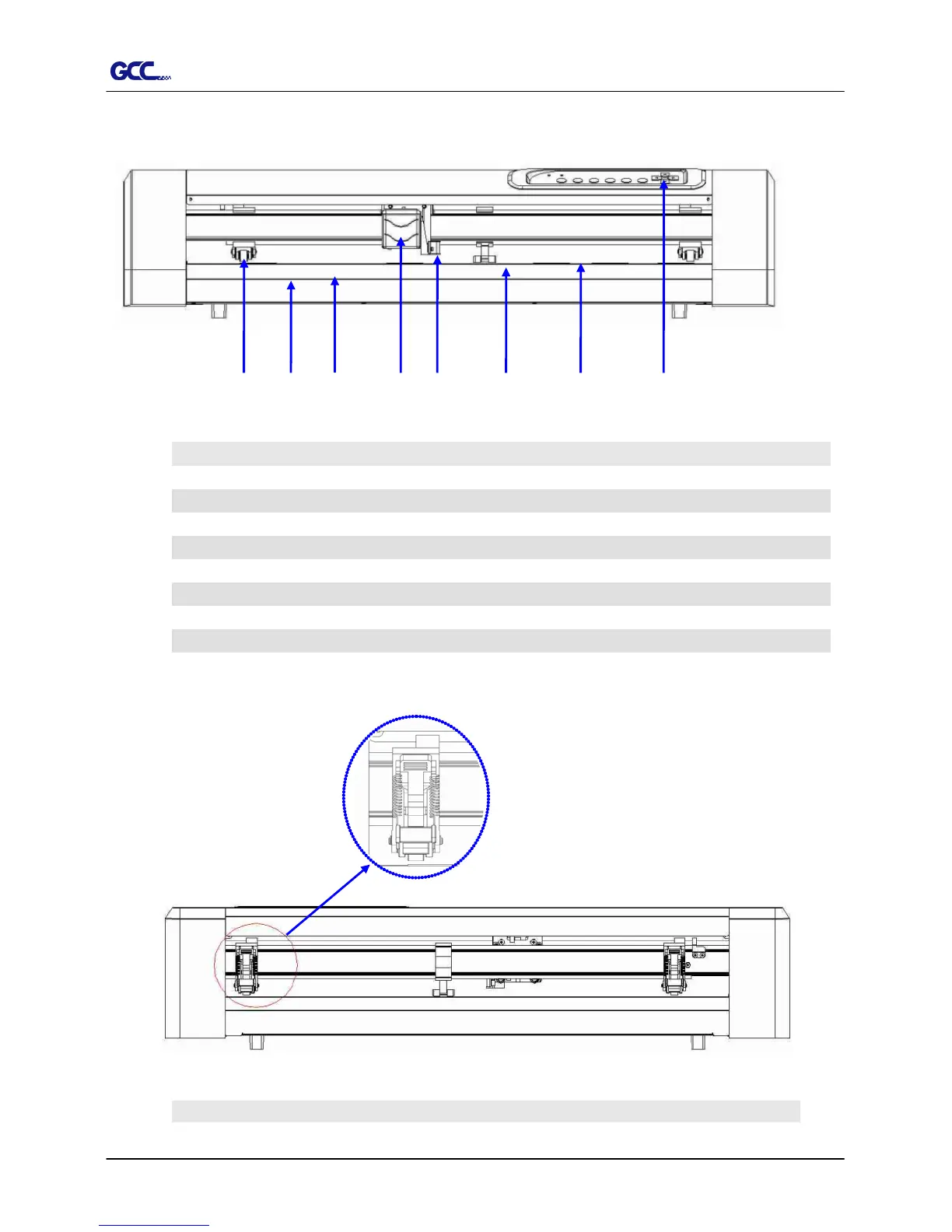

1.3 The Appearance (AR-24)
1.3.1 The Front View
Object
Description
A
Primary Pinch Roller
To help hold the media during cutting.
B
Slicing Groove
To help slice off media.
C
Alignment Ruler
To align media with clear guideline marks
D
Tool Carriage
To help perform cutting job with installed blade or pen.
E
Blade Holder
To hold the blade.
F
Platen
The surface for holding and supporting media in operation.
G
Cutting Pad
To protect blade and plate in operation.
H
Control Panel
To consist of 10 control keys and 2 LED lights.
1.3.2 The Back View
Object
Description
J
Grid Drum
To move media back and forth in operation.
J
【
Figure 1-2
】
【
Figure 1-1
】
G
F
D
C
B
A
E
H
