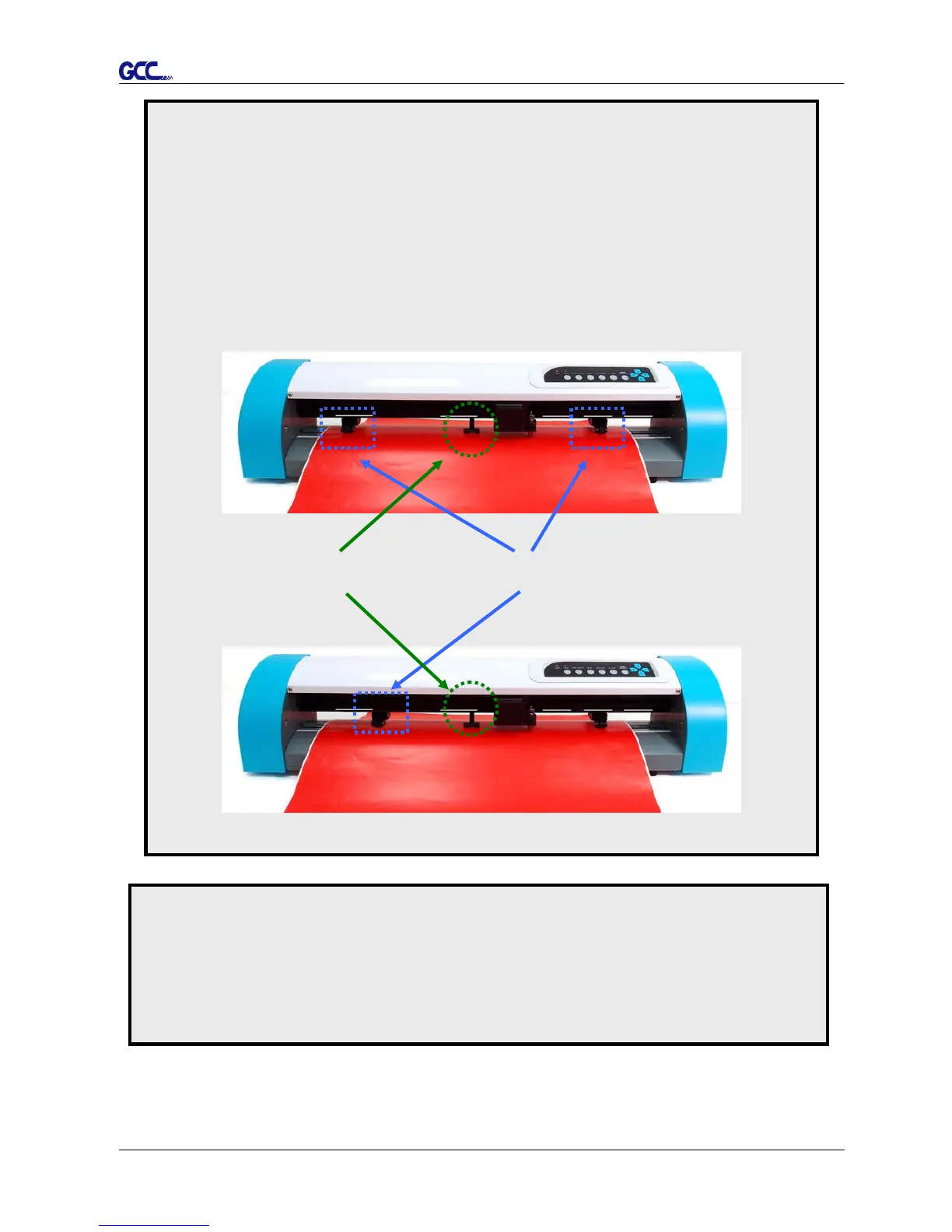

CAUTION!!!
 Make sure the Primary and Secondary pinch rollers are set to right
positions.
 Position the Primary Pinch Rollers at the right and left sides of media.
Position the Secondary Pinch Roller at the center of media.
Figure 2-17
Primary Pinch Roller Secondary Pinch Roller
(O) Correct
Figure 2-18
(X) Incorrect
NOTE:
 Always adjust the position with the pinch rollers released (raised).
 Always reposition the pinch roller by holding the center of the pinch roller and
move it from the REAR end of the machine. (Figure 2-19)
 DO NOT move the pinch roller by holding its FRONT rubber roller (Figure 2-20).
