GCC Technologies AR-24 - Die Cut Function

AR-24 user manual
Operation
3-7

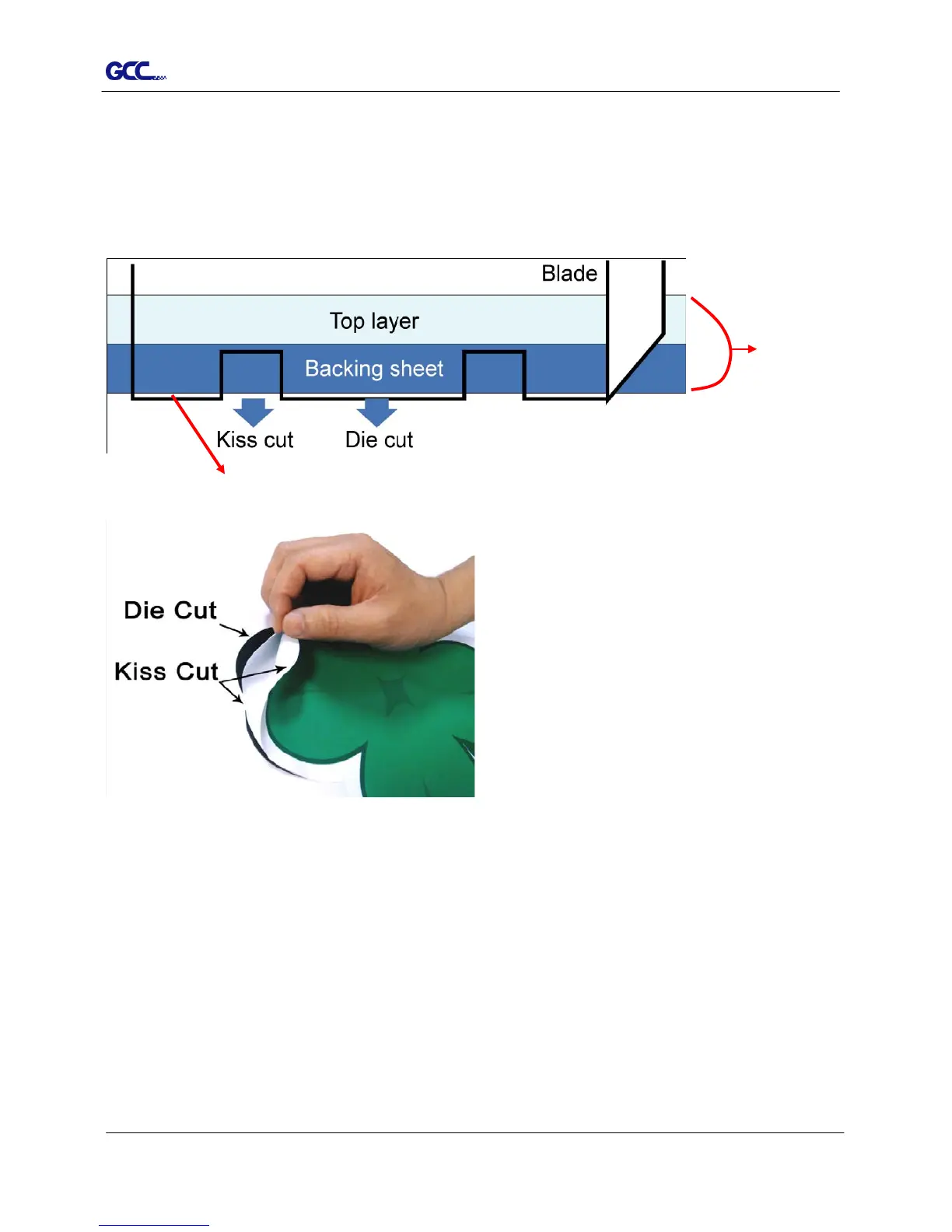

Figure 3-7
Figure 3-8
The Die Cut function must be activated with the Kiss Cut function to avoid the falling of
cut-through materials and material jam beneath the carriage. Die Cut helps you to cut through
the backing of the material while Kiss Cut cuts through only the top layer but not the backing.
This will leave only tiny bits of the backing attached to the top layer, creating complete individual
patterns with backing sheets (see figure 3.7 and 3.8).
To activate the Die Cut function, go to “Option”, tick “Die Cut”, and enter the amount you wish
for the “Length” and “Force” of both Die Cut and Kiss Cut, then click “OK” (see figure 3.9).
Cutting line
Vinyl
